    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 5

    FGR-H

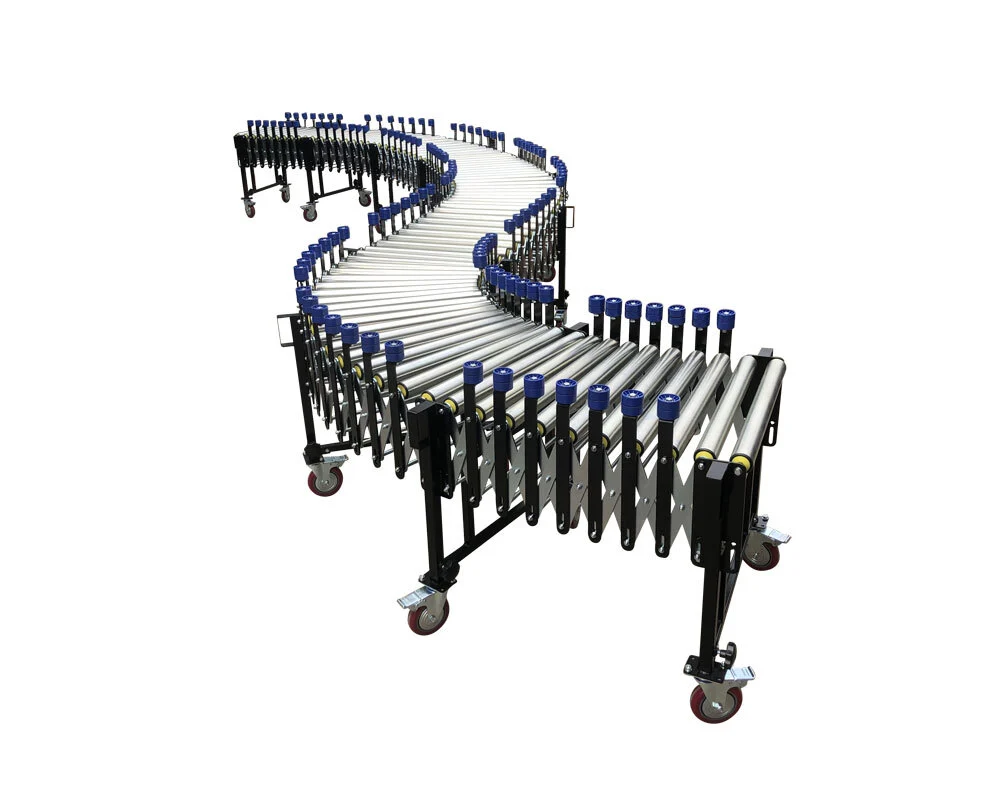

    Heavy Duty Flexible Gravity Roller Conveyor is an robust type with load capacity of 100KG per meter.It can be extended or bent,and compressed when not in use.With optional side guide wheels to prevent goods from falling off.

    TECHNICAL PARAMETERS

    Roller

    Φ 50*1.5mm galvanized steel roller, Max. gap 130mm center to center

    Telescopic Frame

    L270*5mm reinforced side links with nice load capacity

    Adjustable Legs

    32*32*2mm square steel tubes,powder coated

    Caster

    5" high quality swivel lockable polyurethane casters

    Optional Width

    600~1000mm

    Optional Height

    600-800mm,700-1000mm,800-1200mm

    Cargo Type

    only can transport flat bottom cartons/boxes

    Combination

    quickly and easily joint two or more units by hooks



    MODEL LIST

    Model

    Open Length (mm)

    Close Length (mm)

    Width (mm)

    AdjustableHeight (mm)

    Max.Load (kg/m)

    FGR-H4
    48002040600,800700-1000100
    FGR-H660002550600,800700-1000100
    FGR-H772003060600,800700-1000100
    FGR-H884003570600,800700-1000100
    FGR-H996004080600,800700-1000100
    FGR-H10108004590600,800700-1000100
    FGR-H12120005100600,800700-1000100
    FGR-H13132005610600,800700-1000100
    FGR-H14144006120600,800700-1000100
    FGR-H15156006630600,800700-1000100


    SHOW DETAILS

    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 6
    Adopt Φ50 galvanized steel rollers
    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 7
    Adjustable height support legs.
    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 8
    Each legs with handle for easy movement of the conveyor.
    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 9
    Use wheels as guardrail to keep goods from falling off.
    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 10
    T5mm telescopic sheet.
    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 11
    Easy to expand and bend.
    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 12
    Mobile on 5” heavy duty swivel PU wheels.

    Application 1

    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 13
    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 14
    Wholesale Heavy-Duty Flexible Gravity Roller Conveyor | FGR-H 15
