Plastic Top Chain Conveyor with Aluminum Frame
5.0
Start Port:
Sea freight
MOQ:
1 set
Model:
SLAT CONVEYOR
Load Capacity:
FPC
Lead_Time:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Condition:New
Material:Plastic
Structure:Chain Conveyor
Place of Origin:China
Brand Name:YiFan
Power:0.55kw per pcs
Warranty:1 Year
Width or Diameter:103mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Other
Chain:103mm width POM material
Conveyor Length:3m-10m
Variable Speed:10-20m/min
Load Capacity:15KG/m
After Warranty Service:Video technical support, Online support
Local Service Location:None
After-sales Service Provided:Free spare parts
Product Overview

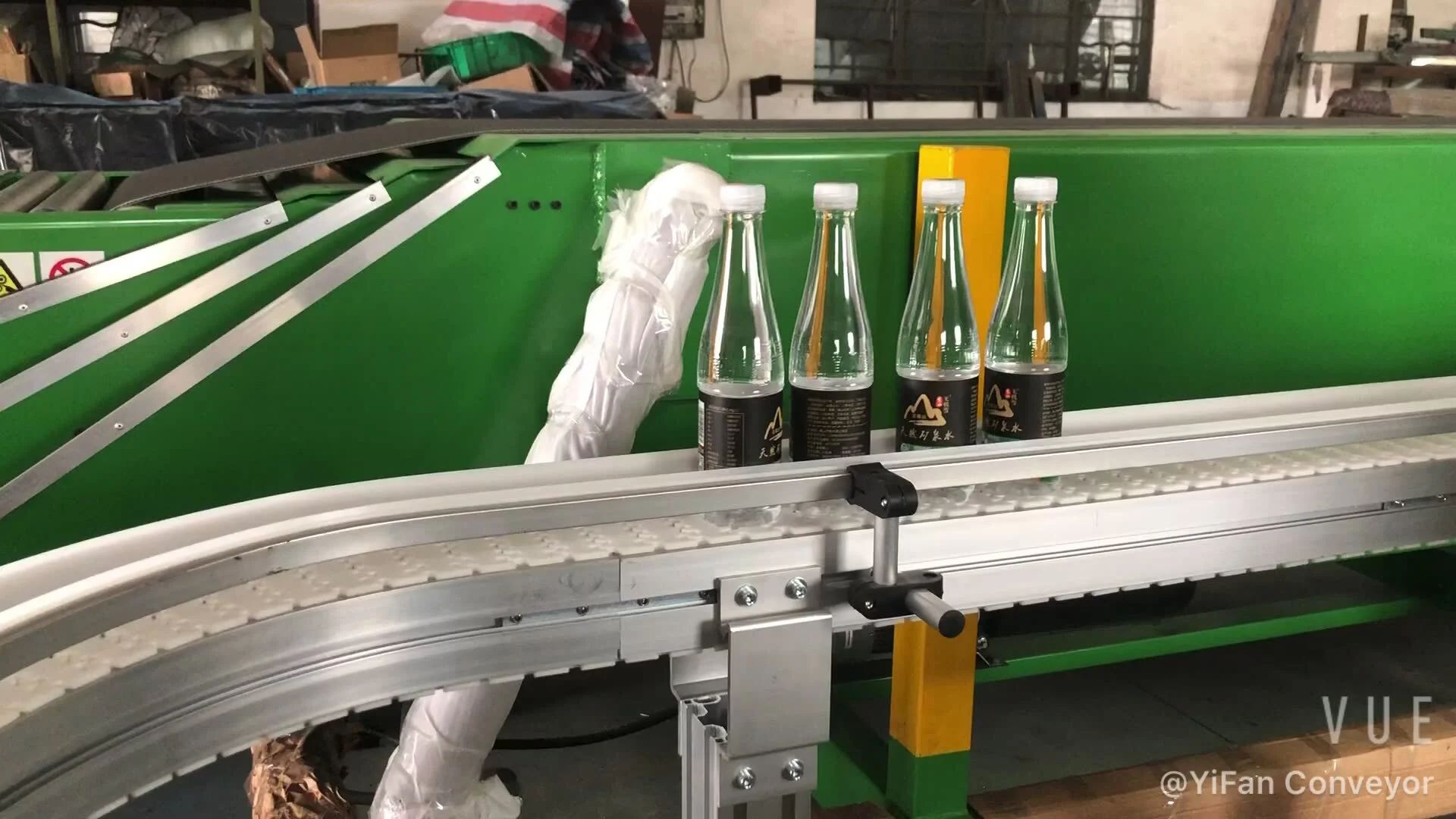

FPC Plastic Top Chain Conveyor in Aluminum Frame
Slat Chain Conveyor is a totally non-standard conveyor, which can be tailor-made according to specific purposes. The steel slat chain conveyor owns great load capacity up to 800kg/m because of the solid structure of big-pitched chain as the conveying medium and plastic, steel or stainless steel slat as the conveying surface. With simple structure, nice figure, stable running and easy maintenance, it is widely chosen by beverage/beer industry, food industry, medicine industry, printing industry and cosmetics industry. Main conveying forms: linear transmission, curve transmission, upgrading transmission, etc. Optional frame: painted powder coated, steel, stainless steel.
Why Choose plastic chain conveyor For Your Production Line?
Many factory owners face these headaches with traditional metal slat conveyors:
Heavy carbon steel frame easy to rust in humid food/pharma workshops, hard to clean;
Metal chain scratches bottles, cartons and fragile cosmetic packaging;
Loud running noise disturbs workshop night shifts;
Fixed layout cannot match curved filling, labeling, packaging lines;
High maintenance cost, easy corrosion from detergent, acid & alkaline cleaning liquid.
Our aluminum extrusion frame plastic chain conveyor perfectly solves all above pain points: lightweight anti-rust aluminum frame, food-grade POM silent chain, freely custom straight/curve/incline structure, chemical-resistant & washable surface, ultra-low maintenance cost.
Heavy carbon steel frame easy to rust in humid food/pharma workshops, hard to clean;
Metal chain scratches bottles, cartons and fragile cosmetic packaging;
Loud running noise disturbs workshop night shifts;
Fixed layout cannot match curved filling, labeling, packaging lines;
High maintenance cost, easy corrosion from detergent, acid & alkaline cleaning liquid.
Our aluminum extrusion frame plastic chain conveyor perfectly solves all above pain points: lightweight anti-rust aluminum frame, food-grade POM silent chain, freely custom straight/curve/incline structure, chemical-resistant & washable surface, ultra-low maintenance cost.
Technical Parameters
|
Chain
|
103mm width POM material
|
|
Conveyor Length
|
3m-10m
|
|
Variable Speed
|
10-20m/min
|
|
Motor
|
SEW brand, 0.55kw per pcs
|
|
Load Capacity
|
15KG/m
|
|
Frequency Inverter
|
Delta
|
|
Frame and Legs
|
Aluminum
|
|
Voltage
|
220V/380V
|
Installation & Daily Maintenance Guide
Simple Installation Steps
- Splice aluminum frame profiles according to required length, lock support legs;
- Install POM top chain and drive sprocket, connect SEW motor & Delta inverter;
- Adjust horizontal level of conveyor, connect power supply, test speed regulation;
- Add optional side guard rails and product stoppers as production demand.
Low-Cost Daily Maintenance Tips
- POM plastic chain self-lubricating, only clean surface with water & neutral detergent regularly, no oil needed;
- Wipe aluminum frame weekly to remove beverage, chemical residue, avoid long-term stain corrosion;
- Check motor & inverter cable connection monthly, prevent loose wire failure;
- Spare parts supply: we provide free replacement rollers, chain sections within 1-year warranty.
Successful Project
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Is the POM plastic chain food safe for direct food contact?
YIFAN: Yes, our standard 103mm top chain is FDA-compliant POM material, safe for beverage, bakery, dairy production lines; food-grade white POM chain is optional.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Is the POM plastic chain food safe for direct food contact?
YIFAN: Yes, our standard 103mm top chain is FDA-compliant POM material, safe for beverage, bakery, dairy production lines; food-grade white POM chain is optional.
Can this conveyor make 90-degree U-shaped curved conveying lines?
YIFAN: Yes, we support side-flexing plastic top chain, custom curved aluminum frame to realize corner transmission without extra transfer equipment.
YIFAN: Yes, we support side-flexing plastic top chain, custom curved aluminum frame to realize corner transmission without extra transfer equipment.
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.
How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
Ningbo YiFan Conveyor Equipment Co.，Ltd has international standard of automated production lines. It is widely used in industries like the express, food & beverage, health & beauty, home appliances, etc. Taking Truck Loading Conveyor into serious consideration is the key to keep YiFan Conveyor ahead in this market. It is widely used in industries like the express, food & beverage, health & beauty, home appliances, etc.
