    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Heat Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V, 220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L4700*W600*H700/2500 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Gearbox, Frequency Inverter
    Weight (KG):800 kg
    Belt Width:600mm
    Belt Material:anti-skiding green PVC belt
    Front Tongue:4.2m powered roller
    Adjustable Speed:10-20m/min
    Adjustable Height:700-2500mm
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:6" heavy duty swivel lockable PU casters
    Packing Size:L4900*W1240*H1625mm
    Video Description
    Product Overview

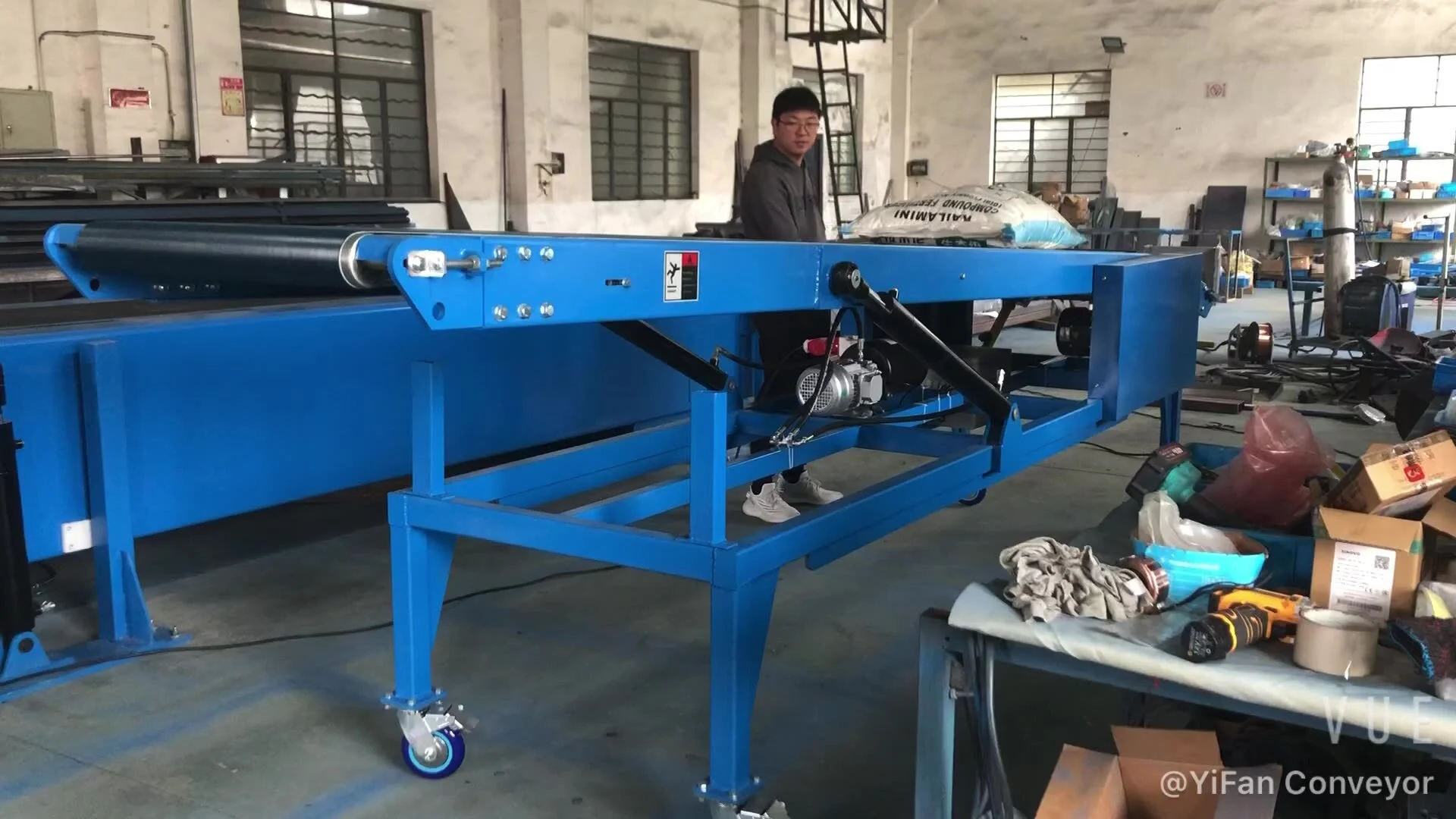

    TLC-P600 TRUCK LOADING CONVEYOR

    Automatic trailer,van,truck,container loading and unloading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.The Truck Loading Conveyor is consist of two parts: Front Flexible Tongue and Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.
    Part 1 4.2m extendable powered roller conveyor 700-1000mm adjustable height 10-18m/min adjustable speed independent control box two way operation Part 2 Inclined Belt Conveyor 700-2500mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 7
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 9
    Front Elevation
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 11
    Left elevation
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 13
    Right Elevation
    Model List
    Model
    Belt Width
    (mm)
    L1(mm)
    L2(mm)
    L3(mm)
    L(mm)
    H1(mm)
    H2(mm)
    TLC-P600
    600
    900
    3700
    1800
    4200
    700
    700-2500
    TLC-P800
    800
    900
    3700
    1800
    4200
    700
    700-2500
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 15
    Details Images
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 17
    With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 19
    Control panel covered by a lockable door
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 21
    Flexible conveyor bracket and main conveyor are joint by screws
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 23
    Mobile on lockable swivel casters
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 25
    Screw lift system
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 27
    With two side guards
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 29
    Belt tighten system
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 31
    PVC anti-skiding belt
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 33
    Lock the foot to be more stable when rise up
    Successful Project

    2012 Project In Mombasa,Kenya

    Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 35
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 37
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 39
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 41

    2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

    We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 43
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 45
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 47
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 49

    2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

    Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 51
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 53
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 55
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 57

    2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

    Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 59
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 61
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 63
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 65

    2016 Project In Kenya Cartons loading unloading container/trucks/trailers

    Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 67
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 69
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 71
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 73

    2016 Project In Kenya Bags stacking mobile belt conveyor

    Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 75
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 77
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 79
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 81
    Packing and Shipping
    One 20ft container can load 2nos of TLC-P600
    One 40ft container can load 4nos of TLC-P600
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 83
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 85
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 87
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 89
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 91
    Installation Instructions
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 93
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 95
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 97
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 99
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 101
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 103
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 105
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 107
    Similar Products
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 109
    TLC-G600
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 111
    TLC-S600
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 113
    TLC-F600
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 115
    TLC-600
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 117
    TLC-W800
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 119
    TLC-L600
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 121
    TLC-E600
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 123
    TLC-600
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 125
    CBLC-600
    Company Profile
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 127
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 129
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 131
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 133
    Carrying Machine Truck Loading and Unloading Automatic Stacker Conveyor 135
    FAQ

    Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

    How long is the production time?
    YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

    What is the MOQ?
    YIFAN: 1 unit

    Can your company provide OEM & ODM service
    YIFAN: yes

    Can you do customized conveyors?
    YIFAN: yes

    Do you offer installation service abroad?
    YIFAN: yes

    What is the payment terms?
    YIFAN: T/T,LC,

    What is the delivery port?
    YIFAN: Ningbo/Shanghai

    How many years have you been in this industry?
    YIFAN: 10 years

    What is the HS code?
    YIFAN: 84283300,84283920,84283990

    Is YIFAN a trading company or factory?
    YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

    Which industry can your conveyors be applied to?
    YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
    YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

    This product has achieved great success in the global market and will be widely used. Its side plates are made of high-quality steel, ensuring maximum strength and durability. This product wins numerous customer's trust with its huge economic effectiveness. Its side plates are made of high-quality steel, ensuring maximum strength and durability.
