Truck Loading Conveyor Made In China

TLC-P600
5.0
Start Port:
Ningbo
Payment:
TT
MOQ:
1 set
Model:
TLC-P600
Delivery time:
25 days
Certification:
CE
design customization

    oops...!

    no product data.

    Go to homepage

    The automatic loading and unloading conveyor TLC-P600 is a cutting-edge solution for efficiently loading and unloading trailers, vans, trucks, and containers in various logistics and warehouse operations. This conveyor system is designed to streamline the handling of goods, saving time and labor costs while improving operational efficiency. With its automated features, the TLC-P600 conveyor can easily move goods in and out of vehicles precisely and quickly.


    Equipped with advanced technology, this conveyor system ensures smooth and reliable transportation of cargo, reducing the risk of damage during loading and unloading processes. Its versatility allows for seamless integration into different loading environments, making it a versatile solution for businesses seeking to optimize their logistics operations. The TLC-P600 automatic loading and unloading conveyor is a dependable and innovative tool that enhances productivity and workflow in transportation and distribution scenarios.

    AUTOMATIC TRAILER, VAN, TRUCK, CONTAINER LOADING AND UNLOADING CONVEYOR TELESCOPIC BELT CONVEYOR

    Automatic trailer, van, truck, container Loading and Unloading Conveyor is one of the most popular lorry loaders. It is extremely flexible and easily move into position on braked swivel castors. Reply on high quality, competitive price, short delivery time and long life span, we have exported this machine to many countries ,such as UK, America, France, Russia, Romania, Jordan, Qatar, Kenya, South Africa, Pakistan, Vietnam, Philippines, etc.

    loading and unloading conveyor
    loading and unloading conveyor

    PRODUCT PARAMETERS

    Truck Loading Conveyor Made In China 8

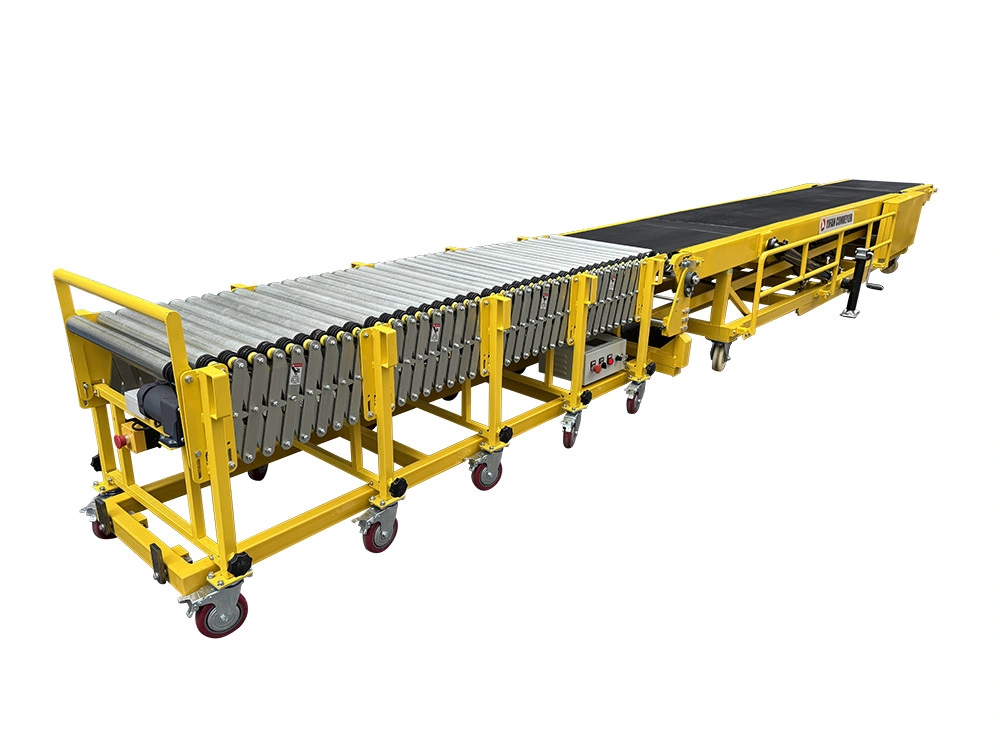

    The conveyor consist of two parts

    Part 1: Inclined Belt Conveyor

    Part 2: Flexible Powered Roller Conveyor

    Belt Width

    600mm

    Rollers

    Φ50*T1.5mm galvanized steel rollers

    Belt Type

    T=5mm rough top PVC belt

    Motor

    60W/90W

    Adjustable Height

    700-2500mm

    Adjustable Speed

    10-18m/min, two way

    Adjustable Speed

    10-20m/min

    Load Capacity

    50kg/m

    Load Capacity

    50kg/m

    Effective Width

    600mm

    Belt Driven Motor

    1.5kw

    Extendable Length

    1800-4200mm

    Conveyor Lift Motor

    2.2kw

    Adjustable Legs

    30*30*2mm galvanized steel tubes or paint in black

    Frequency Inverter

    Delta

    Side Frame

    X shape reinforced galvanized or painted steel plates

    Caster

    Φ125mm heavy duty lockable swivel PU casters

    Castors

    5'' high quality swivel PU casters with brakes

    Frame Construction

    Powder coated in BLUE RAL 5015

    Voltage

    220V, single phase, 50Hz/380V, three phase, 50Hz

    Power Supply

    220V, single phase, 50Hz/380V, three phase, 50Hz

    Control Panel

    Forward/Stop/Reverse, Emergency Stop, When rollers fully opened, carton length should be more than 280mm

    Truck Loading Conveyor Made In China 9

    SHOW DETAILS

    With extra supporting leg to help fix the conveyor
    With extra supporting leg to help fix the conveyor
    Slave conveyor with adjustable height (2)
    Slave conveyor with adjustable height
    Front Head with 4 (2)
    Front Head with 4
    Front conveyor can work independently
    Front conveyor can work independently
    Control Box:Load and Unload,Up and Down,Stop, Emer
    Control Box:Load and Unload,Up and Down,Stop, Emer
    5mm Thick Rough Top PVC Belt
    5mm Thick Rough Top PVC Belt

    Truck Loading Conveyor has many features:

    1.Cargo loading and unloading operations can be carried out without dedicated loading docks.

    2.The portable truck loading conveyor is capable of extending into shipping containers while keeping a stable conveying gradient.

    3.It effectively boosts operational productivity, eases workers’ physical workload, and cuts down overall operational expenses.

    4.The equipment is manufactured with sophisticated craftsmanship, produced under standardized modern management, and designed for secure and stable operation.

    5.As a mobile truck loading conveyor, it can be freely relocated to any loading or unloading station on site.


    YiFan Conveyor is one of the best truck loading conveyor manufacturers in China. We use the advanced production equipment and manufacturing technology to produce the truck loading conveyor system. Our years of expertise and experience is applied in making a distinctive conveyor solution to cater to our customers' every needs. 

    Application 1

    Truck Loading Conveyor combine with Flexible Powered Roller Conveyor for loading and unloading cartons directly from warehouse to containers.

    Truck Loading Conveyor Made In China 16
    WechatIMG13593详情图
    WechatIMG13593详情图
    With hydraulic lift system~1
    With hydraulic lift system~1
    WechatIMG13593详情图
    WechatIMG13593详情图
    IMG_8447
    IMG_8447

    Application 2

    Truck Loading Conveyor combine with Flexible Powered Roller Conveyor for loading and unloading Oil Cans directly from warehouse to containers.

    Truck Loading Conveyor Made In China 21

    Application 3

    Truck Loading Conveyor combine with for loading and unloading cartons directly from warehouse to containers.Truck Loading Conveyor combine with Flexible Powered Roller Conveyor for loading and unloading cartons directly from warehouse to containers.

    Truck Loading Conveyor Made In China 22
    WechatIMG13593详情图
    WechatIMG13593详情图
    With hydraulic lift system~1
    With hydraulic lift system~1
    WechatIMG13593详情图
    WechatIMG13593详情图
    IMG_8447
    IMG_8447

    Application 4

    Truck Loading Conveyor combine with Vertical Lifting Conveyor to lift tea bags from 2nd floor to 1st floor, then transport into trucks.

    Truck Loading Conveyor Made In China 27

    Truck Loading Conveyor Faq

    Q1: Is a loading dock mandatory when using this truck loading conveyor for cargo handling?

    A1: No dedicated shipping dock is required to complete loading and unloading tasks. The conveyor can work normally without dock facilities.


    Q2: Can the conveyor extend into shipping containers while keeping a fixed incline?

    A2: Yes. It can stretch deep into containers and maintain a stable conveying slope throughout operation.


    Q3: What benefits can this portable loading conveyor bring to your warehouse operations?

    A3: It greatly lifts overall work efficiency, mitigates manual labor intensity, and cuts down comprehensive operational costs for your facility.


    Q4: What advantages does this equipment have in production and operation?

    A4: Our conveyors are manufactured with sophisticated craft under standardized modern management systems, featuring stable and secure running performance.


    Q5: Is this truck loading conveyor flexible to move around different work zones?

    A5: Absolutely. Designed with high mobility, the portable loader conveyor can be transferred to any loading or unloading station on demand.
