20ft Container Loading Unloading Belt Conveyor System
CBLC-600
20FT CONTAINER LOADING UNLOADING CONVEYOR
CBLC-600 is a senior version of model TLC-P600.The front tongue can extend out to be 7.2m long. Except the front tongue, the structure is also stronger than other models.YiFan container loading conveyor CBLC‑600 is heavy‑duty belt conveyor for 20ft container loading and unloading. It features a 7.2‑meter extendable tongue, combined inclined belt and flexible powered roller conveyor, max load capacity 50 kg/m. CE certified, hydraulic height adjustment, dual‑speed control. MOQ 1 set, 30‑day lead‑time, customisable belt width 600mm / 800mm for cartons, bags and boxed goods.
What are core advantages of CBLC‑600 container loading unloading conveyor?
Container loading conveyor CBLC‑600 integrates inclined belt plus flexible powered roller conveyor; 7.2m extended tongue, hydraulic lifting, anti‑slip PVC belt, heavy‑duty mobile casters, emergency‑stop for container box handling.
- 7.2 m long extendable front tongue for deep access inside 20ft container
- Combined inclined belt conveyor + flexible powered roller conveyor all‑in‑one system
- Hydraulic unit for height adjustment; Delta inverter & Schneider main electric components
- 3 mm anti‑slip green PVC belt; load capacity up to 50 kg/m
- Mobile lockable PU casters, easy to relocate within warehouse
- Two‑way adjustable speed; emergency‑stop button for operation safety
- CE certified; two optional belt width:600 mm / 800 mm
What industries & cargo is CBLC‑600 suitable for?
CBLC‑600 fits food & beverage, logistics, warehouse for cartons, bags, boxed goods, mainly for 20ft container loading‑unloading operations.
- Applicable cargo: cartons, cases, bags, box‑packed goods
- Target industry: food & beverage, logistics warehouse, distribution center, manufacturing factory
Note: This model is optimized for 20‑foot container, contact sales for 40ft container solution.
PRODUCT PARAMETERS
Part 1: Inclined Belt Conveyor | Part 2: Flexible Powered Roller Conveyor | ||
Belt Width | 600mm or 800mm | Rollers | 600mm or 800mm Φ50*T1.5 galvanized steel rollers |
Belt Type | 3mm anti‑skidding green PVC belt | Roller dirven belt | High quality poly V-belt |
Load height in vehicle | 1600-1700mm | Motor | 90W or 120W, total 7nos |
| Discharge height outside vehicle | 850mm | Adjustable Speed | 10-18m/min, two way |
Adjustable Speed | 10-20m/min | Adjustable Height | 600-800mm |
Load Capacity | 50kg/m | Load Capacity | 50kg/m |
Belt Driven Motor | 1.5kw | Flexible Frame | 272*5mm X shape side links, galvanized or painted black |
Hydraulic Power Unit | 1.5kw | Supporting Legs | 32*32*2mm steel tubes, painted in black |
Frequency Inverter | Delta | Castors | 5'' high quality swivel PU casters with brakes |
Main Electric Elements | Schneider | Voltage | 220V, single phase,50Hz/380V, three phase,50Hz |
Heavy Duty Caster | Φ200mm lockable swivel PU casters | Control Panel | Forward/Stop/Reverse, Emergency Stop |
Frame Construction | carbon steel, painted in blue RAL 5015 | Power Supply | 220V, single phase,50Hz/380V,three phase,50Hz |
Power Supply | 220V, single phase,50Hz/380V,three phase,50Hz | - | - |
SHOW DETAILS
How to set up?
The correct installation of the conveyor system is of vital importance for ensuring the efficient operation of the equipment, extending its service life, guaranteeing production safety, and reducing maintenance costs.The following are the specific manifestations of its importance: 1. Ensure operational efficiency and performance;2. Extend the service life of the equipment;3. Ensure operational safety;4. Reduce maintenance costs and downtime losses;5. Adapt to the requirements of the production environment
Our Cases - what we finished

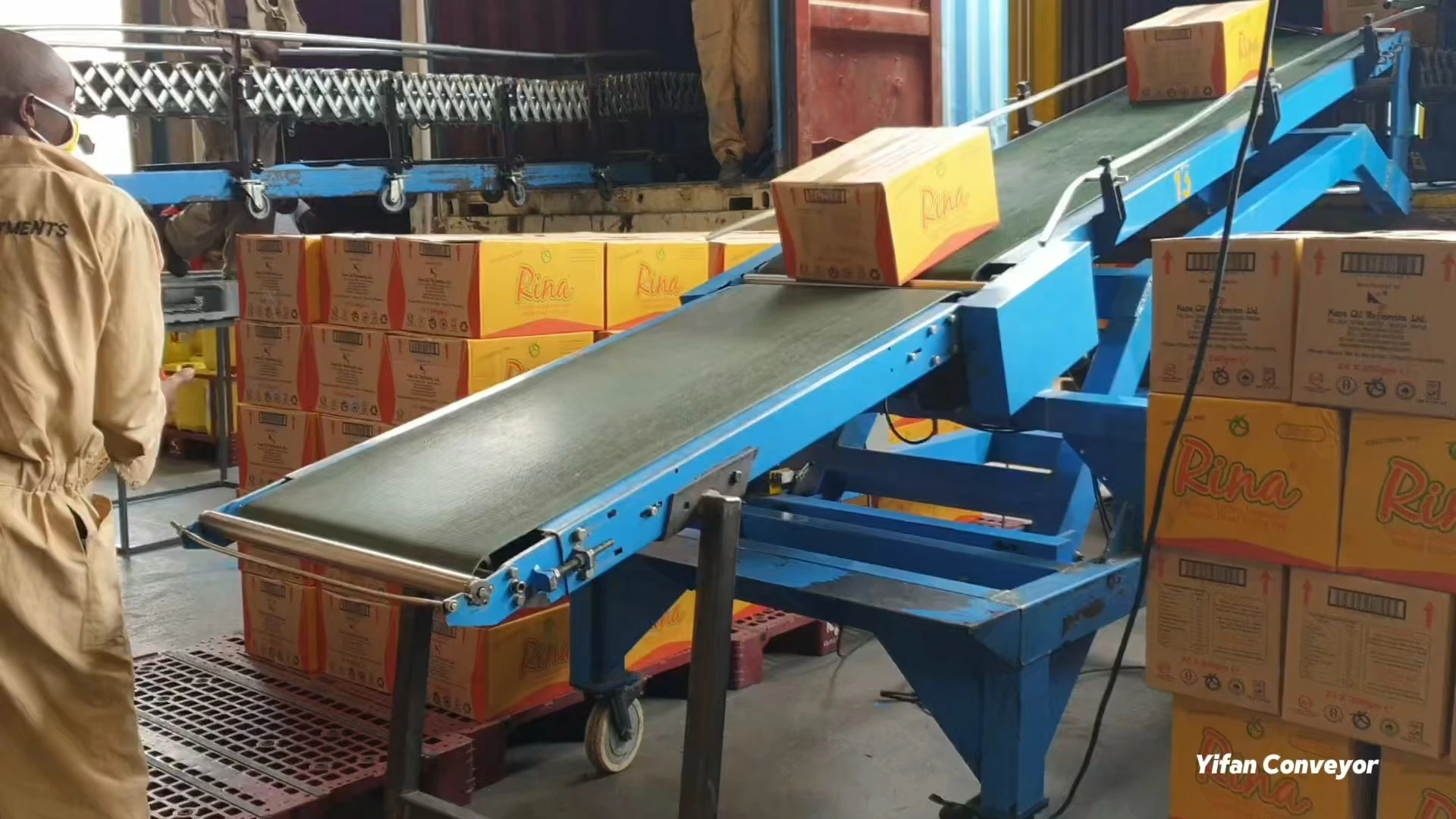

Our 20ft Container Loading Unloading Belt Conveyor System is perfect for the food and beverage industry. It can efficiently transport barrels, bags, cartons, and more, making loading and unloading tasks quick and easy.
Faq
1. Q：Is unloading container conveyor CBLC‑600 fit for 40ft container?
A：Unloading container conveyor CBLC‑600 is optimized for 20ft container. Please contact our sales team for dedicated 40‑foot container conveyor solution.
2. Q：What cargo can this container unloading conveyor handle?
A：Mainly for cartons, boxed goods and bags. Not suitable for loose bulk material.
3. Q：Can I choose different belt width?
A：Yes, 600 mm and 800 mm belt width are optional for CBLC‑600.
4. Q：What is MOQ and production lead‑time?
A：MOQ is 1 set. Standard production lead‑time is 30 working days.
5. Q：What certification can you provide?
A：CBLC‑600 is CE certified; certificate documents can be provided for import clearance.
6. Q：Do you supply spare parts after purchase?
A：Yes, we supply replaceable spare‑parts including belt, motor, casters and rollers.
7. Q：Does the machine need concrete foundation for installation?
A：No special foundation required; the unit is mobile with brake casters.
