Medium-Duty Flexible Gravity Steel Roller Conveyor with square legs | FGR-M 1

Medium-Duty Flexible Gravity Steel Roller Conveyor with square legs | FGR-M 2

Medium-Duty Flexible Gravity Steel Roller Conveyor with square legs | FGR-M 3

Medium-Duty Flexible Gravity Steel Roller Conveyor with square legs | FGR-M 4

Medium-Duty Flexible Gravity Steel Roller Conveyor with square legs | FGR-M 5

Medium-Duty Flexible Gravity Steel Roller Conveyor with square legs | FGR-M

Inquiry

Write a Review

FGR-M

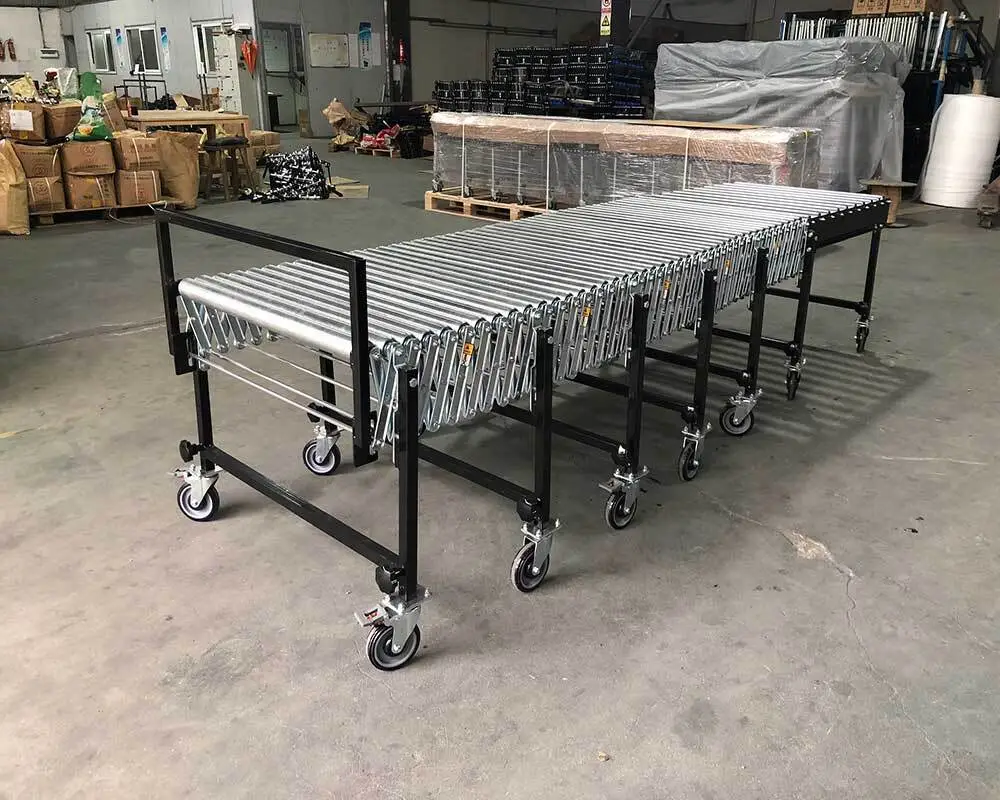

MEDIUM DUTY FLEXIBLE GRAVITY STEEL ROLLER CONVEYOR

Medium Duty Flexible Gravity Steel Roller Conveyor is designed especially to convey flat base loads,such as different sized boxes,cases and cartons,etc.It can be expanded if you require a longer system or bent into curves or even compacted for better storage when not in use.Whats more,this conveyor is very easy to quick manoeuvre in or out of trucks for faster,safer,easier loading and unloading materials.

TECHNICAL PARAMETERS

Roller	Φ 50*1.5mm galvanized steel roller, Max. gap 130mm center to center
Frame	3.5mm thickness galvanized steel plates with better load
Legs	With adjustable height
Caster	Φ 100mm high quality swivel lockable polyurethane casters

MODEL LIST

Model	Open Length	Close Length	Effective Width	Adjustable Height	Load Capacity	Roller Dia	Roller Material
FGR-M4.2	4200mm	1700mm	600mm	700-1000mm	50kg/m	50mm	galvanized steel
FGR-M5.2	5200mm	2100mm	600mm	700-1000mm	50kg/m	50mm	galvanized steel
FGR-M6.2	6200mm	2500mm	600mm	700-1000mm	50kg/m	50mm	galvanized steel
FGR-M7.2	7200mm	2900mm	600mm	700-1000mm	50kg/m	50mm	galvanized steel
FGR-M8.2	8200mm	3300mm	600mm	700-1000mm	50kg/m	50mm	galvanized steel
FGR-M9.2	9200mm	3700mm	600mm	700-1000mm	50kg/m	50mm	galvanized steel
FGR-M10.2	10200mm	4100mm	600mm	700-1000mm	50kg/m	50mm	galvanized steel
