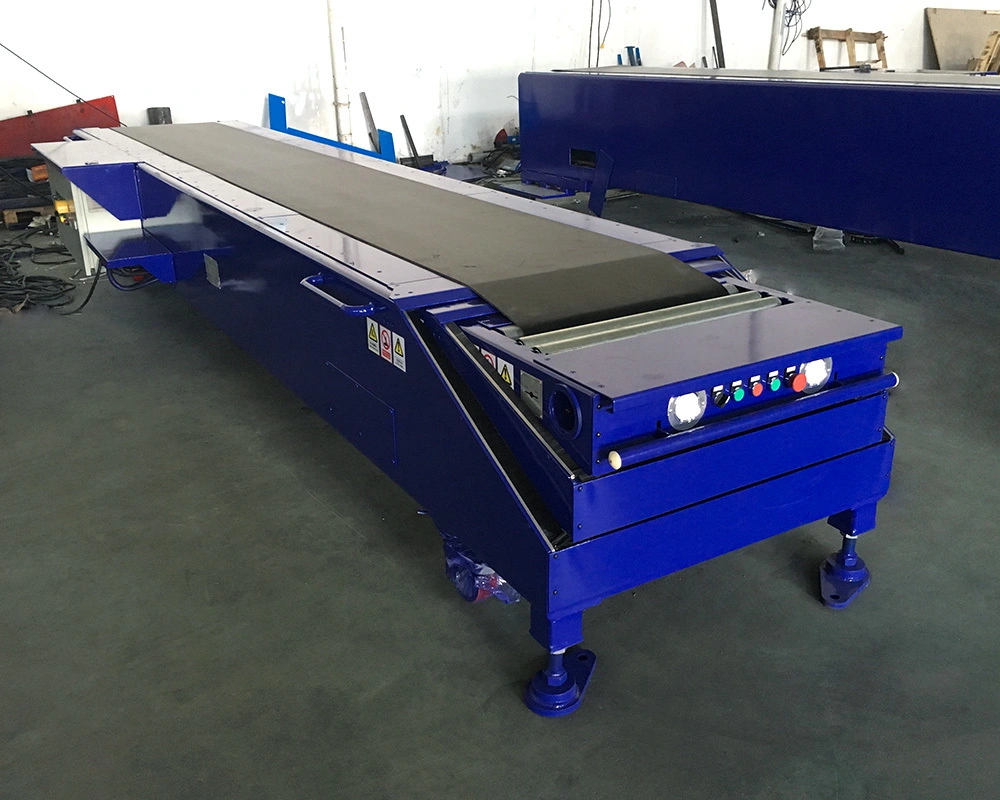

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 1

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 2

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 3

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 4

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600

Start Port:

Ningbo/Shanghai

Payment:

T/T

MOQ:

1 set

Model:

FTBC-3S-4/5.4-600

Delivery time:

30 days

Certification:

Main conveyor components with CE

Inquiry

Write a Review

FTBC-3S-4/5.4-600

20FT CONTAINER LOADING UNLOADING TELESCOPIC BELT CONVEYOR

Telescopic Belt Conveyor is automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.

PRODUCT PARAMETERS


Fixed Length	4m
Extension Length	5.4m
Total Length	9.4m
Belt Spec	600mm width PVC belt
Belt Top Height	800mm
Operation Direction	Forward & reverse
Max. Load Capacity	50kg/m
Belt Driven Motor	1.5kw, SEW
Telescopic Motor	0.75kw, SEW
Hydraulic Power Pack	1.5kw
Machine Total Power	3.75 kw
Main Electric Components	Schneider
Telescopic Chain	Donghua, Hangzhou
Power Cord Length	10m
Standard Color	BLUE, RAL5005
Voltage	380V, three phase, 50Hz

SHOW DETAILS

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 7

High quality PVC belt

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 8

Each section with brushes to avoid small items fall inside the machine.

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 9

The conveyor need to be fixed on the ground by expansion bolt before extend out.

Application 1

This conveyor can be used in warehouse which with loading bay. It is very convenient to unloading all kinds of parcels directly from vehicles to warehouse.

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 10

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 11

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 12

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 13

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 14

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 15

Application 2

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 16

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 17

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 18

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 19

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 20

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 21

20ft Container Loading Unloading Platform Telescopic Belt Conveyor | FTBC-3S-4/5.4-600 22

MODEL LIST


Type	Model No.	A Fixed Length	B Extension	C Total Length	Belt Width	Base Height	Load Capacity	‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍ Belt Speed	Extend Speed
3 Stages	FTBC-3S-4/5.4	4m	5.4m	9.4m	600/800mm	800mm	50kg/m‍‍‍	‍‍‍‍‍‍‍15-30m/min	10m/min
	FTBC-3S-4.5/6	4.5m	6m	10.5m	600/800mm	800mm	50kg/m	‍‍‍‍15-30m/min	10m/min
	FTBC-3S-5/7	5m	7m	12m	600/800mm	800mm	50kg/m	‍‍‍‍15-30m/min	10m/min
	FTBC-3S-5.4/7.3	5.4m	7.3m	12.7m	600/800mm	800mm	50kg/m	‍‍‍‍15-30m/min	10m/min
	‍‍‍‍‍‍FTBC-3S-6/8.5	6m	8.5m	14.5m	600/800mm	800mm	50kg/m	‍‍‍‍15-30m/min	10m/min
	FTBC-3S-6.5/9.4	6.5m	9.4m	15.9m	600/800mm	‍‍‍‍‍‍‍800mm	50kg/m	‍‍‍‍15-30m/min	10m/min
	FTBC-3S-7/9.6	7m	9.6m	16.6m	600/800mm	800mm	50kg/m	‍‍‍‍15-30m/min	10m/min
4 Stages	FTBC-4S-4/7	4m	7m	11m	600/800mm	950mm	50kg/m‍‍‍	‍‍‍‍‍‍‍15-30m/min	10m/min
	FTBC-4S-4.5/8.5	4.5m	8.5m	13m	600/800mm	950mm	50kg/m	‍‍‍‍15-30m/min	10m/min
	FTBC-4S-5/9.5	5m	9.5m	14.5m	600/800mm	950mm	50kg/m	‍‍‍‍15-30m/min	10m/min
	FTBC-4S-5.4/10.3	5.4m	10.3m	15.7m	600/800mm	950mm	50kg/m	‍‍‍‍15-30m/min	10m/min
	FTBC-4S-6/12	6m	12m	18m	600/800mm	950mm	50kg/m	‍‍‍‍15-30m/min	10m/min
	FTBC-4S-6.5/12.8	6.5m	12.8m	19.3m	600/800mm	950mm	50kg/m	‍‍‍‍15-30m/min	10m/min
	FTBC-4S-7/14	7m	14m	21m	600/800mm	950mm	50kg/m	‍‍‍‍15-30m/min	10m/min
5 Stages	FTBC-5S-15/21	15m	21m	36m	600/800mm	1100mm	50kg/m	‍‍‍‍15-30m/min	10m/min
5 Stages	FTBC-5S-16/22	16m	22m	38m	600/800mm	1100mm	50kg/m	‍‍‍‍15-30m/min	10m/min
