Flexible Powered Roller Conveyor
Home  > new category  > Flexible Powered Roller Conveyor  >

Well designed electric power retractable flexible expandable roller conveyor for loading and unloading

Well designed electric power retractable flexible expandable roller conveyor for loading and unloading
extendable conveyor
Start Port
Sea freight
Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)
1 - 10(Sets):15(days),>10(Sets):Negotiable(days)
Load Capacity

Add success, do you want to check your shopping cart?

Quick Details
Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail, Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Printing Shops, Construction works , Energy & Mining
Showroom Location:None
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:1.5 KW
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Gear, Motor
Weight (KG):500 kg
Extendable Length:2750-6000mm
Roller Width:600*50mm galvanized steel roller
Adjustable Height:700-1000mm
Roller Center Gap:Max.140mm
Motor:90W,Zhongda brand
Side Links:5mm thickness galvanized join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Video Description
Product Overview

FPR-RV6-600 Powered Rubber Coated Roller Conveyor

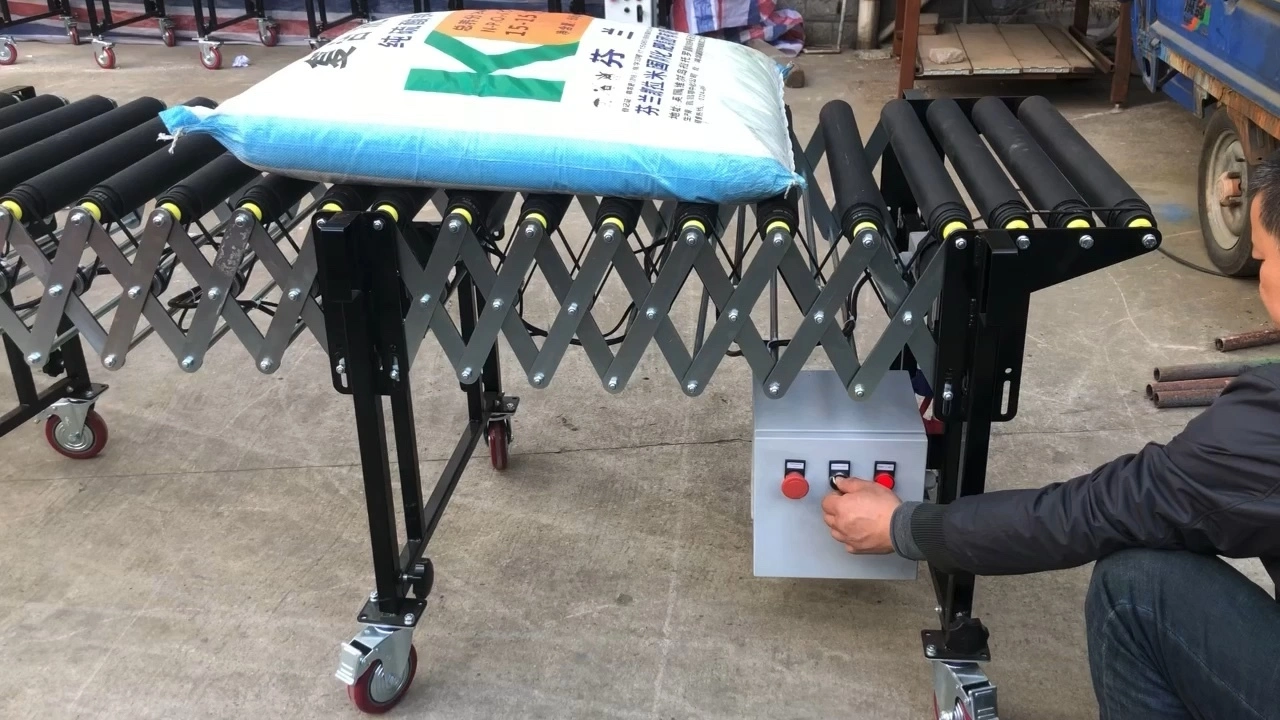

Expandable Powered Roller Conveyor, Motorized Flexible Roller Conveyor is an popular automatic roller conveyor with adjustable speed,height & direction.It is well qualified to intensively transport cartons,cases,boxes in the warehouse , workshop,factory,harbor,dock,etc.It can also be applied as packing line,temporary conveying line and goods distribution
Technical Parameters
Roller Width
600mm or 800mm
Adjustable Height
Extendable Length
Load Capacity
Control Box
Forward/Stop/Reverse,Emergency Stop
220V,1-Phase or 380V, 3-Phase
90W, Zhongda brand
Side Links
5mm thickness galvanized join plates
5" swivel lockable casters
Details Image
Reinforced double H shape legs with nice load capacity
With handle on the legs to help move the conveyor around
Adjustable Height: 700-1000mm or 800-1200mm

Each conveyor with one independent control box, Fwd/Stop/Rev

5mm thick heavy duty side links with good load capacity

Each conveyor leg with a min motor

Adopt rubber coated rollers to avoid items getting slippery
Rollers driven by high quality V belt
Mobile on 5" swivel casters with brakes
Successful Project
Company Profile
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service?
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

By Truck Loading Conveyor, Ningbo YiFan Conveyor Equipment Co.,Ltd innovate its business models and build up its international competitiveness. The product is characterized by low energy consumption. The potential value of the product makes it applicable in multiple scenarios. The product is characterized by low energy consumption.
