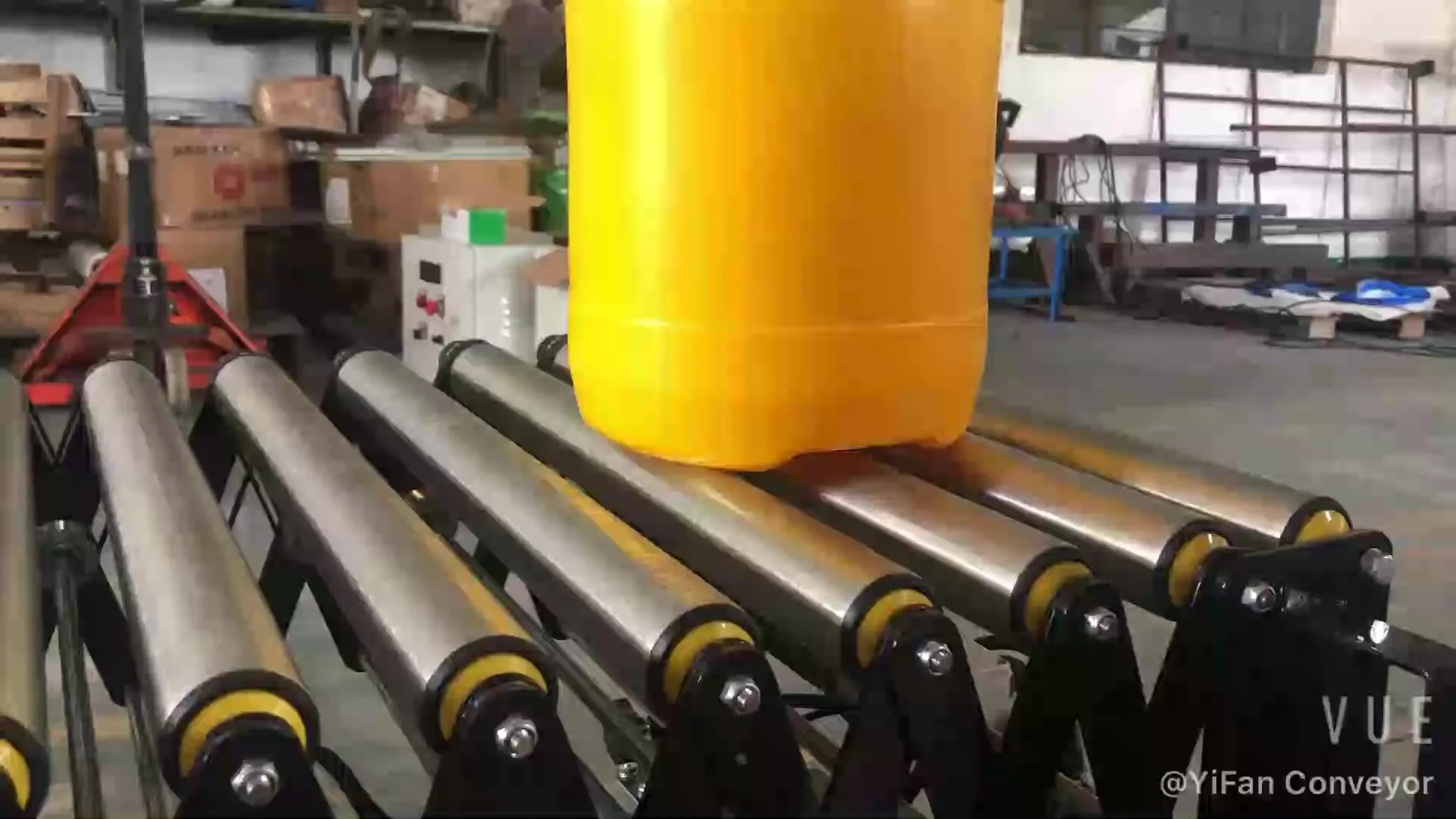

Motorized telescopic heavy duty roller conveyor for loading unloading jerry cans in warehouse

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail, Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Printing Shops, Construction works , Energy & Mining
    Showroom Location:None
    Condition:New
    Material:Carbon steel
    Material Feature:Fire Resistant
    Structure:Roller Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:AC 110V/220V/380V
    Power:1.5 KW
    Dimension(L*W*H):L6000*W600*H700/1000 mm
    Warranty:1 Year
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Gear, Motor
    Weight (KG):300 kg
    Extendable Length:2550-6000mm
    Adjustable Height:700-1000mm
    Roller:600*50mm galvanized steel roller
    Roller Center Gap:Max.140mm
    Motor:90W,Zhongda brand
    Side Links:5mm thickness galvanized curved join plates
    Adjustable Legs:32*32 outer tube with 30*30 inner tube
    Control Box:Forward/Stop/Reverse,Emergency Stop
    Caster:5'' swivel lockable caster
    After-sales Service:online support
    Video Description
    Product Overview

    100KG LOAD V-BELT FLEXIBLE POWERED ROLLER CONVEYOR

    100KG LOAD V-Belt Flexible Powered Roller Conveyor is absolutely an durable & expandable motorized roller conveyor with Max. load capacity of 100kg/m.It can be operation in two directions with adjustable speed and working height. Having enough power supply by one mini motor per meter, it is well qualified to intensively transport goods especially with flat bottom in the warehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.
    Specification Roller Width: 600mm or 800mm Adjustable Height: 700-1000mm Extendable Length: 2550-6000mm Load Capacity: 100kg/m Control Box: Forward/Stop/Reverse,Emergency Stop Voltage: 220V,1-Phase or 380V, 3-Phase Motor: 90W, Zhongda brand Caster: 5" swivel lockable casters Side Links: 5mm thickness galvanized joint plates
    Close Condition
    180 degree bend
    90 degree bend
    Model List
    Model
    Open Length
    (mm)
    Close Length
    (mm)
    Adjustable Height
    (mm)
    Roller Width
    (mm)
    Motor Power
    (w)
    FPR-V6
    6000
    2550
    700-1000
    600,800
    540
    FPR-V7.2
    7200
    3060
    700-1000
    600,800
    630
    FPR-V8.4
    8400
    3570
    700-1000
    600,800
    720
    FPR-V9.6
    9600
    4080
    700-1000
    600,800
    810
    FPR-V10.8
    10800
    4590
    700-1000
    600,800
    900
    FPR-V12
    12000
    5100
    700-1000
    600,800
    990
    FPR-V13.2
    13200
    5610
    700-1000
    600-800
    1080
    FPR-V14.4
    14400
    6120
    700-1000
    600-800
    1170
    FPR-V15.6
    15600
    6630
    700-1000
    600-800
    1260
    FPR-V16.8
    16800
    7140
    700-1000
    600-800
    1350
    FPR-V18
    18000
    7650
    700-1000
    600-800
    1440
    FPR-V19.2
    19200
    8160
    700-1000
    600-800
    1530
    FPR-V20.4
    20400
    8670
    700-1000
    600-800
    1620
    PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug.
    Details Images
    Packing and Shipping
    Company Profile
    FAQ

    Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

    How long is the production time?
    YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

    What is the MOQ?
    YIFAN: 1 unit

    Can your company provide OEM & ODM service
    YIFAN: yes

    Can you do customized conveyors?
    YIFAN: yes

    Do you offer installation service abroad?
    YIFAN: yes

    What is the payment terms?
    YIFAN: T/T,LC,

    What is the delivery port?
    YIFAN: Ningbo/Shanghai

    How many years have you been in this industry?
    YIFAN: 10 years

    What is the HS code?
    YIFAN: 84283300,84283920,84283990

    Is YIFAN a trading company or factory?
    YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

    Which industry can your conveyors be applied to?
    YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
    YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

    All workers of Ningbo YiFan Conveyor Equipment Co.,Ltd are well trained for manufacturing. Its front head is equipped with an anti-collision bar. Quality is always the highlight point for Ningbo YiFan Conveyor Equipment Co.,Ltd. Its front head is equipped with an anti-collision bar.
