Top quality standard industrial telescopic gravity steel roller conveyor

Top quality standard industrial telescopic gravity steel roller conveyor
Gravity Conveyor
Load Capacity
Model Number
Lead Time
1 - 10(Sets):15(days),11 - 20(Sets):20(days),21 - 50(Sets):30(days),>50(Sets):Negotiable(days)
Sea freight
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 5 Sets)

Add success, do you want to check your shopping cart?

Quick Details
Applicable Industries:Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Manufacturing Plant, Other, Retail
After Warranty Service:Online support, Video technical support
Local Service Location:None
Showroom Location:None
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Other
Weight (KG):300 kg
Extendable Length:2550-6000mm
Roller Width:600mm
Adjustable Height:700-1000mm
Roller Diameter:50mm
Load Capacity:100kg/m
Roller Material:galvanized steel roller
Roller Center Gap:Max.140mm
Side Links:5mm thickness galvanized curved join plates
Supporting Legs:32*32 outer tube with 30*30 inner tube
Caster:5'' swivel lockable caster
Product Overview

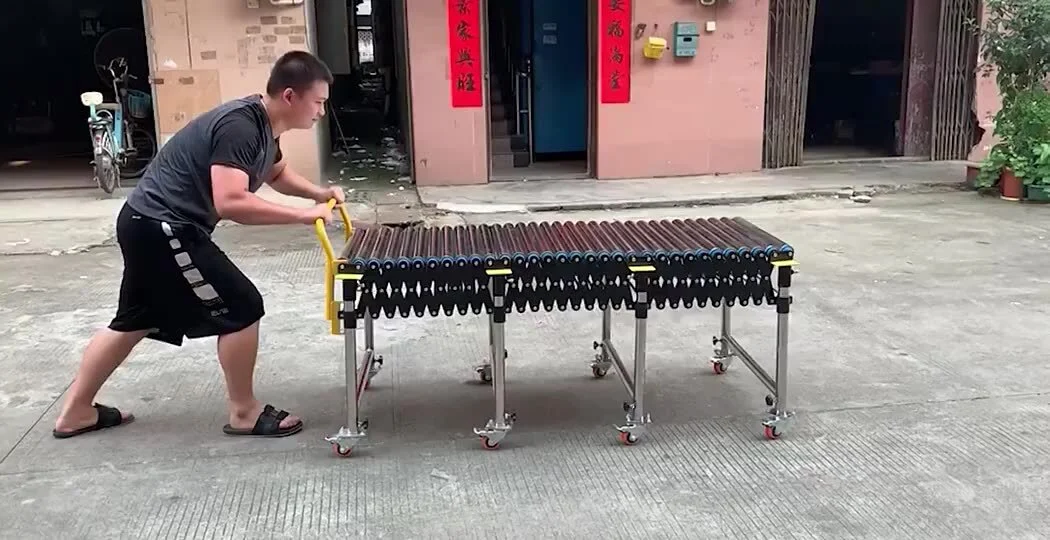

Flexible gravity roller conveyor is widely used in assembly or transport line, physical distribution,container stuffing.etc, it is designed especially to convey flat-bottom items like cartons. it is all-steel joint structure makes sure that it holds its integrity when extended or curved, it helps to increase work efficiency and decrease labor intensity in material handling.
Technical Parameters
Extendable Length
Adjustable Height
Roller Material
Galvanized Steel Rollers
Roller Center Gap
Load Capacity
Side Frame
2.5mm thickness steel plates
Supporting Legs
galvanized round steel tubes
4'' swivel lockable caster
Operation Video
Details Image
Side Links
Successful Project

Company Profile
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service?
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

Ningbo YiFan Conveyor Equipment Co.,Ltd has made unremitting efforts to provide conveyor manufacturer for one-stop shopping centers around the world. It simple structure contributes to its easy use and easy installation. Our conveyor manufacturer can always grace the Truck Loading Conveyor of our customers with even the most discerning tastes. It simple structure contributes to its easy use and easy installation.
