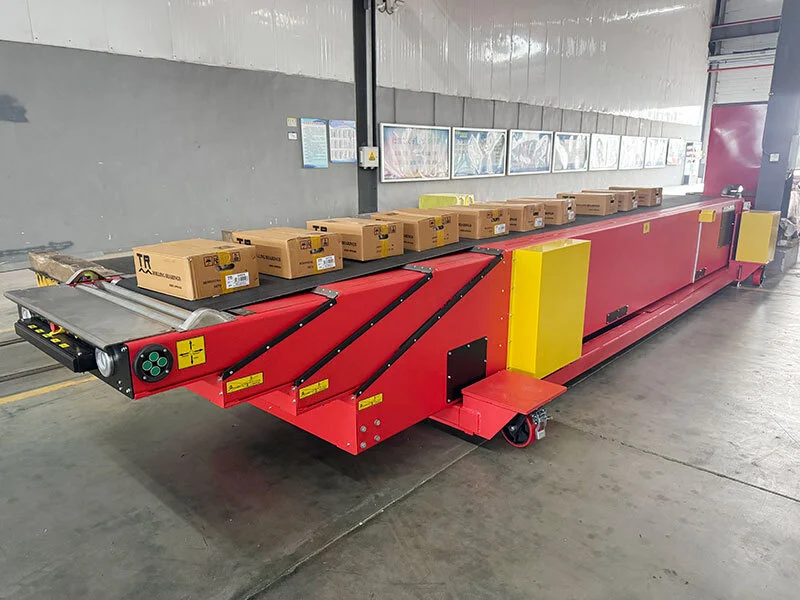

Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling 1

Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling 2

Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling 3

Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling 4

Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling 5

Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling 6

Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling

Name: Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling
Uploaded: 2026-01-16T17:30:13+08:00
Description: Telescopic Belt Conveyor is an automatic loading & unloading equipment which can extend directly into containers/trucks/trailers/vehicles.

Belt Spec: 800mm black PVK conveyor belt heat-sealed, SIEGLING/YONLI brand
Conveyor Size: 6m extend out 12m,total 18m
Motor: SEW; PLC & Frequency Converter: Siemens
Adjustable Conveyor Height: 930mm-2100mm
Belt Running Speed:10-3m/min,Extending Speed:10m/min
Electrical components: Schneider;Chain: Donghua
Hydraulic cylinder: KunTai/Xiyan, hydraulic motor: Bucher
Voltage: 380V,three phase,50~60Hz
Conveyor body: BS460 special steel,powder coated RAL3020
With emergency stop buttons on both sides; Electric box with LED light
Equipped with a textured anti-slip,anti-scratch plate and anti-pinch plate
Install package auto-stop sensors at both the front and the rear
Integrated photoelectric and mechanical collision prevention systems

Inquiry

Write a Review

未标题-1 拷贝

MTBC-4S-6/12-800

Telescopic Mobile Belt Conveyor

Telescopic Belt Conveyor is an automatic loading & unloading equipment which can extend directly into containers/trucks/trailers/vehicles. It is widely used in logistics shipping and receiving distribution centers, ports, docks, stations, airports and warehouses.Our Mobile Telescopic Belt Conveyor boasts acompact structure, fitting narrow spaces without compromising performance. Adopting high-end configurations and exquisite craftsmanship, it delivers exceptional stability for long-term continuous operation.

With low initial investment and maintenance costs, it significantly improves handling efficiency, reduces labor input, and achieves high return on investment quickly. Ideal for logistics, warehousing, and ports, it offers flexible and reliable material conveying solutions.

The portable telescopic conveyor is an efficient loading and unloading device that has a wide range of applications in logistics, warehousing, courier, manufacturing, recycling and agricultural industries.When loading and unloading trucks, an extendable conveyor makes a world of difference. This conveying solutions extend all the way from the permanent conveyor to the nose of the truck trailer, making the process of getting cargo in and out faster, easier and safer.

PRODUCT PARAMETERS

4 Stages Mobile Telescopic Belt Conveyor
Fixed Length	6m
Extension Length	12m
Total Length	18m
Belt Spec	800mm width PVK belt, alligator clip jointing
Belt Top Height	1200-2200mm
Belt Direction	Forward & reverse
Max. Load Capacity	60kg/m
Belt Driven Motor	3kw, SEW
Telescopic Motor	0.75kw, SEW
Hydraulic Power Pack	2.2kw
Machine Total Power	5.95kw
Electric Control System	Schneider PLC intelligent controller
Main Electric Components	Schneider,including abnormal fault automatic detection alarm device
Telescopic Chain	Donghua, Hangzhou
Power Cord Length	5-10m
Standard Color	BLUE/RED
Voltage	380V, three phase, 50Hz

MODEL LIST


MODEL	Fixed Length（A)	Extension (B)	Total Length (C)	Belt Width	Height	Load Capacity	‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍ Belt Speed
MTBC-3S-5/7	5m	7m	12m	800mm	1000mm	50kg/m	‍‍‍‍15-30m/min
MTBC-3S-6/8	6m	8m	14m	800mm	1000mm	50kg/m	‍‍‍‍15-30m/min
MTBC-4S-5/10	5m	10m	15m	800mm	1250mm	50kg/m	‍‍‍‍15-30m/min
MTBC-4S-6/12	6m	12m	18m	800mm	1250mm	50kg/m	‍‍‍‍15-30m/min

SHOW DETAILS

50KG per meter load capacity

Anti-hand-pinching design

Neatly arranged electrical control cabinet with LE

Mobile on heavy duty wheels

Side control panle for extend_retract_up_down

With package end stop sensor

All what you need, We can customized

That is our highly-qualified employees. We have R&D experts, designers, QC professionals, and other highly qualified employees. We can provide below options:

Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling 16

Operator Platform

It is convenient for workers to observe the loading position and adjust the arrangement of goods. The loading height speed and direction can be manually controlled, When not in use, the platform can befolded to save space.

Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling 17

Counting System

It is mainly applied in logistics and warehousing, container loading and counting, and express sorting and loading. Reduce the risk of manual counting errors or cheating. Data is automatically recorded for easy verification and management.

Move on Electric Wheels

It is driven by a motor, equipped with casters and electric wheels, runs smoothly and can be easily moved to different working positions.

Rotary Tongue

This is a highly flexible conveying equipment. On the basis of the traditional belt telescopic machine, it adds a swingable head, enabling it to adjust the unloading direction. According to customer requirements, the head can be designed to adjust up and down or left and right.

Move on Rails

Linear guides or ground rails are adopted for guidance to ensure smooth and precise movement of the equipment. The length of the track can be customized according to requirements, usually ranging from 10 to 50 meters.

High Chassis Type

Specially designed for high-position loading and unloading, it is suitable for factories and warehouses without platforms. The tail is equipped with a slope to reduce the final height of the goods and facilitate workers to retrieve them.

Joint Flexible Conveyors

The belt telescopic machine is used in conjunction with the power roller telescopic machine to achieve efficient collaborative operation of the two conveying devices and quickly deliver materials to the designated location.

Side Guide Rails

The guardrails on both sides are important safety accessories of the belt telescopic machine, mainlyused to prevent goods from faling and ensure operational safety, They are suitable for goods such asfabric rolls, cylinders, and large cartons.

Telescopic Mobile Belt Conveyor Applied in 40ft Container Cargo Handling 24

Remote Control

It is equipped with a handheld or wearable wireless remote control to control start and stop, up/down,forward/reverse rotation, and emergency stop.
