YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.

E-Mail :sales@yfconveyor.com

Telescopic boom conveyor flexible conveyor belt loading conveyor 1
Telescopic boom conveyor flexible conveyor belt loading conveyor 2
Telescopic boom conveyor flexible conveyor belt loading conveyor 3
Telescopic boom conveyor flexible conveyor belt loading conveyor 4
Telescopic boom conveyor flexible conveyor belt loading conveyor 5
Telescopic boom conveyor flexible conveyor belt loading conveyor 6
Telescopic boom conveyor flexible conveyor belt loading conveyor 7
Telescopic boom conveyor flexible conveyor belt loading conveyor 1
Telescopic boom conveyor flexible conveyor belt loading conveyor 2
Telescopic boom conveyor flexible conveyor belt loading conveyor 3
Telescopic boom conveyor flexible conveyor belt loading conveyor 4
Telescopic boom conveyor flexible conveyor belt loading conveyor 5
Telescopic boom conveyor flexible conveyor belt loading conveyor 6
Telescopic boom conveyor flexible conveyor belt loading conveyor 7

Telescopic boom conveyor flexible conveyor belt loading conveyor

5.0
Start Port:
Sea freight
MOQ:
50KG
Model:
SLAT CONVEYOR
Load Capacity:
FTBC-4S-6/12-800
Lead_Time:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
design customization

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    Showroom Location:None
    Condition:New
    Material:Carbon steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
    Power:1.5kw
    Dimension(L*W*H):L6000/12000*W600*H950 mm
    Warranty:1 Year
    Width or Diameter:600mm
    Machinery Test Report:Provided
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):3500 kg
    Belt Material:PVK
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Packing Details:L6100*W1400*H1000mm,4000KGS
    Motor Power:0.75kw,2.2kw
    Belt Width:600mm,800mm
    Belt Speed:10-30m/min
    Boom Speed:10-12m/min
    Conveyor Height:adjust by hydraulic
    Load Capacity:50kg/m
    Video Description
    Product Overview

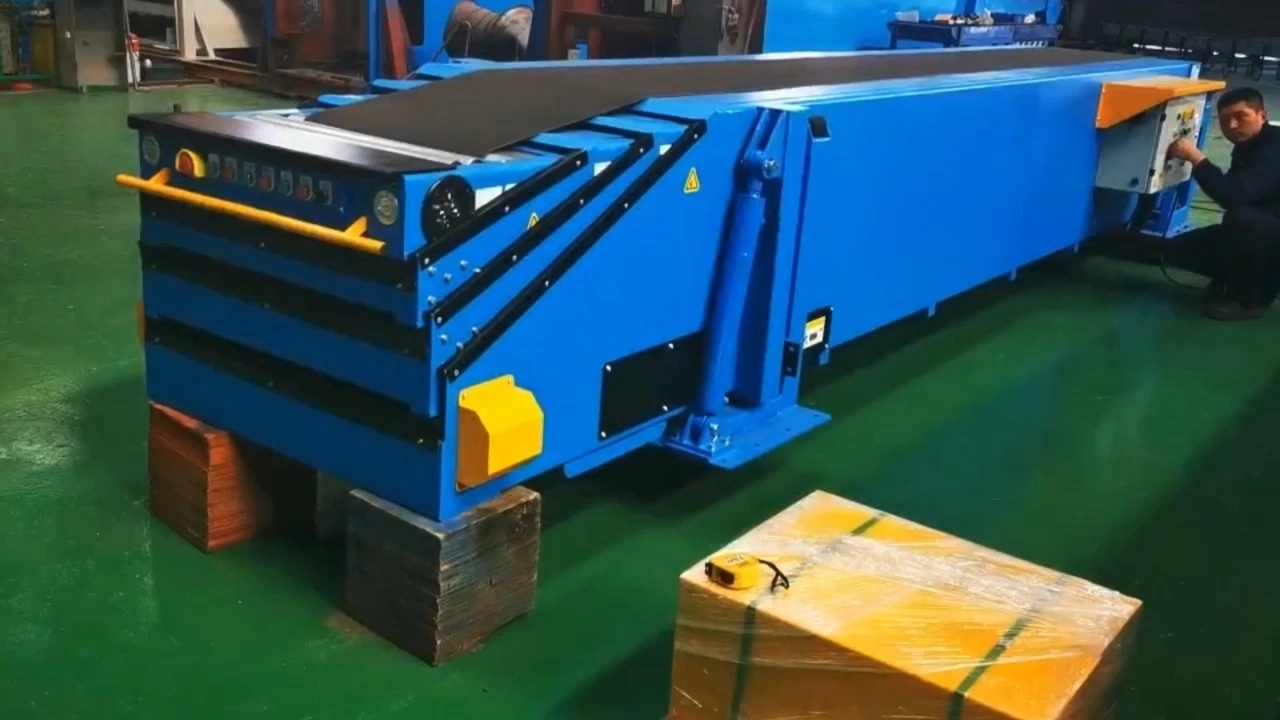

    Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.
    Key Features and Benefits of telescopic belt conveyor
    Rapid Logistics: Reduces loading/unloading time by up to 75% by moving products directly to the trailer's front.
    Safety & Durability: Features heavy-duty steel construction, emergency stop buttons, and photoeye sensors to stop the belt when packages build up.
    Ergonomic Design: Includes operator panels at the tip for controlling extension, height adjustment, and belt direction, reducing manual labor.
    Versatility: Ideal for handling parcels, bags, tires, and boxes in warehouses and distribution centers.
    Fixed Length: 6000mm Extension: 12000mm
    Total Length: 18000mm Belt Width: 600mm Base Height: 950mm Rise Up Height: 2100mm Load Capacity: 50kg/m Belt Running: 10-30m/min Extending Speed: 10m/min Motor Brand: SEW
    Telescopic belt conveyors are essential in modern material handling, improving efficiency, safety, and cost-effectiveness. With customizable designs and advanced automation, these conveyors are a smart investment for businesses looking to optimize their logistics and warehousing operations. Would you like information on specific models or suppliers? Contact YiFan Conveyor - Telescopic Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
    FAQ

    How far can a telescopic conveyor reach?
    Units often have a stored footprint as short as 14 ft and can extend over 80 ft, with some models offering 55 ft of extension beyond the base unit.

    How long do telescopic belt conveyors last?
    With proper maintenance, a telescopic belt conveyor can last 10-15 years, depending on usage and load.

    Are Telescopic Conveyors Suitable for Small Operations?
    Yes, telescopic conveyors come in various sizes and can be customized to fit the needs of smaller businesses.

    Can Telescopic Belt Conveyors Be Used Outdoors?
    Yes, some models are designed for outdoor use, with weather-resistant materials and features.

    Are telescopic belt conveyors easy to install?
    Yes, telescopic belt conveyors are relatively easy to install, but it is essential to follow the manufacturer’s installation guidelines carefully. Professional installation is recommended to ensure that the conveyor is set up correctly, securely, and safely. Proper alignment and fastening are critical to avoiding operational issues and ensuring long-term performance.

    Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

    Telescopic boom conveyor flexible conveyor belt loading conveyor 8
    Telescopic boom conveyor flexible conveyor belt loading conveyor 9
    Front Elevation
    Telescopic boom conveyor flexible conveyor belt loading conveyor 10
    Left elevation
    Telescopic boom conveyor flexible conveyor belt loading conveyor 11
    Right Elevation
    Model
    Belt Width
    (mm)
    Fixed Length
    (mm)
    Extended Length
    (mm)
    Total Length
    (mm)
    Base Height
    (mm)
    Lift Height
    (mm)
    FTBC-4S-6/12-600
    600
    6000
    12000
    18000
    900
    2100
    FTBC-4S-6/12-800
    800
    6000
    12000
    18000
    900
    2100
    Telescopic boom conveyor flexible conveyor belt loading conveyor 12
    Details Image
    Telescopic boom conveyor flexible conveyor belt loading conveyor 13
    Telescopic boom conveyor flexible conveyor belt loading conveyor 14
    Telescopic boom conveyor flexible conveyor belt loading conveyor 15
    Telescopic boom conveyor flexible conveyor belt loading conveyor 16
    Telescopic boom conveyor flexible conveyor belt loading conveyor 17
    Telescopic boom conveyor flexible conveyor belt loading conveyor 18
    Telescopic boom conveyor flexible conveyor belt loading conveyor 19
    Model List
    Telescopic boom conveyor flexible conveyor belt loading conveyor 20
    Sections
    Model
    A(m)
    B(m)
    C(m)
    H(mm)
    Belt Width(mm)
    3
    FTBC-3S-4/5.4
    4
    5.4
    9.4
    800
    600/800
    FTBC-3S-4.5/6
    4.5
    6
    10.5
    800
    600/800
    FTBC-3S-5/7
    5
    7
    12
    800
    600/800
    FTBC-3S-5.4/7.3
    5.4
    7.3
    10.7
    800
    600/800
    FTBC-3S-6/8.5
    6
    8.5
    14.5
    800
    600/800
    FTBC-3S-6.5/9.4
    6.5
    9.4
    15.9
    800
    600/800
    FTBC-3S-7/9.6
    7
    9.6
    16.6
    800
    600/800
    4
    FTBC-4S-4/7
    4
    7
    11
    950
    600/800
    FTBC-4S-4.5/8.5
    4.5
    8.5
    13
    950
    600/800
    FTBC-4S-5/9.5
    5
    9.5
    14.5
    950
    600/800
    FTBC-4S-5.4/10.3
    5.4
    10.3
    15.7
    950
    600/800
    FTBC-4S-6/12
    6
    12
    18
    950
    600/800
    FTBC-4S-6.5/12.8
    6.5
    12.8
    19.3
    950
    600/800
    FTBC-4S-7/14
    7
    14
    21
    950
    600/800
    Telescopic boom conveyor flexible conveyor belt loading conveyor 21
    Sections
    Model
    A(m)
    B(m)
    C(m)
    H(m)
    Belt Width(mm)
    3
    MTBC-3S-4/5.4
    4
    5.4
    9.4
    1100
    600/800
    MTBC-3S-5/7
    5
    7
    12
    1100
    600/800
    MTBC-3S-6/8.5
    6
    8.5
    14.5
    1100
    600/800
    4
    MTBC-4S-4/7
    4
    7
    11
    1200
    600/800
    MTBC-4S-5/9.5
    5
    9.5
    14.5
    1200
    600/800
    MTBC-4S-6/12
    6
    12
    18
    1200
    600/800
    Telescopic boom conveyor flexible conveyor belt loading conveyor 22
    Sections
    Model
    A(m)
    B(m)
    L(mm)
    H(mm)
    Belt Width(mm)
    3
    ITBC-3S-4/5
    4
    5
    3000-4500
    750/1500
    600/800
    ITBC-3S-6/8
    6
    8
    3000-4500
    750/1500
    600/800
    4
    ITBC-4S-6/12
    6
    12
    3000-4500
    750/1500
    600/800
    ITBC-4S-7/14
    7
    14
    3000-4500
    750/1500
    600/800
    Successful Project

    Project in Bangladesh Tea Products Factory

    Vertical lifting 60KG tea bags from 2nd floor to first floor and load directly into trucks.
    Telescopic boom conveyor flexible conveyor belt loading conveyor 23
    Telescopic boom conveyor flexible conveyor belt loading conveyor 24
    Telescopic boom conveyor flexible conveyor belt loading conveyor 25
    Telescopic boom conveyor flexible conveyor belt loading conveyor 26
    Telescopic boom conveyor flexible conveyor belt loading conveyor 27
    Telescopic boom conveyor flexible conveyor belt loading conveyor 28
    Company Profile
    Telescopic boom conveyor flexible conveyor belt loading conveyor 29
    Telescopic boom conveyor flexible conveyor belt loading conveyor 30
    Telescopic boom conveyor flexible conveyor belt loading conveyor 31
    Telescopic boom conveyor flexible conveyor belt loading conveyor 32
    Telescopic boom conveyor flexible conveyor belt loading conveyor 33
    Telescopic boom conveyor flexible conveyor belt loading conveyor 34
    The operators will encounter less fatigue and tiredness with this product, which allows them to focus on more professional things. This product helps man to reduce his or her job. And because of this, the money that is required to pay is totally reduced.
