Glass loading and unloading equipment truck loading unloading belt conveyor

这里可以自定义设置
Glass loading and unloading equipment truck loading unloading belt conveyor
B站不支持收货地址
B站不支持库存规格
Type
Other
Load Capacity
50KG
Model Number
FTBC-4S-6/12-600
shipping
Sea freight
Customization
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
Lead_Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V
Power:Other
Warranty:1 Year
Width or Diameter:500mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):3000 kg
Belt Material:PVK
Control Panel:Load/Unload,Up/Down,Stop,Emergency Stop
Motor Power:0.75kw,2.2kw
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Conveyor Height:800-1050mm
After Warranty Service:Video technical support
After-sales Service Provided:Free spare parts
Video Description
Product Overview


TELESCOPIC BELT CONVEYOR ( MODEL:FTBC-4S-6/12-600 )

Telescopic Belt Conveyor is automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.

Features
1. In structure, the telescopic conveyor makes the common belt conveyor extendable and retractable freely. The length can be controlled at will by the buttons; and also height adjustment is available if needed.
2. The conveyor can combine other conveying equipment such as lifting conveyors, inflexible roller/belt conveyors and assembly line, in which way an automatic conveying system is complete for production, assembly, storage, loading and unloading of goods.
3. The conveyor can transmit items in both forward and reverse way; and some options in details: either constant or variable in conveying/telescoping speed, either fixed or movable type by adding universal wheels, and belt types of chemical fiber/PVC belt, oil-proof or cutting-proof
Details Image



Main control box
Load, stop, unload, Light ON/OFF, Emergency stop




Schneider VFD
With Schneider VFD for adjust speed



Front control panel
Load, stop, unload, Light ON/OFF, Emergency stop




Customized conveyor height
conveyor height can be customized depend on your requirements.




Front anti-collision bar
Front anti-collision bar can also be round.




Back side cover plate
The back side is covered by plate which is more safe.
Reference Drawing

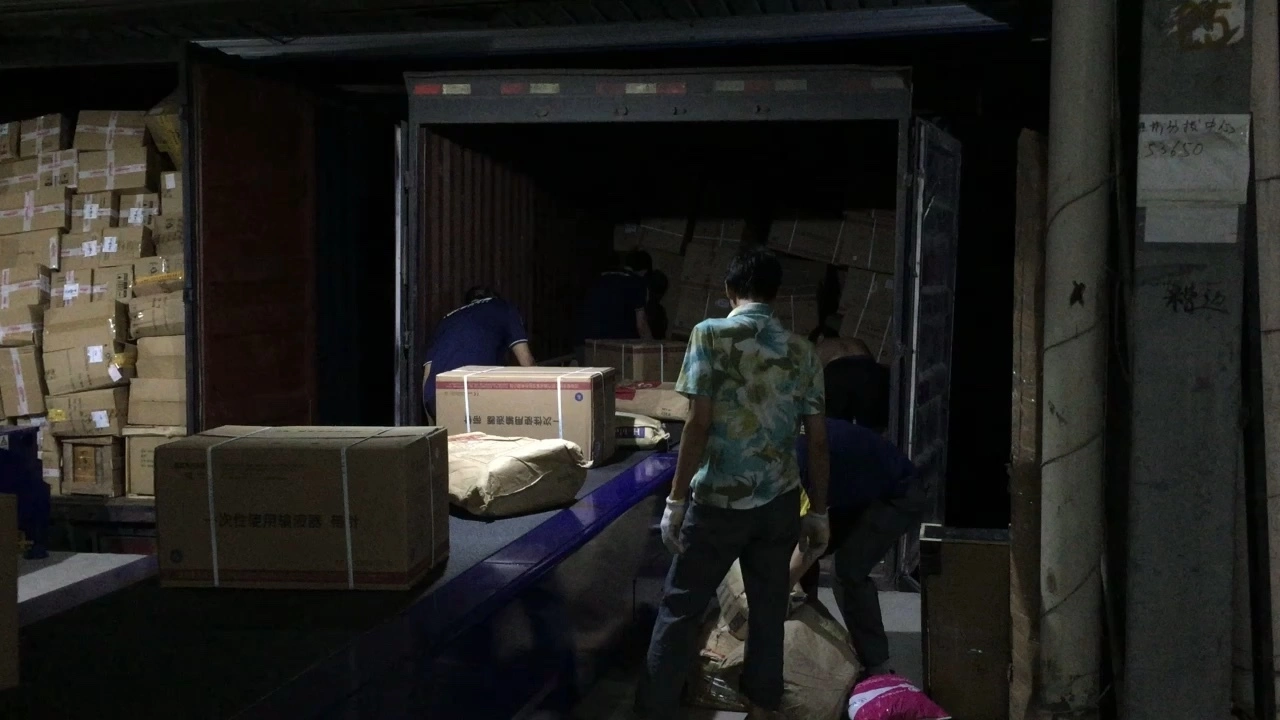

Application Picture
Model List
Sections
Model
A(m)
B(m)
C(m)
H(mm)
Belt Width(mm)





3
FTBC-3S-4/5.4
4
5.4
9.4
800
600/800

FTBC-3S-4.5/6
4.5
6
10.5
800
600/800
FTBC-3S-5/7
5
7
12
800
600/800
FTBC-3S-5.4/7.3
5.4
7.3
10.7
800
600/800
FTBC-3S-6/8.5
6
8.5
14.5
800
600/800
FTBC-3S-6.5/9.4
6.5
9.4
15.9
800
600/800
FTBC-3S-7/9.6
7
9.6
16.6
800
600/800




4
FTBC-4S-4/7
4
7
11
950
600/800
FTBC-4S-4.5/8.5
4.5
8.5
13
950
600/800
FTBC-4S-5/9.5
5
9.5
14.5
950
600/800
FTBC-4S-5.4/10.3
5.4
10.3
15.7
950
600/800
FTBC-4S-6/12
6
12
18
950
600/800
FTBC-4S-6.5/12.8
6.5
12.8
19.3
950
600/800
FTBC-4S-7/14
7
14
21
950
600/800
Sections
Model
A(m)
B(m)
C(m)
H(m)
Belt Width(mm)

3
MTBC-3S-4/5.4
4
5.4
9.4
1100
600/800
MTBC-3S-5/7
5
7
12
1100
600/800
MTBC-3S-6/8.5
6
8.5
14.5
1100
600/800

4
MTBC-4S-4/7
4
7
11
1200
600/800
MTBC-4S-5/9.5
5
9.5
14.5
1200
600/800
MTBC-4S-6/12
6
12
18
1200
600/800
Sections
Model
A(m)
B(m)
L(mm)
H(mm)
Belt Width(mm)
3
ITBC-3S-4/5
4
5
3000-4500
750/1500
600/800
ITBC-3S-6/8
6
8
3000-4500
750/1500
600/800
4
ITBC-4S-6/12
6
12
3000-4500
750/1500
600/800
ITBC-4S-7/14
7
14
3000-4500
750/1500
600/800
Company Profile
FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

This product has high commercial value and has broad market application prospects. Its robust solid welded construction ensures its stability and safety when running. The price of this product is competitive and is widely used by people in all fields. Its robust solid welded construction ensures its stability and safety when running.
