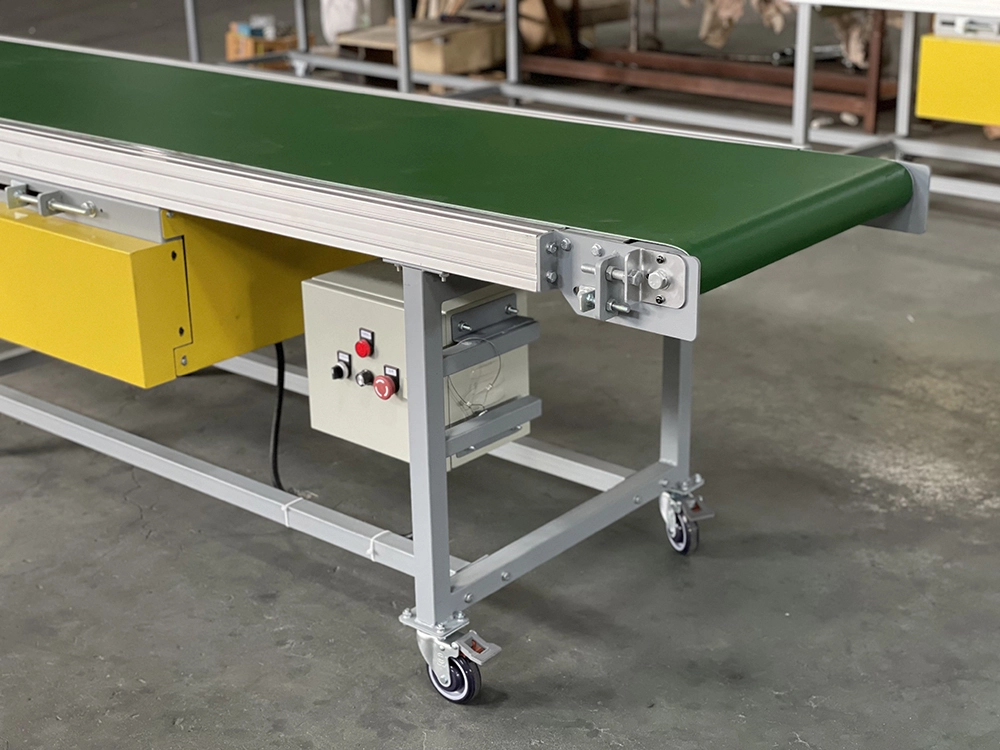

    MOVABLE STRAIGHT PVC BELT CONVEYOR

    The PVC Belt Conveyor can be made in Aluminum/steel/stainless steel frame. Different from heavy duty PVK belt conveyor, this conveyor is designed to transport medium weight cargos of 20-30KGS.White food grade PU belt is also available.

    Straight Belt Conveyor is widely applied in light industry, food, medicine and daily chemical industries. The conveyor can be equipped with working tables on both sides. With optional lights, air tubes, tool hooks, operation boards, instrument desks and sockets, it can act as various assembly lines. The advantages of belt conveyors are large and stable distribution, little noise, simple structure, easy maintenance, low energy consumption and cost. Belt conveyors can be customized in different specifications, materials, load capacity and other special functions.

    PRODUCT PARAMETERS

    Belt Spec

    600mm,700mm, 800mm flat top PVC belt

    Conveyor Length

    5m-10m

    Variable Speed

    10-20m/min

    Motor Power

    0.4/0.75/1.5/2.2kw

    Load Capacity

    20-30KG/m

    Frequency Inverter

    Delta

    Voltage

    220V/380V

    SHOW DETAILS

    Movable Straight PVC Belt Conveyor 8
    Belt Tighten System
    Movable Straight PVC Belt Conveyor 9
    Mobile on 125mm universal castors
    Movable Straight PVC Belt Conveyor 10
    Control Box: forward, stop,reverse, emergency stop
    Movable Straight PVC Belt Conveyor 11
    Smooth PVC belt conveyor

    Application 1

    Movable Straight PVC Belt Conveyor 12
    Movable Straight PVC Belt Conveyor 13
