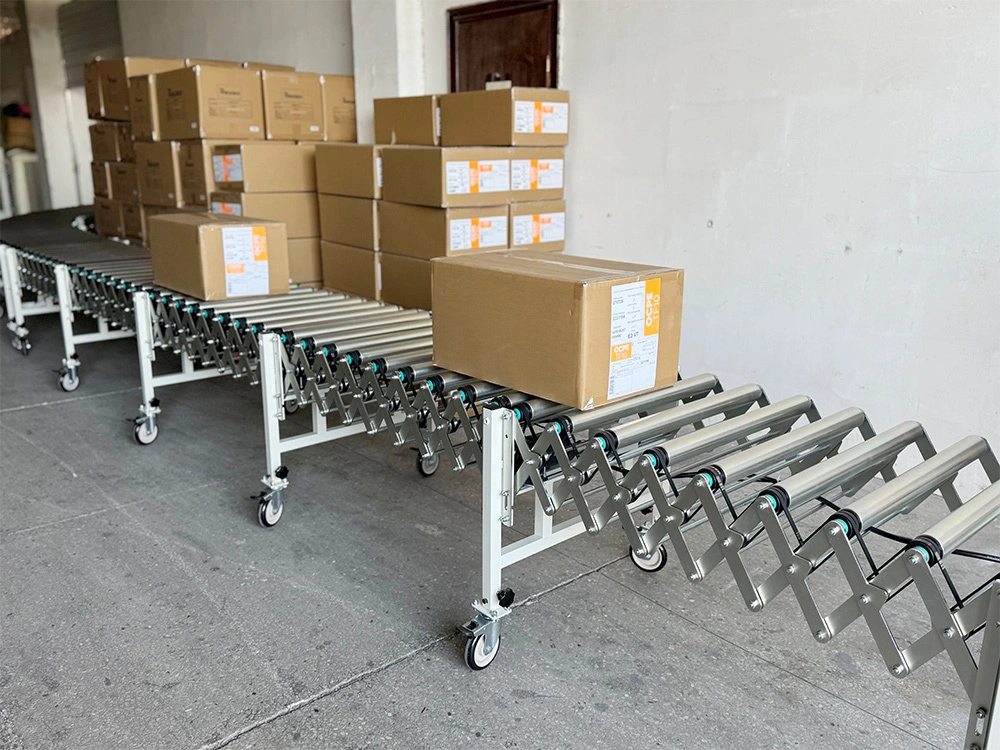

Robust Flexible Powered Roller Conveyor for Warehouse & Distribution Centers 1

Robust Flexible Powered Roller Conveyor for Warehouse & Distribution Centers 2

Robust Flexible Powered Roller Conveyor for Warehouse & Distribution Centers 3

Robust Flexible Powered Roller Conveyor for Warehouse & Distribution Centers 4

Robust Flexible Powered Roller Conveyor for Warehouse & Distribution Centers 5

Robust Flexible Powered Roller Conveyor for Warehouse & Distribution Centers 6

Robust Flexible Powered Roller Conveyor for Warehouse & Distribution Centers

Conveyor Effective Width: 600/800mm
Roller Spec: Dia 50mm galvanized steel rollers DAMON brand
Belt Type: high quality V-ribbed belts
Motor: 90/120W,220V,single phase,50~60Hz
Side Links: L270*T5mm galvanized steel plates
Adjustable Legs: 32×32×2mm steel tube,powder coated
Control Box: Forward/Stop/Reverse,Emergency Stop
Caster: 5" high quality swivel PU casters

Inquiry

Write a Review

Robust Flexible Powered Roller Conveyor for Warehouse & Distribution Centers

Elevate your warehouse and distribution center operations with our Robust Flexible Powered Roller Conveyor-the ultimate solution for dynamic, high-demand material handling.

Engineered for durability, this conveyor features heavy-duty rollers and a reinforced frame, ensuring reliable performance even under continuous, heavy-load conditions. Its flexible design enables seamless adaptation to tight spaces, irregular layouts, and variable workflow paths, eliminating the need for multiple fixed conveyor lines.

Equipped with a high-efficiency drive system, it delivers smooth, consistent item transport—from cartons and totes to parcels of varying sizes. The powered roller mechanism reduces manual labor, cuts downtime, and boosts throughput, while its modular structure allows easy installation, expansion, and maintenance.

Ideal for order picking, sorting, packing, and cross-docking processes, this conveyor is tailored to meet the fast-paced needs of modern warehouses and distribution centers—helping you optimize space, enhance productivity, and stay ahead in competitive logistics environments.

TECHNICAL PARAMETERS

Belt	High quality Yuanyang V belt
Roller	Dia 50*1.5mm galvanized steel roller, Max. gap138mm center to center
Motor	90W/120W electronic governor motor
Frame	5mm thickness reinforced X shape side links
Leg	32×32 powder coated tube with 25×25 galvanized tube inside
Caster	5" high quality swivel lockable polyurethane casters
Control Box	Forward/Stop/Reverse
Frequency Inverter	Delta

MODEL LIST

Model	Open Length (mm)	Close Length (mm)	Roller Width (mm)	AdjustableHeight (mm)	VariableSpeed (m/min)	Max.Load (kg/㎡)	Motor Power (w)
FPR-V4.8	4800	2040	600/800	700-1000	10-20	100	450
FPR-V6	6000	2550	600/800	700-1000	10-20	100	540
FPR-V7.2	7200	3060	600/800	700-1000	10-20	100	630
FPR-V.48	8400	3570	600/800	700-1000	10-20	100	720
FPR-V9.6	9600	4080	600/800	700-1000	10-20	100	810
FPR-V10.8	10800	4590	600/800	700-1000	10-20	100	900
FPR-V12	12000	5100	600/800	700-1000	10-20	100	990
FPR-V13.2	13200	5610	600/800	700-1000	10-20	100	1080
FPR-V14.4	14400	6120	600/800	700-1000	10-20	100	1170
FPR-V15.6	15600	6630	600/800	700-1000	10-20	100	1260
FPR-V16.8	16800	7140	600/800	700-1000	10-20	100	1350
FPR-V18	18000	7650	600/800	700-1000	10-20	100	1440
FPR-V19.2	19200	8160	600/800	700-1000	10-20	100	1530
FPR-V20.4	20400	8670	600/800	700-1000	10-20	100	1620

SHOW DETAILS

5mm thick galvanized side links

50mm galvanized rollers

90W_120W high quality CPG motor

Control box with Forward,Stop,Reverse

Driven by V belt with nice figure

High quality Damon rollers

With E-stop Button at both end

Mobile on swivel castors

New design for joint two parts

Our Cases - what we finished

So far we have cooperated with one Bangladeshi tea factory for 10 years，providing hundreds of machines.They choose to work deep with us because we offer high-quality products and service at more competitive prices.

Optional Functions - what we can also do

This system represents a robust, efficient, and highly adaptable solution for modern material handling, ensuring your cartons move smoothly and remain in perfect order from start to finish.
