Retractable Powered Roller Conveyor with Side Guide

    oops...!

    no product data.

    Go to homepage

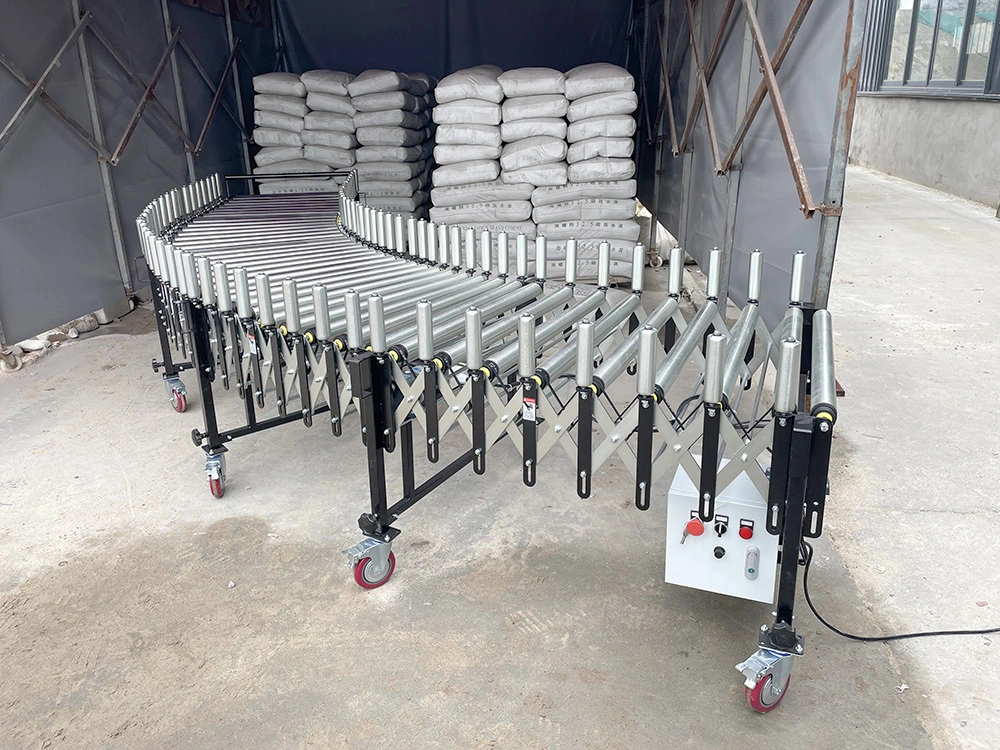

    The Retractable Powered Roller Conveyor with Side Guide is a versatile and efficient solution for material handling and transportation in various industrial settings. With its retractable design, this conveyor system offers flexibility and adaptability to meet changing operational needs. The powered roller mechanism ensures smooth and controlled movement of goods, while the side guide helps maintain alignment and stability during transport. This conveyor is designed to optimize workflow and streamline the transfer of items, enhancing productivity and reducing manual labor. Whether used in warehouses, distribution centers, or manufacturing facilities, the Retractable Powered Roller Conveyor with Side Guide offers a reliable and space-saving solution for handling goods with precision and ease.

    Retractable Powered Roller Conveyor with Side Guide 5

    FPR-V

    V Belt Flexible Motorized Roller Conveyor is more strong than O Belt type. The side links and legs joint structure is reinforced. Thickness of X shape side links increased to 5mm. Motors power changed from 90W to 120W.Motor numbers also increased.

    TECHNICAL PARAMETERS

    Belt

    High quality Yuanyang V belt

    Roller

    Dia 50*1.5mm galvanized steel roller, Max. gap138mm center to center

    Motor

    90W/120W electronic governor motor

    Frame

    5mm thickness reinforced X shape side links

    Leg

    32×32 powder coated tube with 25×25 galvanized tube inside

    Caster

    5" high quality swivel lockable polyurethane casters

    Control Box

    Forward/Stop/Reverse

    Frequency Inverter

    Delta

    MODEL LIST

    Model

    Open Length
    (mm)

    Close Length
    (mm)

    Roller Width
    (mm)

    AdjustableHeight
    (mm)

    VariableSpeed
    (m/min)

    Max.Load
    (kg/㎡)

    Motor Power
    (w)

    FPR-V4.8

    4800

    2040

    600/800

    700-1000

    10-20

    100

    450

    FPR-V6

    6000

    2550

    600/800

    700-1000

    10-20

    100

    540

    FPR-V7.2

    7200

    3060

    600/800

    700-1000

    10-20

    100

    630

    FPR-V.48

    8400

    3570

    600/800

    700-1000

    10-20

    100

    720

    FPR-V9.6

    9600

    4080

    600/800

    700-1000

    10-20

    100

    810

    FPR-V10.8

    10800

    4590

    600/800

    700-1000

    10-20

    100

    900

    FPR-V12

    12000

    5100

    600/800

    700-1000

    10-20

    100

    990

    FPR-V13.2

    13200

    5610

    600/800

    700-1000

    10-20

    100

    1080

    FPR-V14.4

    14400

    6120

    600/800

    700-1000

    10-20

    100

    1170

    FPR-V15.6

    15600

    6630

    600/800

    700-1000

    10-20

    100

    1260

    FPR-V16.8

    16800

    7140

    600/800

    700-1000

    10-20

    100

    1350

    FPR-V18

    18000

    7650

    600/800

    700-1000

    10-20

    100

    1440

    FPR-V19.2

    19200

    8160

    600/800

    700-1000

    10-20

    100

    1530

    FPR-V20.4

    20400

    8670

    600/800

    700-1000

    10-20

    100

    1620

    SHOW DETAILS

    Retractable Powered Roller Conveyor with Side Guide 6
    Retractable Powered Roller Conveyor with Side Guide 7
    Retractable Powered Roller Conveyor with Side Guide 8
    Retractable Powered Roller Conveyor with Side Guide 9
    Retractable Powered Roller Conveyor with Side Guide 10

    Application 1

    Load 50KG tea bags front production line to store house in tea products factory.

    Retractable Powered Roller Conveyor with Side Guide 11
    Retractable Powered Roller Conveyor with Side Guide 12
    Retractable Powered Roller Conveyor with Side Guide 13

    Application 2

    Flexible and extendable powered roller conveyor is the best solutions for loading unloading cartons,boxes in warehouse.It can greatly help reduce loading time and improve work efficiency.

    Retractable Powered Roller Conveyor with Side Guide 14
    Retractable Powered Roller Conveyor with Side Guide 15
