Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor

FPR-O

Start Port:

Ningbo/Shanghai

Payment:

T/T

MOQ:

1 set

Model:

FPR-O

Delivery time:

15-20 days

Certification:

Main Components with CE

Inquiry

Write a Review

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 6

FPR-O

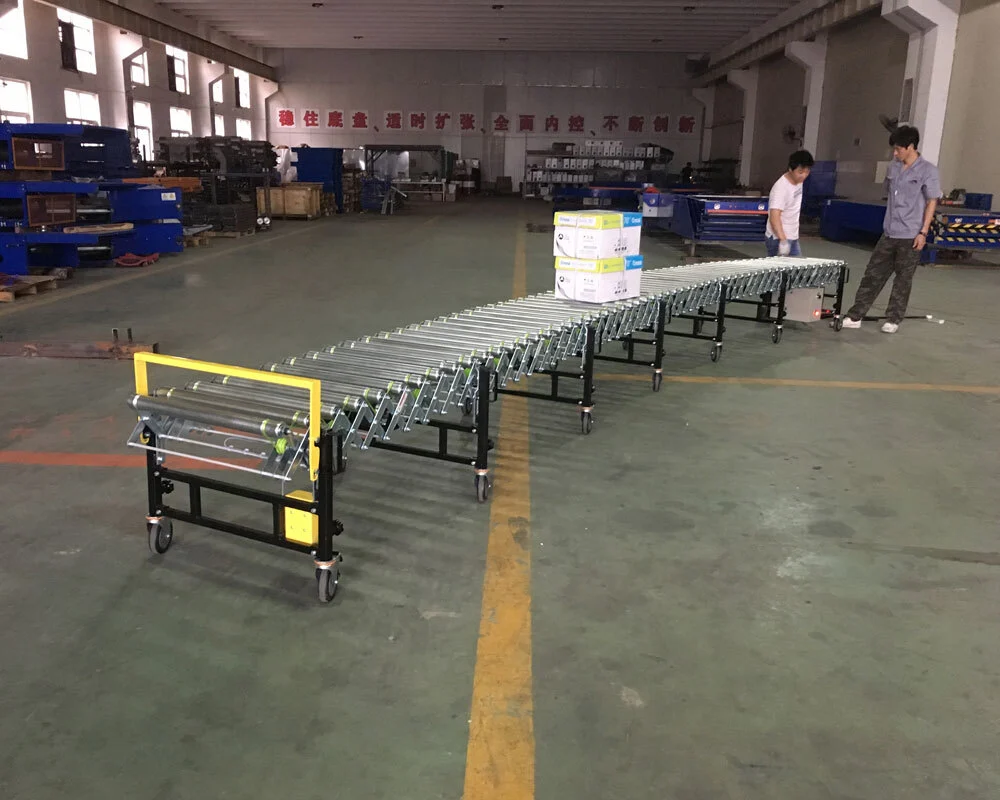

DURABLE FLEXIBLE POWERED ROLLER CONVEYOR-O BELT

Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.

PRODUCT PARAMETERS

Belt	5mm high quality O ring PU belt
Roller	Dia 50*1.5mm galvanized steel roller, Max. gap 130mm center to center
Motor	90W electronic governor motor
Frame	3.5mm thickness galvanized curved join plates with better load
Leg	32×32 powder coated tube with 25×25 galvanized tube inside
Caster	Dia 125mm high quality swivel lockable polyurethane casters
Control Box	Forward/Stop/Reverse
Frequency Inverter	Delta

MODEL LIST

Model	Open Length (mm)	Close Length (mm)	Width (mm)	AdjustableHeight (mm)	VariableSpeed (m/min)	Max.Load (kg/㎡)	Motor Power (w)
FPR-O4	4800	1840	600,700,800	600-800	10-20	50	360
FPR-O6	6000	2300	600,700,800	600-800	10-20	50	450
FPR-O7	7200	2760	600,700,800	600-800	10-20	50	540
FPR-O8	8400	3220	600,700,800	600-800	10-20	50	630
FPR-O9	9600	3680	600,700,800	600-800	10-20	50	720
FPR-O10	10800	4140	600,700,800	600-800	10-20	50	810
FPR-O12	12000	4600	600,700,800	600-800	10-20	50	900
FPR-O13	13200	5060	600,700,800	600-800	10-20	50	990
FPR-O14	14400	5520	600,700,800	600-800	10-20	50	1080
FPR-O15	15600	5980	600,700,800	600-800	10-20	50	1170
FPR-O16	16800	6440	600,700,800	600-800	10-20	50	1260
FPR-O18	18000	6900	600,700,800	600-800	10-20	50	1350
FPR-O19	19200	7360	600,700,800	600-800	10-20	50	1440
FPR-O20	20400	7820	600,700,800	600-800	10-20	50	1530

SHOW DETAILS

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 7

Each legs with handle for easy movement of the conveyor

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 8

Use 5mm high quality O ring PU belt

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 9

Dia 50*1.5mm galvanized steel roller, Max. gap 130mm center to center

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 10

Each section with one 90W/120W S.T.S Chenggang motor guarantee enough power

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 11

The casters are fixed by 4 bolts which are more strong

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 12

3.5mm thickness galvanized curved side links with better load

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 13

The electric wires are well fixed so it will not get loosen when pull out and close the conveyor.

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 14

Dia 50*1.5mm galvanized steel roller, Max. gap 130mm center to center

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 15

Except main control box, there is an emergency stop at the other end of the conveyor. So can control the conveyor on both end of conveyor.

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 16

The control box with frequency inverter to adjust speed.

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 17

Independent control box installed under the frame to avoid buttons hit by packages

Safe Operation & Low Cost: O‑Belt Driven Extendable Roller Conveyor 18

With filter on side of the control box
