Flexible retractable powered rubber coated roller conveyors
5.0
Start Port:
Sea freight
Payment:
1 - 10(Sets):15(days),>10(Sets):Negotiable(days)
MOQ:
[{'sku_name': '100KG/m', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'FPR-RV6-600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 5 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:750W
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Frequency Inverter
Extendable Length:2750-6000mm
Roller Width:600*50mm galvanized steel roller
Adjustable Height:700-1000mm
Roller Center Gap:Max.140mm
Motor:90W,Zhongda brand
Side Links:5mm thickness galvanized join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Product Overview

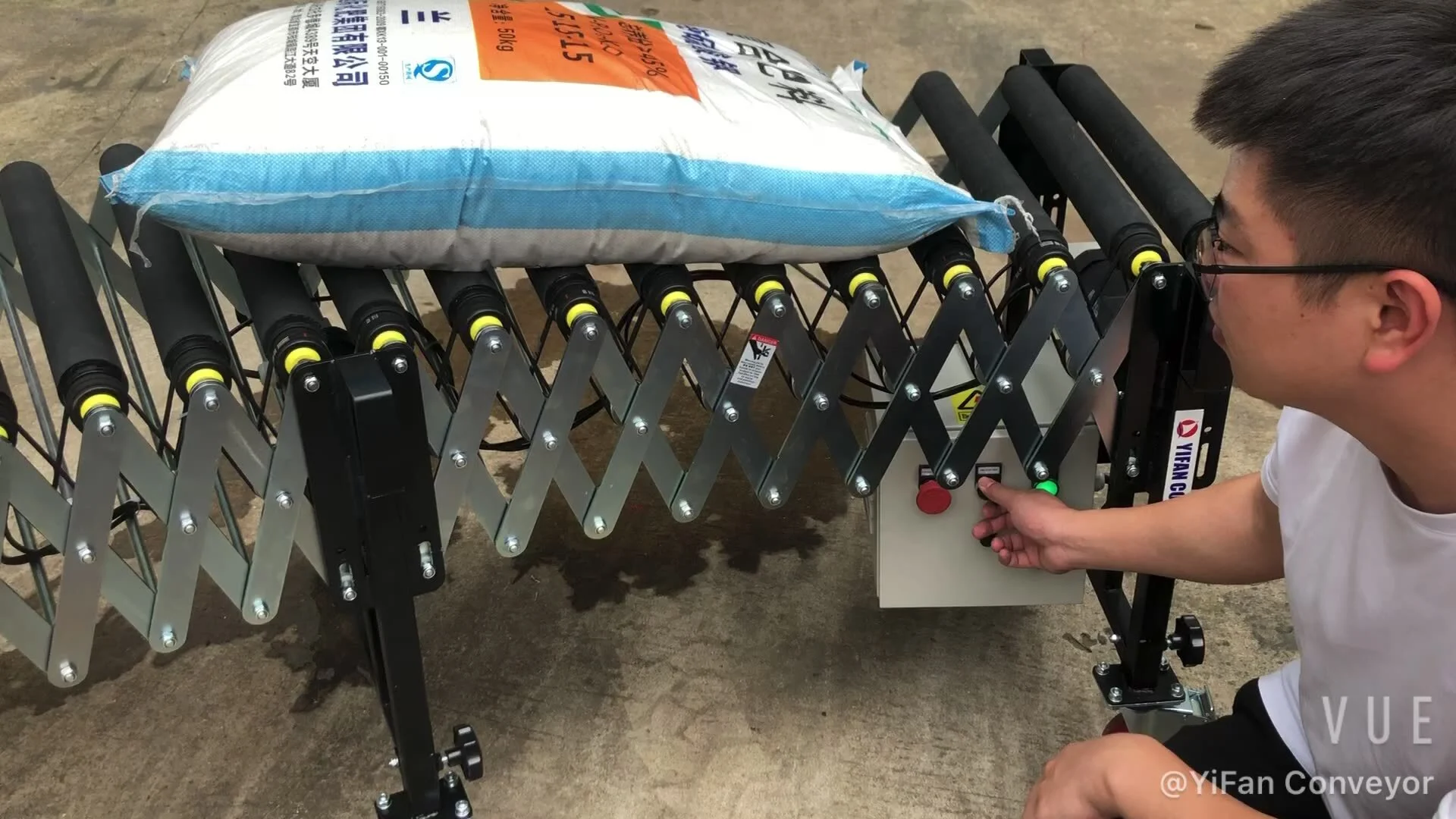

V-BELT FLEXIBLE POWERED RUBBER COATED ROLLER CONVEYOR
50KG Load O-belt Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height.Having enough power supply by one mini motor per section, it is well qualified to internsively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,docks,etc.
Specification
Roller Width: 600mm or 800mm
Adjustable Height: 700-1000mm
Extendable Length: 2750-6000mm
Load Capacity: 100kg/m
Control Box: Forward/Stop/Reverse,Emergency Stop
Voltage: 220V,1-Phase or 380V, 3-Phase
Motor: 90W, Zhongda brand
Caster: 5" swivel lockable casters
Side Links: 5mm thickness galvanized join plates
Open Elevation
Bend Elevation
Close Elevation
Model List
Model | Open Length (mm) | Close Length (mm) | Adjustable Height (mm) | Roller Width (mm) | Motor Power (w) | |||||
FPR-RV6 | 6000 | 2750 | 700-1000 | 600,800 | 450 | |||||
FPR-RV7.2 | 7200 | 3300 | 700-1000 | 600,800 | 540 | |||||
FPR-RV8.4 | 8400 | 3850 | 700-1000 | 600,800 | 630 | |||||
FPR-RV9.6 | 9600 | 4400 | 700-1000 | 600,800 | 720 | |||||
FPR-RV10.8 | 10800 | 4950 | 700-1000 | 600,800 | 810 | |||||
FPR-RV12 | 12000 | 5500 | 700-1000 | 600,800 | 900 | |||||
FPR-RV13.2 | 13200 | 6050 | 700-1000 | 600,800 | 990 | |||||
FPR-RV14.4 | 14400 | 6600 | 700-1000 | 600,800 | 1080 | |||||
FPR-RV15.6 | 15600 | 7150 | 700-1000 | 600,800 | 1170 | |||||
FPR-RV16.8 | 16800 | 7700 | 700-1000 | 600,800 | 1260 | |||||
FPR-RV18 | 18000 | 8250 | 700-1000 | 600,800 | 1350 | |||||
FPR-RV19.2 | 19200 | 8800 | 700-1000 | 600,800 | 1440 | |||||
FPR-RV20.4 | 20400 | 9350 | 700-1000 | 600,800 | 1530 | |||||
PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug. | ||||||||||
Details Images
Reinforced double H shape legs with nice load capacity
With handle on the legs to help move the conveyor around
Adjustable Height: 700-1000mm or 800-1200mm
Each conveyor with one independent control box, Fwd/Stop/Rev
5mm thick heavy duty side links with good load capacity
Each conveyor leg with a min motor
Adopt rubber coated rollers to avoid items getting slippery
Rollers driven by high quality V belt
Mobile on 5" swivel casters with brakes
Packing and Shipping
The product not only satisfies the production needs of society in energy and efficiency, but also provides a guarantee for the diversified development of new and high technologies. Each roller track of the product is independently height adjustable.
The use of this product makes the work of the laborer become much easier and faster. It is an excellent assistant to the operators. Each roller track of the product is independently height adjustable.
