Extendable Skate Wheel Conveyor for loading unloading cartons
FGW-S
18'' and 24'' FLEXIBLE GRAVITY SKATE WHEEL CONVEYOR

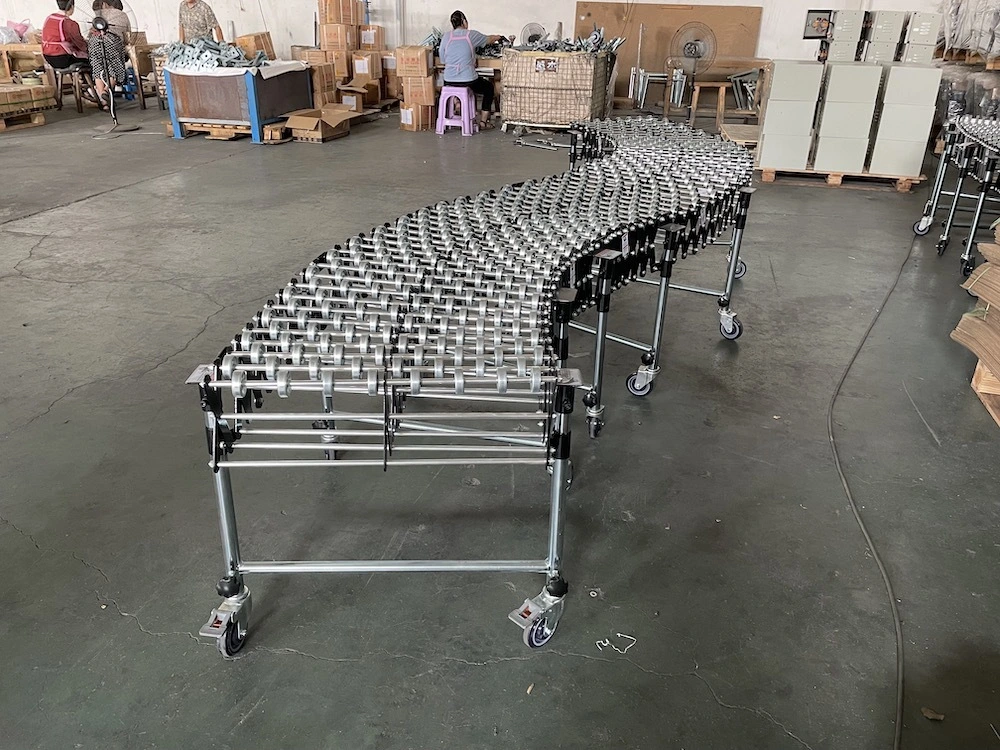

Flexible Gravity Plastic Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock, warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrow aisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. The conveyor largely facilitates goods delivery work.
TECHNICAL PARAMETERS
Rugged heavy duty self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow
Axle centers variable from 1-1/4" to 4" for 7" minimum package size
40kg per linear meter load capacity
Heavy duty powder coated steel side plates ensure maximum strength and durability.
Includes convenient end box-stop and hooks to connect additional conveyors.
Adjustable height achieve maximum gravity flow and create banked curves:700-1000mm as standard,800-1200mm (31-1/2" to 47-1/4") as option.
Simply insert galvanized telescopic leg sets into integral sockets.
Easy to move around on Dia 100mm(4") heavy duty lockable swivel polyurethane casters.
Can be made in custom lengths to suit your individual conveying application
MODEL LIST
Model | Open Length | Open Length | Effective Width | Adjustable Height | Max.Load | Wheel Material |
FGW-S2.5 | 860mm | 2500mm | 450mm,600mm | 700-1000mm | 40kg/m | steel |
FGW-S3.6 | 1200mm | 3600mm | 450mm,600mm | 700-1000mm | 40kg/m | steel |
FGW-S4.7 | 1540mm | 4700mm | 450mm,600mm | 700-1000mm | 40kg/m | steel |
FGW-S5.8 | 1880mm | 5800mm | 450mm,600mm | 700-1000mm | 40kg/m | steel |
FGW-S6.9 | 2220mm | 6900mm | 450mm,600mm | 700-1000mm | 40kg/m | steel |
SHOW DETAILS
SAFETY INFORMATION
1.
Conveyor is very heavy.Assembly required more than two people to prevent injury.
2.
Do not put hands on scissor supports.
3.
Clean the conveyor regularly to maintain the lifespan.
4.
Do not overload.Max.capacity 40kg per linear meter.
5.
Keep the casters breaks down while in use.
6.
Do not stand up on top of the unit.
7.
Conveyor is not a toy.Not for use by children.
HOW TO SET UP?
Step 1
Lay conveyor body upside down on a level surface.
Loosen all set screws with hex key provided.
Step 2
Insert leg supports into sockets making sure threaded bosses are facing same direction
Step 3
Retighten all set screws with hex key provided.
Step 4
Insert caster leg assemblies into leg supports.
Step 5
Insert and tighten all knobs into caster posts.
Step 6
To install box stop loosen and remove hex nuts,washers and axle rod.Attach box stop handle to end of conveyor.Insert axle rod.Replace washers and retighten nuts with box wrench provided.
Step 7
Set pitch and height as required by adjusting caster leg up or down.
To use the handle as a box stop,lift the horizontal bar and hook it to the top rod.
