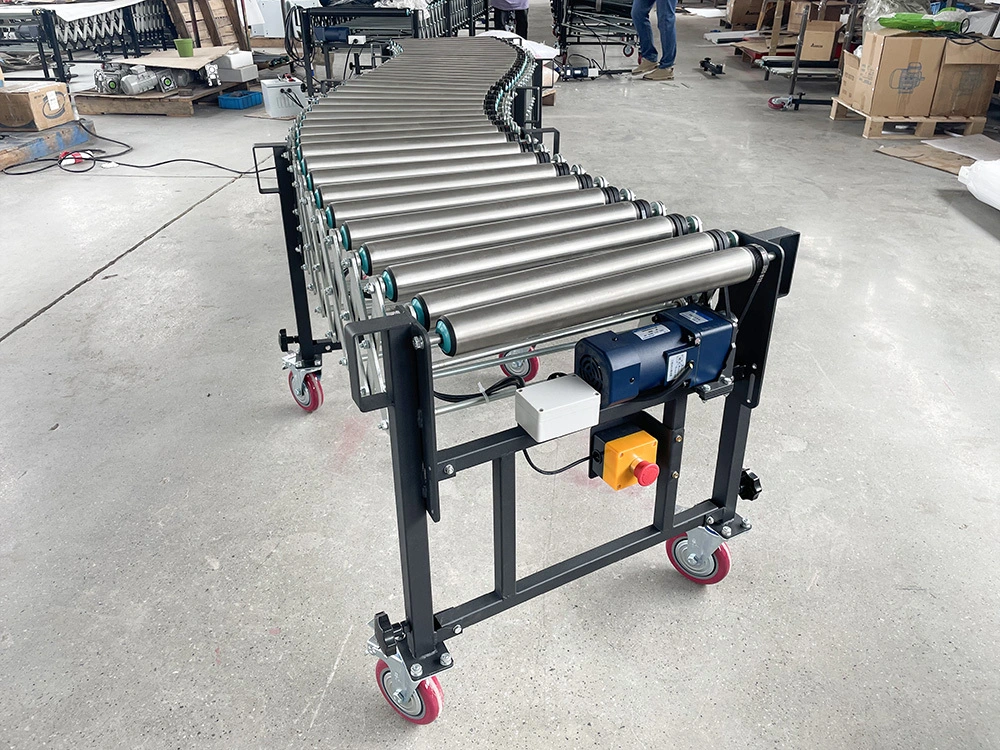

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 1

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 2

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 3

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 4

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 5

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers

Start Port:

Ningbo/Shanghai

Payment:

T/T

MOQ:

1 Set

Delivery time:

15-20 days

Certification:

Main conveyor components with CE

Inquiry

Write a Review

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 6

FPR-V

FLEXIBLE POWERED ROLLER CONVEYOR-V BELT

V Belt Flexible Motorized Roller Conveyor is more strong than O Belt type. The side links and legs joint structure is reinforced. Thickness of X shape side links increased to 5mm. Motors power changed from 90W to 120W.Motor numbers also increased.

TECHNICAL PARAMETERS

Belt	High quality Yuanyang V belt
Roller	Dia 50*1.5mm galvanized steel roller, Max. gap138mm center to center
Motor	90W/120W electronic governor motor
Frame	5mm thickness reinforced X shape side links
Leg	32×32 powder coated tube with 25×25 galvanized tube inside
Caster	5" high quality swivel lockable polyurethane casters
Control Box	Forward/Stop/Reverse
Frequency Inverter	Delta

MODEL LIST

Model	Open Length (mm)	Close Length (mm)	Roller Width (mm)	AdjustableHeight (mm)	VariableSpeed (m/min)	Max.Load (kg/㎡)	Motor Power (w)
FPR-V4.8	4800	2040	600/800	700-1000	10-20	100	450
FPR-V6	6000	2550	600/800	700-1000	10-20	100	540
FPR-V7.2	7200	3060	600/800	700-1000	10-20	100	630
FPR-V.48	8400	3570	600/800	700-1000	10-20	100	720
FPR-V9.6	9600	4080	600/800	700-1000	10-20	100	810
FPR-V10.8	10800	4590	600/800	700-1000	10-20	100	900
FPR-V12	12000	5100	600/800	700-1000	10-20	100	990
FPR-V13.2	13200	5610	600/800	700-1000	10-20	100	1080
FPR-V14.4	14400	6120	600/800	700-1000	10-20	100	1170
FPR-V15.6	15600	6630	600/800	700-1000	10-20	100	1260
FPR-V16.8	16800	7140	600/800	700-1000	10-20	100	1350
FPR-V18	18000	7650	600/800	700-1000	10-20	100	1440
FPR-V19.2	19200	8160	600/800	700-1000	10-20	100	1530
FPR-V20.4	20400	8670	600/800	700-1000	10-20	100	1620

SHOW DETAILS

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 7

With H shapre cross bar between two legs

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 8

Each leg with one motor to ensure enough power

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 9

5 Universal castors

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 10

V belt with good power transfer

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 11

SUS201 rollers

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 12

Control Box with Forward,Reverse,Stop and E-stop buttons

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 13

5mm Reinforiced side links

Application 1

Load 50KG tea bags front production line to store house in tea products factory.

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 14

Expandable Motorized Roller Conveyor with Stainless Steel 304 Conveyor Rollers 15

Application 2

Flexible and extendable powered roller conveyor is the best solutions for loading unloading cartons,boxes in warehouse.It can greatly help reduce loading time and improve work efficiency.
