    FPR-SUS304

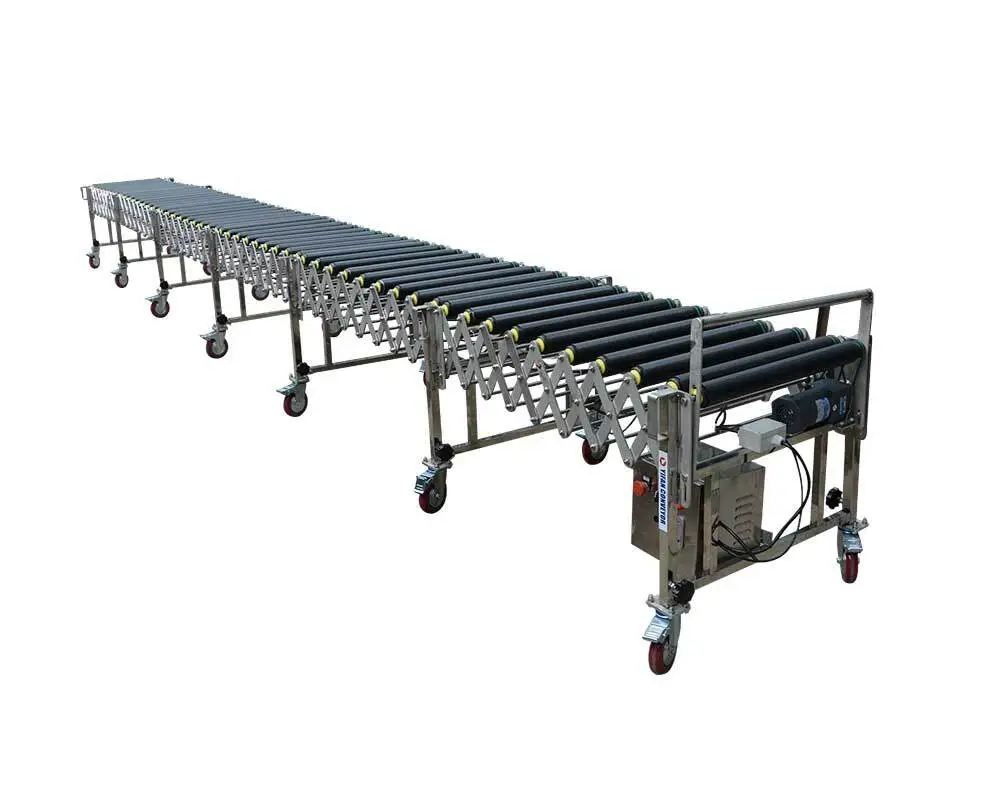

    EXPANDABLE AND FLEXIBLE MOTORIZED STAINLESS STEEL ROLLER CONVEYOR

    Flexible Motorized Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height.Having enough power supply by on mini motor per section,it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,dock,etc.In addition,it can be applied to such situations as production-packing line,temporary conveying line and goods distribution line. It satisfies the easy,safe,quick and efficient goods delivery.

    TECHNICAL PARAMETERS

    Belt

    High quality Yuanyang V belt

    Roller

    Dia 50*1.5mm galvanized steel roller, Max. gap138mm center to center

    Motor

    90W/120W electronic governor motor

    Frame

    5mm thickness reinforced X shape side links

    Leg

    32×32 powder coated tube with 25×25 galvanized tube inside

    Caster

    5" high quality swivel lockable polyurethane casters

    Control Box

    Forward/Stop/Reverse

    Frequency Inverter

    Delta

    MODEL LIST

    Model

    Open Length
    (mm)

    Close Length
    (mm)

    Roller Width
    (mm)

    AdjustableHeight
    (mm)

    VariableSpeed
    (m/min)

    Max.Load
    (kg/㎡)

    Motor Power
    (w)

    FPR-V4.8

    4800

    2040

    600/800

    700-1000

    10-20

    100

    450

    FPR-V6

    6000

    2550

    600/800

    700-1000

    10-20

    100

    540

    FPR-V7.2

    7200

    3060

    600/800

    700-1000

    10-20

    100

    630

    FPR-V.48

    8400

    3570

    600/800

    700-1000

    10-20

    100

    720

    FPR-V9.6

    9600

    4080

    600/800

    700-1000

    10-20

    100

    810

    FPR-V10.8

    10800

    4590

    600/800

    700-1000

    10-20

    100

    900

    FPR-V12

    12000

    5100

    600/800

    700-1000

    10-20

    100

    990

    FPR-V13.2

    13200

    5610

    600/800

    700-1000

    10-20

    100

    1080

    FPR-V14.4

    14400

    6120

    600/800

    700-1000

    10-20

    100

    1170

    FPR-V15.6

    15600

    6630

    600/800

    700-1000

    10-20

    100

    1260

    FPR-V16.8

    16800

    7140

    600/800

    700-1000

    10-20

    100

    1350

    FPR-V18

    18000

    7650

    600/800

    700-1000

    10-20

    100

    1440

    FPR-V19.2

    19200

    8160

    600/800

    700-1000

    10-20

    100

    1530

    FPR-V20.4

    20400

    8670

    600/800

    700-1000

    10-20

    100

    1620

    SHOW DETAILS

    Expandable and Flexible Motorized Stainless Steel Roller Conveyor | FPR-SUS304 8
    PU coated rollers
    Expandable and Flexible Motorized Stainless Steel Roller Conveyor | FPR-SUS304 9
    Stainless steel 304 slide links
    Expandable and Flexible Motorized Stainless Steel Roller Conveyor | FPR-SUS304 10
    Each section with one min motor to ensure good power transmission.
    Expandable and Flexible Motorized Stainless Steel Roller Conveyor | FPR-SUS304 11
    Control Box: Forward/Stop/Reverse,Emergency Stop,Power Light
    Expandable and Flexible Motorized Stainless Steel Roller Conveyor | FPR-SUS304 12
    More stable H shaped supporting legs
    Expandable and Flexible Motorized Stainless Steel Roller Conveyor | FPR-SUS304 13
    Mobile on 5" swivel PU castors

    Application 1

    Load 50KG tea bags front production line to store house in tea products factory.

    Expandable and Flexible Motorized Stainless Steel Roller Conveyor | FPR-SUS304 14
    Expandable and Flexible Motorized Stainless Steel Roller Conveyor | FPR-SUS304 15
    Expandable and Flexible Motorized Stainless Steel Roller Conveyor | FPR-SUS304 16
