    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    Showroom Location:None
    Condition:New
    Material:Carbon steel
    Material Feature:Fire Resistant
    Structure:Roller Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:AC 110V/220V/380V, AC 110V/220V/380V
    Power:750W
    Dimension(L*W*H):L6000*W600*H700/1000 mm
    Warranty:1 Year
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Frequency Inverter
    Roller:600*50mm galvanized steel roller
    Roller Center Gap:Max.130mm
    Motor:90W,Zhongda brand
    Side Links:3.5mm thickness galvanized curved join plates
    Adjustable Legs:32*32 outer tube with 30*30 inner tube
    Adjustable Height:700-1000mm
    Control Box:Forward/Stop/Reverse,Emergency Stop
    Caster:5'' swivel lockable caster
    Extendable Length:2300-6000mm
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    After-sales Service Provided:Free spare parts
    Video Description
    Product Overview

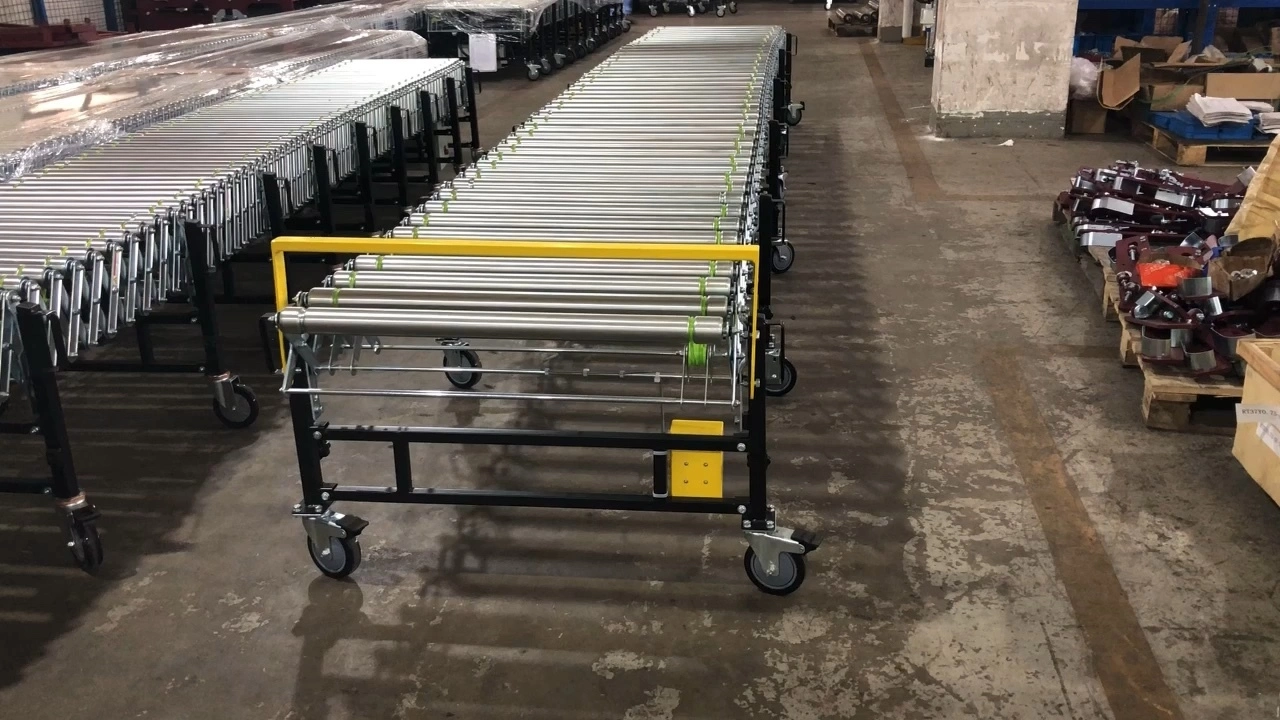

    50KG LOAD O-BELT FLEXIBLE POWERED ROLLER CONVEYOR

    50KG Load O-belt Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height.Having enough power supply by one mini motor per section, it is well qualified to internsively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,docks,etc.
    Specification Roller Width: 600mm or 800mm Adjustable Height: 700-1000mm Extendable Length: 2300-6000mm Load Capacity: 50kg/m Control Box: Forward/Stop/Reverse,Emergency Stop Voltage: 220V,1-Phase or 380V, 3-Phase Motor: 90W, Zhongda brand Caster: 5" swivel lockable casters Side Links: 3.5mm thickness galvanized curved join plates
    Close Condition
    Combine with belt conveyor
    Connect to loading conveyor
    Model List
    Model
    Open Length
    (mm)
    Close Length
    (mm)
    Adjustable Height
    (mm)
    Roller Width
    (mm)
    Motor Power
    (w)
    FPR-O6
    6000
    2300
    700-1000
    600,800
    450
    FPR-O7.2
    7200
    2760
    700-1000
    600,800
    540
    FPR-O8.4
    8400
    3220
    700-1000
    600,800
    630
    FPR-O9.6
    9600
    3680
    700-1000
    600,800
    720
    FPR-O10.8
    10800
    4140
    700-1000
    600,800
    810
    FPR-O12
    12000
    4600
    700-1000
    600,800
    900
    FPR-O13.2
    13200
    5060
    700-1000
    600,800
    990
    FPR-O14.4
    14400
    5520
    700-1000
    600,800
    1080
    FPR-O15.6
    15600
    5980
    700-1000
    600,800
    1170
    FPR-O16.8
    16800
    6440
    700-1000
    600,800
    1260
    FPR-O18
    18000
    6500
    700-1000
    600,800
    1350
    FPR-O19.2
    19200
    6960
    700-1000
    600,800
    1440
    FPR-O20.4
    20400
    7420
    700-1000
    600,800
    1530
    PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug.
    Details Images
    90W Zhongda motor
    Control box with Fwd/Stop/Rev switch
    Speed is adjustable by frequency inverter
    Mobile on 5" swivel casters
    50mm galvanized steel rollers driven by O belt
    Conveyor height adjustable from 700mm to 1000mm
    Easy to take a 180 degree curve
    3.5mm thick reinforced side links
    With handle on the legs to help move the conveyor around
    Application
    Packing and Shipping
    How to choose YiFan's FPR ?

    Other Options

    We can provide various kinds of flexible powered roller conveyor with different rollers material and structure
    FPR-O with rubber coated rollers
    FPR-O with PU coated rollers
    FPR-RV with rubber coated rollers
    FPR-O with side guide wheels
    FPR-O with side stainless steel 201 rollers
    FPR-O with stainless steel 304 rollers


    How to joint 2 or more units together

    Two or more YiFan's flexible powered roller conveyor can joint together quickly and easily by hoos and air plug
    Company Profile
    FAQ

    Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

    How long is the production time?
    YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

    What is the MOQ?
    YIFAN: 1 unit

    Can your company provide OEM & ODM service
    YIFAN: yes

    Can you do customized conveyors?
    YIFAN: yes

    Do you offer installation service abroad?
    YIFAN: yes

    What is the payment terms?
    YIFAN: T/T,LC,

    What is the delivery port?
    YIFAN: Ningbo/Shanghai

    How many years have you been in this industry?
    YIFAN: 10 years

    What is the HS code?
    YIFAN: 84283300,84283920,84283990

    Is YIFAN a trading company or factory?
    YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

    Which industry can your conveyors be applied to?
    YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
    YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

    With excellent R&D team and large scale production, Ningbo YiFan Conveyor Equipment Co.,Ltd leads the modern conveyor manufacturer industry trend. With stainless steel bearings, the product is suitable for wet environments. conveyor manufacturer developed by the company are sold well overseas. With stainless steel bearings, the product is suitable for wet environments.
