Belt conveyor system,telescopic belt conveyor,material conveying equipment retractable belt conveyor
5.0
Start Port:
Sea freight
Payment:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'SLAT CONVEYOR', 'sku_img': None, 'sku_id': '191284229:430360791;'}, {'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'FTBC-4S-6/12', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support, Spare parts
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
Power:Other
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
Belt Material:PVK
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Packing Details:L6100*W1400*H1000mm,4000KGS
Motor Power:0.75kw,2.2kw
Belt Width:600mm,800mm
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Conveyor Height:adjust by hydraulic
Load Capacity:50kg/m
Video Description
Product Overview

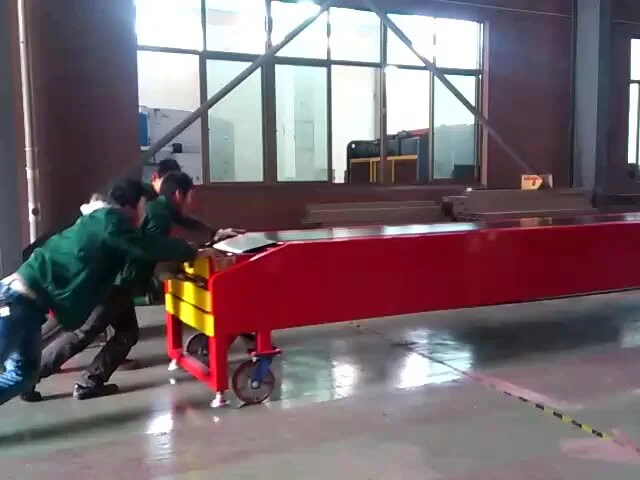

( FIXED TYPE ) TELESCOPIC BELT CONVEYOR
Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.
Technical Parameters | ||
Fixed Length | 6m | |
Extension Length | 12m | |
Total Length | 18m | |
Belt Spec | 600mm width PVK belt | |
Belt Height | 950-2000mm | |
Belt Direction | Forward & reverse | |
Load Capacity | 50kg/m | |
Belt Driven Motor | 2.2 kw. SEW | |
Telescopic Motor | 1.1kw. SEW | |
Hydraulic Power Pack | 1.5kw | |
Machine Total Power | 4.8kw | |
Main Electric Components | Schneider | |
Telescopic Chain | Donghua, Hangzhou | |
Cable Carrier | high quality Chinese brand | |
Power Cord Length | 5-10m | |
Standard Color | BLUE, RAL5015 | |
Voltage | 380V, three phase, 50Hz | |
Drawing
Model: FTBC-4S-6/12-600
Model: FTBC-4S-6/12-800
Model List
Details Image
Company Profile
Ningbo YiFan Conveyor Equipment Co.，Ltd' requirement for the quality and properties of conveyor manufacturer is very high. With stainless steel bearings, the product is suitable for wet environments.
Our conveyor manufacturer keep our company more competitive in the market and promote technology of Truck Loading Conveyor to a fast development. With stainless steel bearings, the product is suitable for wet environments.
