Wholesale high quality 20ft container loading unloading conveyor portable truck loader conveyor factory price-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, E-business Warehouse, Distribution Center, Store, Third Party Logistics, Packaging Company

After Warranty Service:Video technical support, Online support

Local Service Location:None

Showroom Location:None

Condition:New

Material:Carbon Steel

Material Feature:Fire Resistant

Structure:Conveyor System

Place of Origin:NINGBO,China

Brand Name:YiFan

Voltage:220V/380V

Power:other

Dimension(L*W*H):Variable

Certification:CE

Warranty:1 Year

After-sales Service Provided:Free spare parts

Width or Diameter:600mm

Machinery Test Report:Provided

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Motor, Bearing

Weight (KG):1000 kg

Belt Width:600mm

Belt Material:PVC

Adjustable Height:850-1850mm

Conveying Speed:10-20m/min

Motor Power:1.5kw

Hydraulic Unit:1.5kw

Front Tongue:7.2m

Product Description

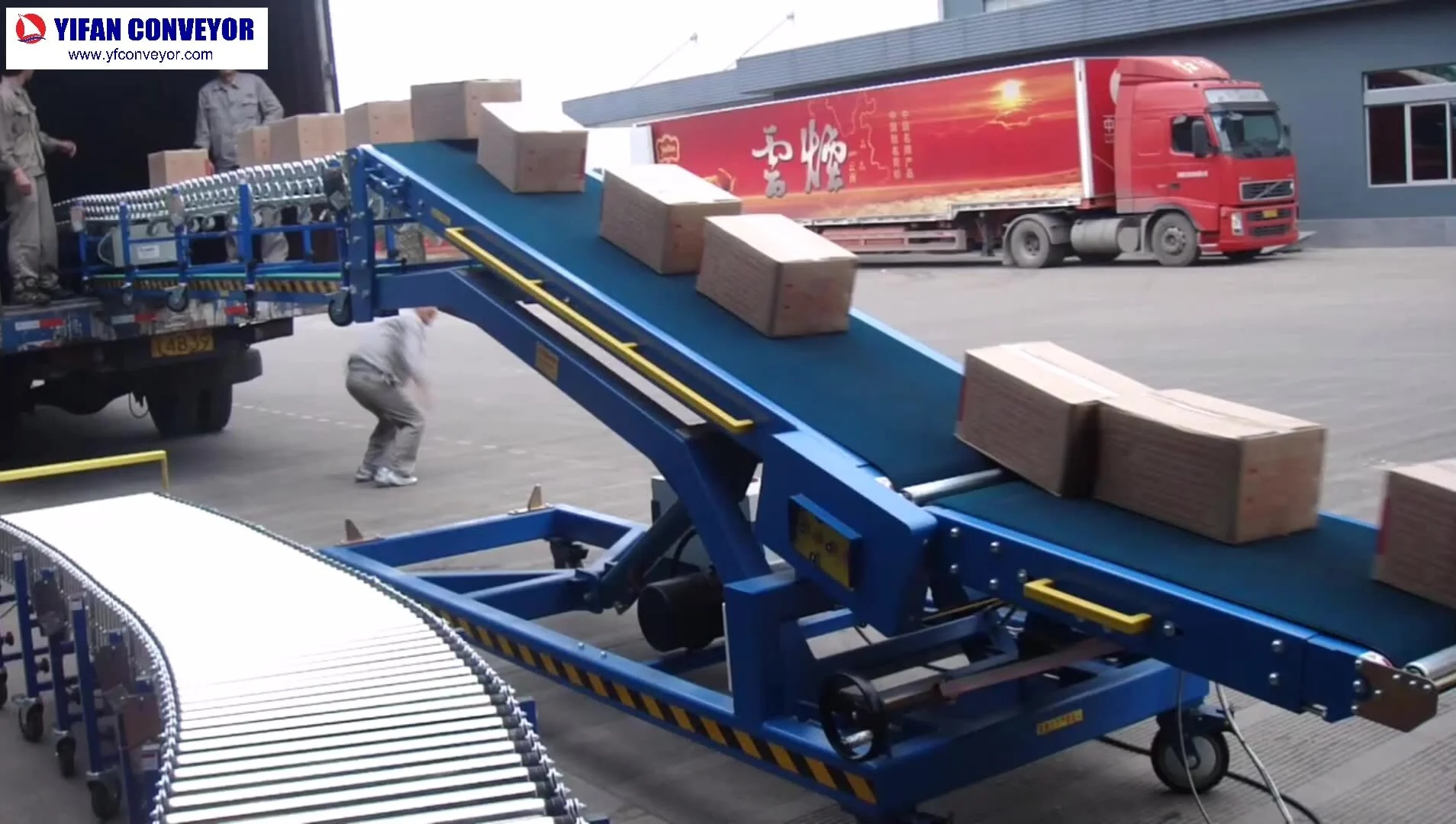

AdjustableTruck Loading Belt Conveyor is one of the most popular lorry loaders.It is extremely flexible it and easy to use, good mobility. The truck loading belt conveyor is mainly composed of an motorized inclined belt conveyor and motorized flexible roller conveyor.The front end is a lifting inclinec belt conveyor, and the products are transported to the back end of the flexible roller conveyor through the belt. The whole process of products will be automatically transported, saving time and labor. The truck loading belt conveyor is also the most economical and convenient one in the truck loading conveyor,.

Operation Video

Technical Parameters

Belt Width	600mm	Load Capacity	50kg/m
Belt Type	3mm thick rough top green PVC belt	Belt Driven Motor	1.5kw
Adjustable Height	850-2320mm	Hydraulic Power Pack	1.5kw
Adjustable Speed	10-20m/min	Frequency Inverter	Delta
Main Electric Elements	Schneider	Caster	D200mm heavy duty lockable swivel PU casters
Frame Construction	Carbon steel, powder coated in BLUE RAL 5015	Power Supply	220V, single phase,50Hz/380V,three phase,50Hz

Details Image

Control Panel: Emergency Stop, Revers, Up, Stop, Down, Forward

Front tongue conveyor combined with inclined belt conveyor which can be removed if not needed.

Slave section can be adjusted manually.

With hydraulic power unit to adjust height.

200 diameter universal swivel PU castors with brake.

Strong enough frame.

How to install it?

1.First remove the roller conveyor and the front tongue frame.

2.Install screws at the joint of the front tongue frame.

3.Align the connecting port of the front tongue frame with the conveyor.

4.The front tongue frame is connected with the conveyor.

5.Place the closed Roller Conveyor on the installed bracket.

6.The hook on the roller conveyor is connected to the conveyor.

Hot Products

Flexible Power Roller Conveyor --O Belt.

O Belt Flexible power roller conveyor is a kind of telescopic power automatic roller conveyor, the conveying speed and supporting leg height can be adjusted.Can be used for warehouse, workshop, factory, port, wharf and other flat bottom goods centralized transport.

Flexible Power Roller Conveyor --V Belt.

V Belt Flexible Motorized Roller Conveyor is more strong than O Belt type. Loading capacity is better than O Belt type.

The side links and legs joint structure is reinforced.

Also suitable for warehouse, workshop, factory, port, wharf and other flat bottom goods centralized transport.

Flexible Gravity Steel Roller Conveyor

Flexible gravity steel roller conveyor is specially designed for conveying different sizes of boxes, boxes, cartons and other flat

base load.This conveyor is very easy to operate quickly in and out of trucks faster, safer and easier to load and unload materials.Suitable for warehouse, airport, wharf, etc

Flexible Gravity Skate Wheel Conveyor

Flexible Gravity skate wheel conveyor is often chosen to convey small and medium sized flat-bottom items in harbor,dock,warehouse
and storehouse,factory,etc.It is extendable,retractable and bendable.The crossed skate-wheels make sure that the conveyed goods will be automatically oriented an not fall down from sides.The conveyor largely facilitates goods delivery work.
