Overview

Quick Details

Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other

Showroom Location:None

Condition:New

Material:Carbon steel

Material Feature:Fire Resistant

Structure:Inclining belt Conveyor

Place of Origin:China

Brand Name:YiFan

Voltage:220V/380V

Power:0.75kw

Warranty:1 Year

Width or Diameter:belt600mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Motor, Gear, Pump, Gearbox

Weight (KG):350 kg

Belt Material:3mm thick black smooth PVC belt

Belt Width:600mm

Belt Direction:forward & reverse

Loading Height:800mm (can be customized)

Discharge Height:1500mm (can be customized)

Casters:heavy duty 6" universal lockable casters

Frame Material:carbon steel, painted

After Warranty Service:Online support

Video Description

Product Overview

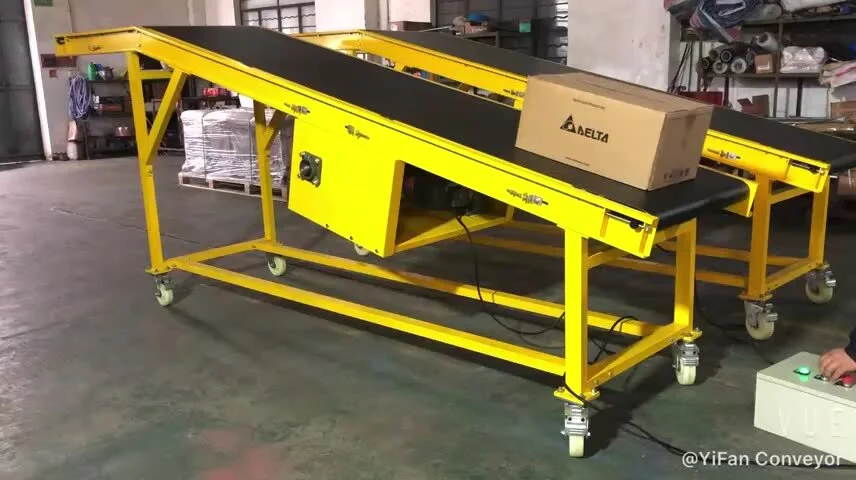

MINI TRUCK LOADING CONVEYOR (TLC-E600)

Reference Drawing

Application Picture

Details Images

Black PVC belt

600mm width

3mm thickness

PVC material

Customized Length

Horizontal length can be customized.

Dismantled Frame

The frame is fixed by bolt, which can be easily dismantled for packing.

Control Box

Power Indicator,Belt Forward,Stop,Reverse

Emergency Stop

Mobile on wheels

The conveyor is easy to move around on 6 inches castors

Successful Project

2012 Project In Mombasa,Kenya

Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.

2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.

2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.

2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.

2016 Project In Kenya Cartons loading unloading container/trucks/trailers

Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags

2016 Project In Kenya Bags stacking mobile belt conveyor

Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
