YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
The fine quality electric belt machine foldable truck loading conveyor1
5.0
Start Port:
Sea freight
MOQ:
[{'sku_name': '50kg/m', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Gravity Conveyor', 'sku_img': None, 'sku_id': '191284229:1875817515;'}, {'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'TLC-F600', 'sku_img': None, 'sku_id': '3:-2;'}]
Lead_Time:
1 - 20(Sets):30(days),>20(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, E-business Warehouse, Distribution Center, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Oil Resistant
Structure:Conveyor System
Place of Origin:NINGBO,China
Brand Name:YiFan
Voltage:220V/380V
Power:other
Dimension(L*W*H):L5000*W600*H700/2500mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2021
Warranty of core components:1 Year
Core Components:Motor, Bearing
Weight (KG):600 kg
Belt Width:600mm
Belt Material:PVC
Conveyor Height:700-2500mm
Adjustable Speed:10-20m/min
Load Capacity:50kg/m
After Warranty Service:Video technical support, Online support
Local Service Location:None
After-sales Service Provided:Free spare parts
Certification:CE
Video Description
Product Overview

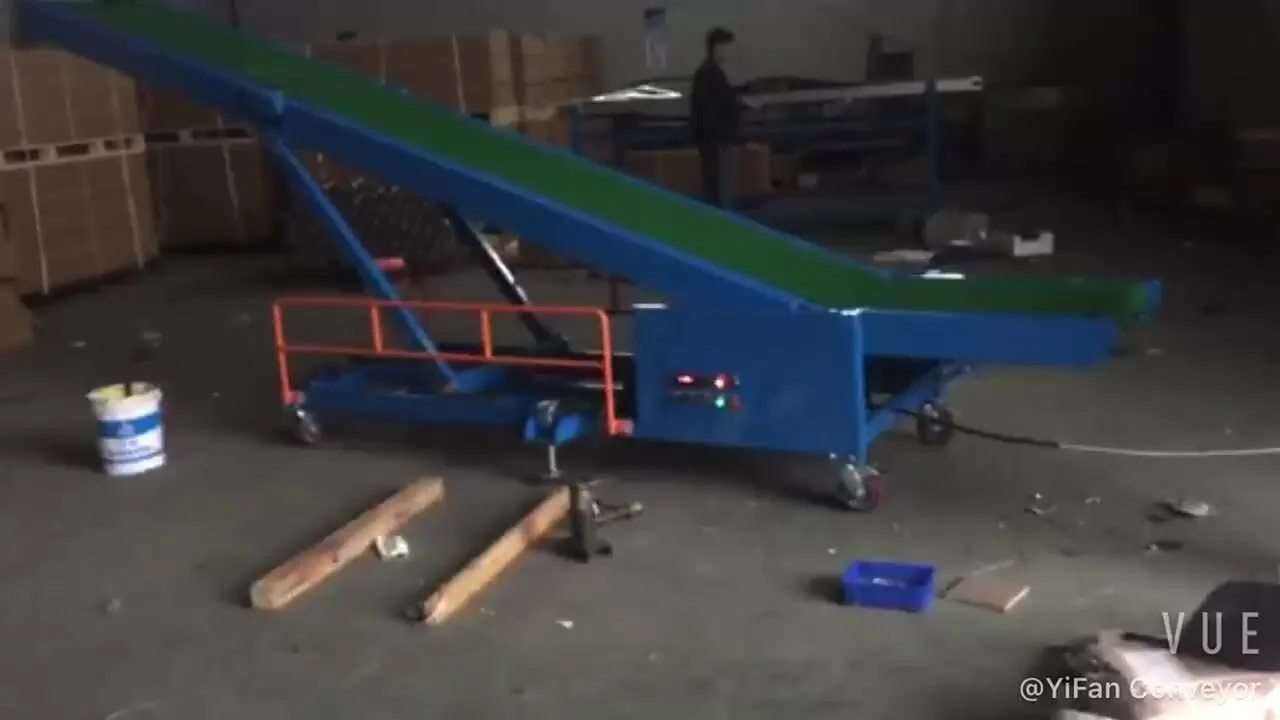

FOLDABLE TRUCK LOADING CONVEYOR （TLC-F600)
Front Elevation
Left elevation
Right Elevation
Drawing
Technical Parameters
1.Belt Specs:W=600,T=5mm,rough top PVC belt
2.Adjustable Speed:10-20m/min,foward & reverse
3.Adjustable Height:700-2500mm
4.Load Capacity:50kg/m
5.Lift Motor:2.2kw;Belt Motor:1.5kw
6.Power Supply:380V,3-PH,50Hz or 220V,1-PH,50Hz
7.Packing Size:L3000*W1200*H1000,3.6CBM,G.W.:730KGS
Packing and Shipping
One 20ft container can load 2nos of TLC-F600
One 40ft container can load 4nos of TLC-F600
Successful Project
2012 Project In Mombasa,Kenya
Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR
The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor
We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600
Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600
Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
2016 Project In Kenya Cartons loading unloading container/trucks/trailers
Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
2016 Project In Kenya Bags stacking mobile belt conveyor
Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
Company Profile
YiFan Conveyor is well established selling conveyor manufacturer to all types of retailers including the Chinese and foreigners. The length of the product can be controllable.
Ningbo YiFan Conveyor Equipment Co.，Ltd delivers high quality conveyor manufacturer and services while ensuring margins. The length of the product can be controllable.
