Warehouse Motorized Conveyor Unloading Loading Conveyor-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company

Showroom Location:None

Condition:New

Material:Carbon steel

Material Feature:Fire Resistant

Structure:Belt Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Voltage:220V/380V, 220V/380V

Power:2.2 KW

Dimension(L*W*H):L4600*W600*H800/2000 mm

Warranty:1 Year

Width or Diameter:600mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter

Weight (KG):600 kg

Belt Material:600mm anti-skiding green PVC belt

Front Tongue:2m powered roller

Loading Height:2000mm

Adjustable Speed:10-20m/min

Discharge Height:800mm

Motor Power:1.5kw,2.2kw

Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop

Caster:5" heavy duty swivel lockable PU casters

Packing Size:L3600*W1100*H1500mm,650KGS

After Warranty Service:Video technical support, Online support

Local Service Location:None

After-sales Service Provided:Free spare parts

Certification:CE

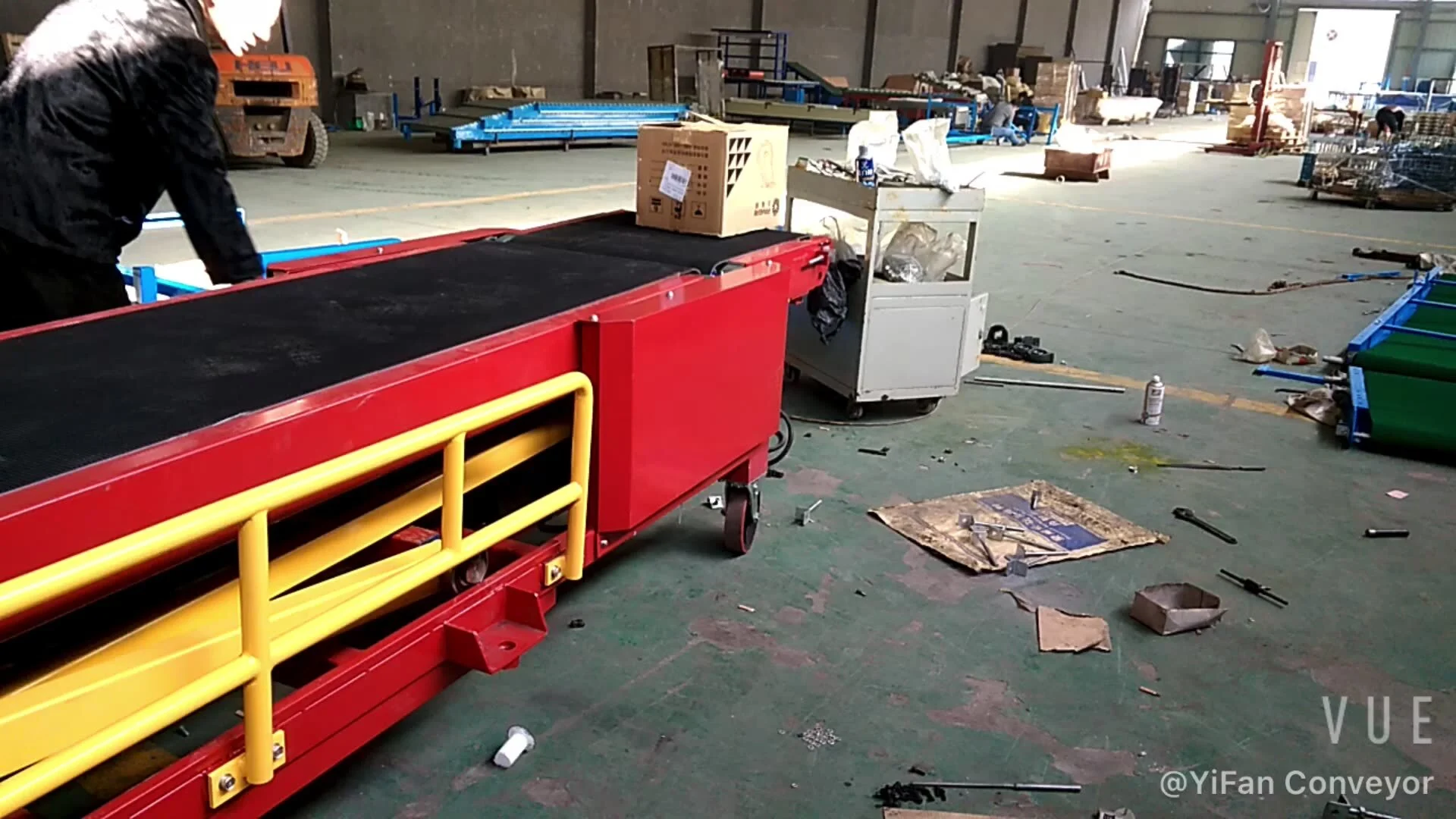

Video Description

Product Overview

SMALL TRUCK LOADING CONVEYOR (TLC-S600)

Small truck loading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.

Part 1 2m extendable powered roller conveyor 700-1000mm adjustable height 10-18m/min adjustable speed independent control box two way operation Part 2 Inclined Belt Conveyor 800-2000mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity

Front Elevation

Left elevation

Right Elevation

Model List
Model	Belt Width (mm)	L1(mm)	L2(mm)	L3(mm)	L(mm)	H1(mm)	H2(mm)
TLC-S600	600	700	2800	1000	2000	800	800-2000
TLC-S800	800	700	2800	1000	2000	800	800-2000

Details Images

With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons

Control panel covered by a lockable door

Flexible conveyor bracket and main conveyor are joint by screws

Mobile on lockable swivel casters

Slave conveyor with adjustable height

With screw handle to fix the conveyor when lift up

With hole for add oil to the bearings

Front flexible conveyor with independent control box

With two side guide on the main body

Successful Project

Company Profile

This product makes work easier and reduces the need for employing many people. This has led to a reduction in human labor costs. The specifications, load capacity, and other special functions can be customized. The product is able to get a big workload done with little energy consumption, which is not only fast but also labor-saving. The specifications, load capacity, and other special functions can be customized.
