vehicle loading truck loading conveyors with flexible roller conveyor
5.0
Start Port:
Sea freight
Payment:
1 - 10(Sets):30(days),11 - 20(Sets):35(days),21 - 30(Sets):40(days),>30(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-2;'}]
Model:
[{'sku_name': 'SLAT CONVEYOR', 'sku_img': None, 'sku_id': '191284229:430360791;'}, {'sku_name': 'Belt Conveyor', 'sku_img': None, 'sku_id': '191284229:-3;'}]
Load Capacity:
[{'sku_name': 'TLC-P600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 4 Sets),Customized packaging (Min. Order: 4 Sets),Graphic customization (Min. Order: 4 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Home Use, Manufacturing Plant, Other, Retail, Hotels, Building Material Shops, Machinery Repair Shops, Farms, Restaurant, Printing Shops, Construction works , Energy & Mining
After Warranty Service:Online support, Video technical support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
Power:1.5 KW
Dimension(L*W*H):L4700*W600*H700/2500 mm
Warranty:1 Year
After-sales Service Provided:Online support
Width or Diameter:600mm
Machinery Test Report:Factory QC Report
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2021
Warranty of core components:1 Year
Core Components:Gear, Gearbox, Motor, Pump
Weight (KG):2000 kg
Belt Width:600mm
Table Width:800mm
Adjustable Height:700-2500mm
Adjustable Speed:10-20m/min
Motor Power:1.5kw,2.2kw
Packing Size:L4900*W1240*H1625mm,850KGS
Belt Material:anti-skiding green PVC belt
Caster:6" heavy duty swivel lockable PU casters
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Product Overview

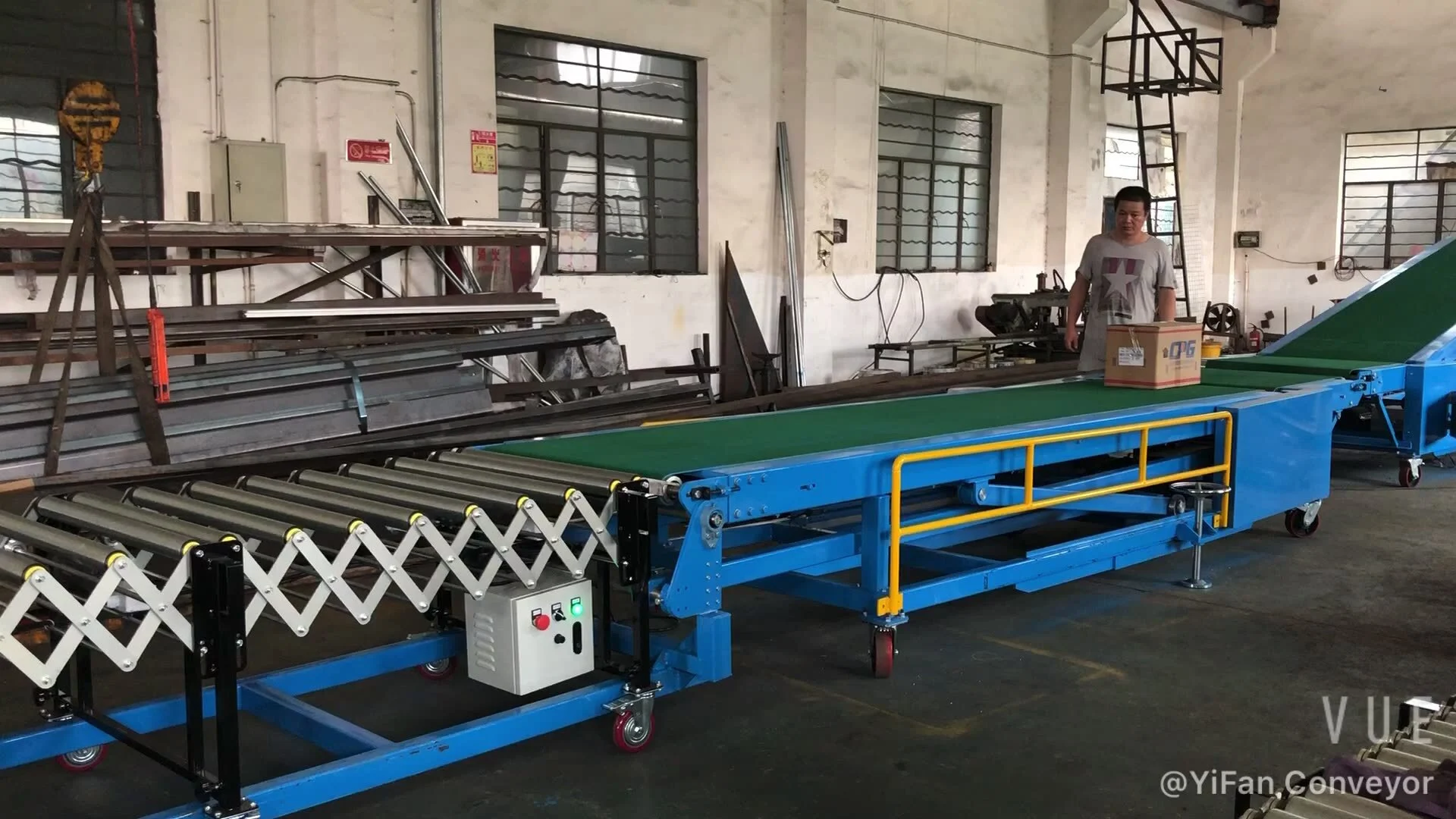

TLC-P600 Truck Loading Conveyor
The Truck Loading Conveyor is consist of two parts:
Front Flexible Tongue and Inclined Belt Conveyor.
It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.
PART 1.Flexible Powered Roller Conveyor-O belt
Size(mm):L4800/1840*W600*H700/1000
Variable Speed(m/min):10-18
Load Capacity(kg/m):50
Power(kw):0.36
*Belt:high quality O ring PU belt
*Roller:Dia 50mm galvanized steel roller,roller center Max 130mm
*Caster:5'' swivel lockable casters
*Frame:3.5mm thickness galvanized curved join plates with better load
*Leg:32×32 outer tube with 25×25 inner tube,spray
paint black
paint black
*Control Box:Forward/Stop/Reverse,Emergency Stop
PART 2.Inclined Belt Conveyor
Size(mm):L4700*W600*H700/2500
Variable Speed(m/min):10-20
Load Capacity(kg/m):50
Power(kw):3.7
Load Capacity(kg/m):50
Power(kw):3.7
*Standard Belt: 600*3mm anti-skiding stripy belt Forbo Seigling
*Option Belt: 600*5mm rough top green PVC belt
*Caster:6" heavy duty swivel lockable PU casters
*Control Panel: Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
*Voltage:220V,1-Phase,50Hz or 380V,3-Phase,50Hz
*Part 1+2 Packing Details:
L4900*W1240*H1625mm,850KGS
Technical Parameters
Model | Belt Width（mm） | L1（mm） | L2（mm） | L3（mm） | L（mm） | H1（mm） | H1（mm） |
TLC-P600 | 600 | 900 | 3700 | 1800 | 4200 | 700 | 700-2500 |
Details Image
With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
Control panel covered by a lockable door
PVC anti-skiding belt
With two side guards
Mobile on lockable swivel casters
Belt tighten system
Flexible conveyor bracket and main conveyor are joint by screws
Screw lift system
Lock the foot to be more stable when rise up
Successful Project
Installation Instructions
SIMILAR PRODUCTS
Company Profile
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service？
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service？
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.
How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
