Fixed Length: 6000mm
Extension: 12000mm
Total Length: 18000mm
Belt Width: 600mm
Base Height: 950mm
Rise Up Height: 2100mm
Load Capacity: 50kg/m
Belt Running: 10-30m/min
Extending Speed: 10m/min
Motor Brand: SEW
YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.

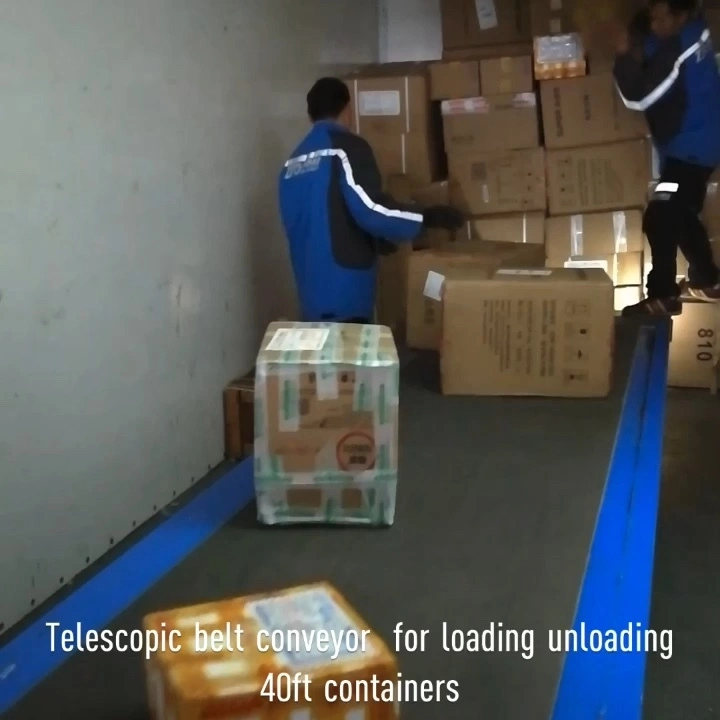

Telescopic belt conveyor with DWS system for loading unloading containers
5.0
Start Port:
Sea freight
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'SLAT CONVEYOR', 'sku_img': None, 'sku_id': '191284229:430360791;'}, {'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'FTBC-4S-6/12-800', 'sku_img': None, 'sku_id': '3:-1;'}]
Lead_Time:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
Power:Other
Dimension(L*W*H):L6000/12000*W600*H950 mm
Warranty:1 Year
Width or Diameter:800mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):3500 kg
Belt Material:PVK
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Packing Details:L6100*W1400*H1000mm,4000KGS
Motor Power:0.75kw,2.2kw
Belt Width:600mm,800mm
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Conveyor Height:adjust by hydraulic
Load Capacity:50kg/m
Video Description
Product Overview
TELESCOPIC BELT CONVEYOR
Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.
Front Elevation
Left elevation
Right Elevation
Model | Belt Width (mm) | Fixed Length (mm) | Extended Length (mm) | Total Length (mm) | Base Height (mm) | Lift Height (mm) |
FTBC-4S-6/12-600 | 600 | 6000 | 12000 | 18000 | 900 | 2100 |
FTBC-4S-6/12-800 | 800 | 6000 | 12000 | 18000 | 900 | 2100 |
Details Image
Model List
Sections | Model | A(m) | B(m） | C(m) | H(mm） | Belt Width(mm) |
3 | FTBC-3S-4/5.4 | 4 | 5.4 | 9.4 | 800 | 600/800 |
FTBC-3S-4.5/6 | 4.5 | 6 | 10.5 | 800 | 600/800 | |
FTBC-3S-5/7 | 5 | 7 | 12 | 800 | 600/800 | |
FTBC-3S-5.4/7.3 | 5.4 | 7.3 | 10.7 | 800 | 600/800 | |
FTBC-3S-6/8.5 | 6 | 8.5 | 14.5 | 800 | 600/800 | |
FTBC-3S-6.5/9.4 | 6.5 | 9.4 | 15.9 | 800 | 600/800 | |
FTBC-3S-7/9.6 | 7 | 9.6 | 16.6 | 800 | 600/800 | |
4 | FTBC-4S-4/7 | 4 | 7 | 11 | 950 | 600/800 |
FTBC-4S-4.5/8.5 | 4.5 | 8.5 | 13 | 950 | 600/800 | |
FTBC-4S-5/9.5 | 5 | 9.5 | 14.5 | 950 | 600/800 | |
FTBC-4S-5.4/10.3 | 5.4 | 10.3 | 15.7 | 950 | 600/800 | |
FTBC-4S-6/12 | 6 | 12 | 18 | 950 | 600/800 | |
FTBC-4S-6.5/12.8 | 6.5 | 12.8 | 19.3 | 950 | 600/800 | |
FTBC-4S-7/14 | 7 | 14 | 21 | 950 | 600/800 |
Sections | Model | A(m) | B(m) | C(m) | H(m) | Belt Width(mm) |
3 | MTBC-3S-4/5.4 | 4 | 5.4 | 9.4 | 1100 | 600/800 |
MTBC-3S-5/7 | 5 | 7 | 12 | 1100 | 600/800 | |
MTBC-3S-6/8.5 | 6 | 8.5 | 14.5 | 1100 | 600/800 | |
4 | MTBC-4S-4/7 | 4 | 7 | 11 | 1200 | 600/800 |
MTBC-4S-5/9.5 | 5 | 9.5 | 14.5 | 1200 | 600/800 | |
MTBC-4S-6/12 | 6 | 12 | 18 | 1200 | 600/800 |
Sections | Model | A(m) | B(m) | L(mm) | H(mm) | Belt Width(mm) |
3 | ITBC-3S-4/5 | 4 | 5 | 3000-4500 | 750/1500 | 600/800 |
ITBC-3S-6/8 | 6 | 8 | 3000-4500 | 750/1500 | 600/800 | |
4 | ITBC-4S-6/12 | 6 | 12 | 3000-4500 | 750/1500 | 600/800 |
ITBC-4S-7/14 | 7 | 14 | 3000-4500 | 750/1500 | 600/800 |
Successful Project
Project in Bangladesh Tea Products Factory
Vertical lifting 60KG tea bags from 2nd floor to first floor and load directly into trucks.
Company Profile
FAQ
Please feel free to contact us at sales@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
Ningbo YiFan Conveyor Equipment Co.，Ltd can tailor our conveyor manufacturer based on customer's requirements. Its front head is equipped with an anti-collision bar.
The achievements all show that YiFan Conveyor's persistence and efforts on quality. Its front head is equipped with an anti-collision bar.
