Telescopic Belt Conveyor
Home  > new category  > Telescopic Belt Conveyor  >

Telescopic belt conveyor truck loading unloading extendable belt conveyor

这里可以自定义设置
Telescopic belt conveyor truck loading unloading extendable belt conveyor
B站不支持收货地址
B站不支持库存规格
Model
Other
MOQ
50KG
Start Port
Sea freight
Certification
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
Lead_Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Load Capacity
FTBC-4S-6/12-800
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:380V
Power:1.5kw
Dimension(L*W*H):L6000/12000*W600*H950 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:CE
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):3500 kg
Belt Material:PVK
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Motor Power:0.75kw,2.2kw
Belt Width:600mm,800mm
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Conveyor Height:adjust by hydraulic
Load Capacity:50kg/m
After Warranty Service:Online support
Frame Material:Q345
Video Description
Product Overview

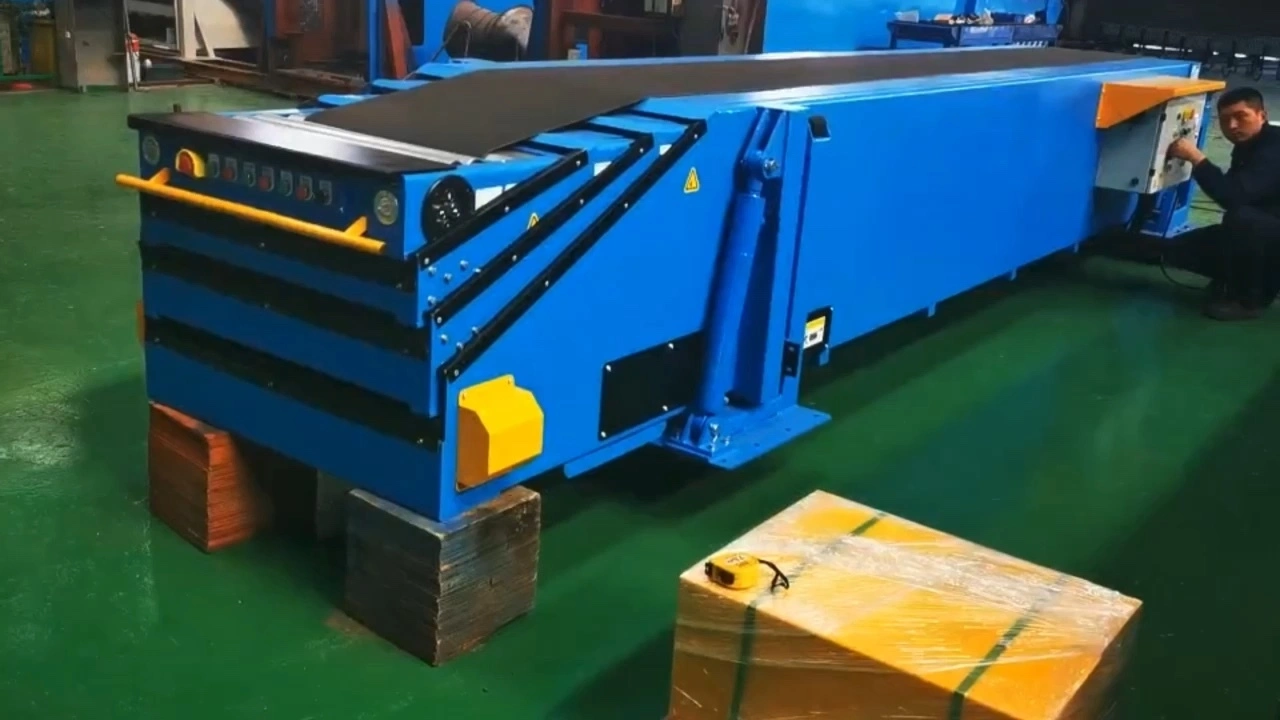

TELESCOPIC BELT CONVEYOR (MODEL: FTBC-4S-6/12-800)

Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.
Fixed Length: 6000mm Extension: 12000mm
Total Length: 18000mm Belt Width: 600/800mm Base Height: 950mm Rise Up Height: 2100mm Load Capacity: 50kg/m Belt Running: 10-30m/min Extending Speed: 10m/min Motor Brand: SEW
Model List
Model
Belt Width
(mm)
Fixed Length
(mm)
Extended Length
(mm)
Total Length
(mm)
Base Height
(mm)
Lift Height
(mm)
FTBC-4S-6/12-600
600
6000
12000
18000
900
2100
FTBC-4S-6/12-800
800
6000
12000
18000
900
2100
Details Image
Successful Project

Project in Bangladesh Tea Products Factory

Vertical lifting 60KG tea bags from 2nd floor to first floor and load directly into trucks.
Company Profile
FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

The use of this product can directly improve production efficiency while reducing overhead costs, which will be a long-run investment for business owners. Its side plates are made of high-quality steel, ensuring maximum strength and durability. One reason for using this product for production is efficiency. It can greatly increase the speed and quality of production. Its side plates are made of high-quality steel, ensuring maximum strength and durability.
