Telescopic belt conveyor systems with operator standing platform
B站不支持收货地址
B站不支持库存规格
Model
SLAT CONVEYOR
MOQ
50KG
Start Port
Sea freight
Certification
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
Lead_Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Load Capacity
FTBC-4S-4/7-800
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:380V
Power:1.5kw
Dimension(L*W*H):L6000/14500*W600*H990/1890 mm
Warranty:1 Year
Width or Diameter:800mm
Machinery Test Report:CE
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):3500 kg
Belt Material:PVK
Belt Width:800mm
Loading Height:1890mm
Load Capacity:60KG/m
Adjustable Speed:10-20m/min
Motor Power:0.75kw,2.2kw
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Belt material:PVK
Operator Platform:optional
After Warranty Service:Video technical support
Video Description
Product Overview


TELESCOPIC BELT CONVEYOR ( MODEL: FTBC-4S-4/7-800 )

Telescopic Belt Conveyor is automatic loading/unloading equipment whose length is controllable widely used in logistics, ports,docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. Itsaves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.

Features
1. In structure, the telescopic conveyor makes the common belt conveyor extendable and retractable freely. The length can be controlled at will by the buttons; and also height adjustment is available if needed.
2. The conveyor can combine other conveying equipment such as lifting conveyors, inflexible roller/belt conveyors and assembly line, in which way an automatic conveying system is complete for production, assembly, storage, loading and unloading of goods.
3. The conveyor can transmit items in both forward and reverse way; and some options in details: either constant or variable in conveying/telescoping speed, either fixed or movable type by adding universal wheels, and belt types of chemical fiber/PVC belt, oil-proof or cutting-proof
Details Image





Main control box
Load, Unload, Stop, Up, Down, Emergency Stop




Schneider VFD
With Schneider VFD for adjust speed




Front control panel
Load, Stop, Unload, Light, Emergency Stop



Protective brushes
With brushes to avoid dusy and small items fall inside the conveyor frame




Durable PVK belt
Adopt hard and durable PVK material belt with long life span

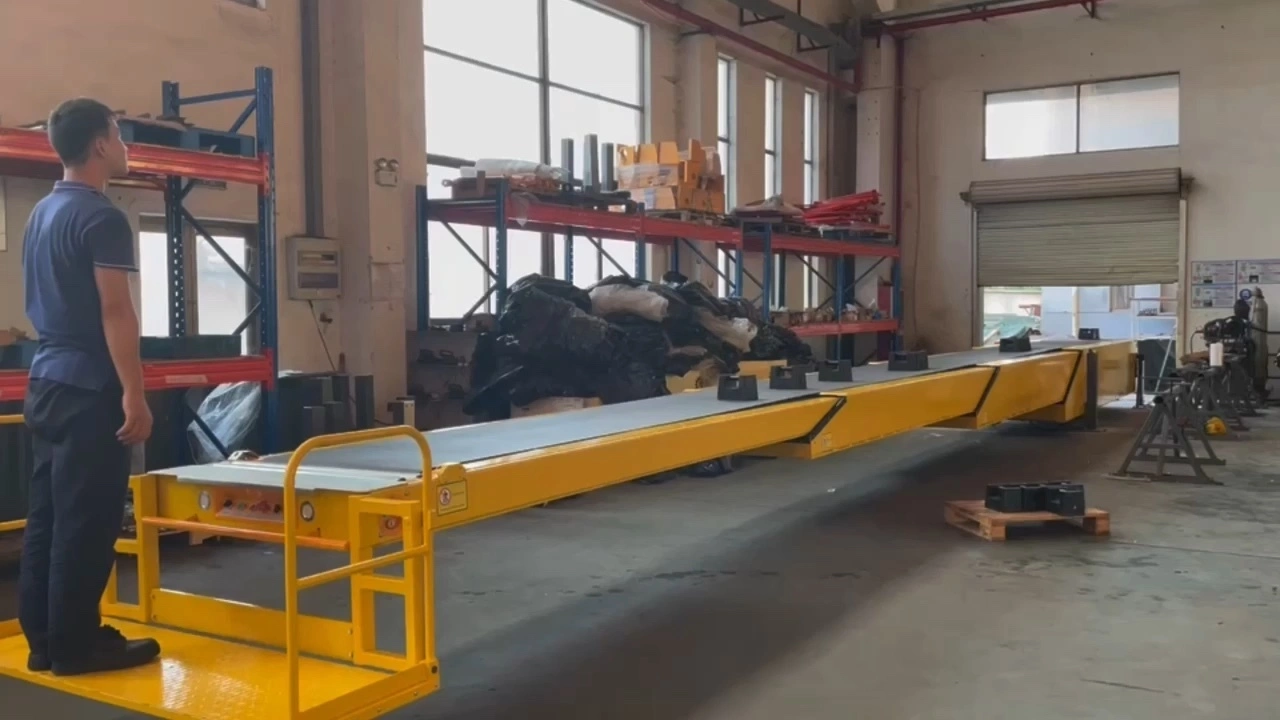

Operator platform
With operator standing platform for easy loading unloading in containers
Reference Drawing
Model List
Sections
Model
A(m)
B(m)
C(m)
H(mm)
Belt Width(mm)





3
FTBC-3S-4/5.4
4
5.4
9.4
800
600/800

FTBC-3S-4.5/6
4.5
6
10.5
800
600/800
FTBC-3S-5/7
5
7
12
800
600/800
FTBC-3S-5.4/7.3
5.4
7.3
10.7
800
600/800
FTBC-3S-6/8.5
6
8.5
14.5
800
600/800
FTBC-3S-6.5/9.4
6.5
9.4
15.9
800
600/800
FTBC-3S-7/9.6
7
9.6
16.6
800
600/800




4
FTBC-4S-4/7
4
7
11
950
600/800
FTBC-4S-4.5/8.5
4.5
8.5
13
950
600/800
FTBC-4S-5/9.5
5
9.5
14.5
950
600/800
FTBC-4S-5.4/10.3
5.4
10.3
15.7
950
600/800
FTBC-4S-6/12
6
12
18
950
600/800
FTBC-4S-6.5/12.8
6.5
12.8
19.3
950
600/800
FTBC-4S-7/14
7
14
21
950
600/800
Sections
Model
A(m)
B(m)
C(m)
H(m)
Belt Width(mm)

3
MTBC-3S-4/5.4
4
5.4
9.4
1100
600/800
MTBC-3S-5/7
5
7
12
1100
600/800
MTBC-3S-6/8.5
6
8.5
14.5
1100
600/800

4
MTBC-4S-4/7
4
7
11
1200
600/800
MTBC-4S-5/9.5
5
9.5
14.5
1200
600/800
MTBC-4S-6/12
6
12
18
1200
600/800
Sections
Model
A(m)
B(m)
L(mm)
H(mm)
Belt Width(mm)
3
ITBC-3S-4/5
4
5
3000-4500
750/1500
600/800
ITBC-3S-6/8
6
8
3000-4500
750/1500
600/800
4
ITBC-4S-6/12
6
12
3000-4500
750/1500
600/800
ITBC-4S-7/14
7
14
3000-4500
750/1500
600/800
Company Profile
FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

This product has attracts numerous customers owing to its huge market prospects. It can help enterprises decrease the cost and increase work efficiency. The product has been inspected on various quality parameters and has been proven to be in line with international standards. It can help enterprises decrease the cost and increase work efficiency.
