    Overview
    Quick Details
    Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
    After Warranty Service:Video technical support, Online support, Spare parts
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Place of Origin:China
    Brand Name:YiFan
    Power:0.75kw,2.2kw
    Dimension(L*W*H):L6000/14500*W600*H990/1890 mm
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:belt600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Table Width:800mm
    Loading Height:1890mm
    Adjustable Speed:10-20m/min
    Discharge Height:990mm
    Motor Power:0.75kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:6" heavy duty swivel lockable PU casters
    Belt material:PVK
    Product Overview

    TBC-P

    Features:
    1.The telescopic belt conveyor is mainly composed of fixed part, movable part, synchronous telescopic thrust mechanism, belt conveyor mechanism, protective rod mechanism and control system. The fixed part and movable part are made of manganese steel with a thickness of 6 mm / 5 mm.

    2.The fore end shall be rigidly constructed to withstand the impact load during loading and unloading of luggage. The length should not be less than 300 mm (gravity roller conveyor inside the telescopic machine), should be zinc coated on the surface of the drum.

    3.It has function of expanding while conveying the goods to improve the conveying efficiency and has the point to point working mode.

    4.The front button has a protective baffle, which can effectively protect the button and prevent the button from being damaged when the belt conveyor is expanding and contracting.

    5.The front end of the telescopic machine is equipped with anti-collision rod.

    6.The front end should be equipped with LED lights to ensure the brightness of the truck during loading and unloading.
    Telescopic belt conveyor systems with operator standing platform 8
    Telescopic belt conveyor systems with operator standing platform 10
    Technical Parameters
    Model Number
    TBC-P
    Fixed Length
    6000mm
    Extension
    8500mm
    Total Length
    14500mm
    Belt Width
    600mm
    Base Height
    990mm
    Rise Up Height
    1990mm
    Load Capacity
    50kg/m
    Belt Running
    10-30m/min
    Extending Speed
    10m/min
    Motor Brand
    SEW
    Details Image
    Telescopic belt conveyor systems with operator standing platform 12
    With Load,Unload,Up,Down,Emergency Stop,Light OFF/ON buttons
    Telescopic belt conveyor systems with operator standing platform 14
    Side control panel for conveyor rise up and down, extend out and retract
    Telescopic belt conveyor systems with operator standing platform 16
    With hydraulic lift system
    Telescopic belt conveyor systems with operator standing platform 18

    High quality control box

    Telescopic belt conveyor systems with operator standing platform 20

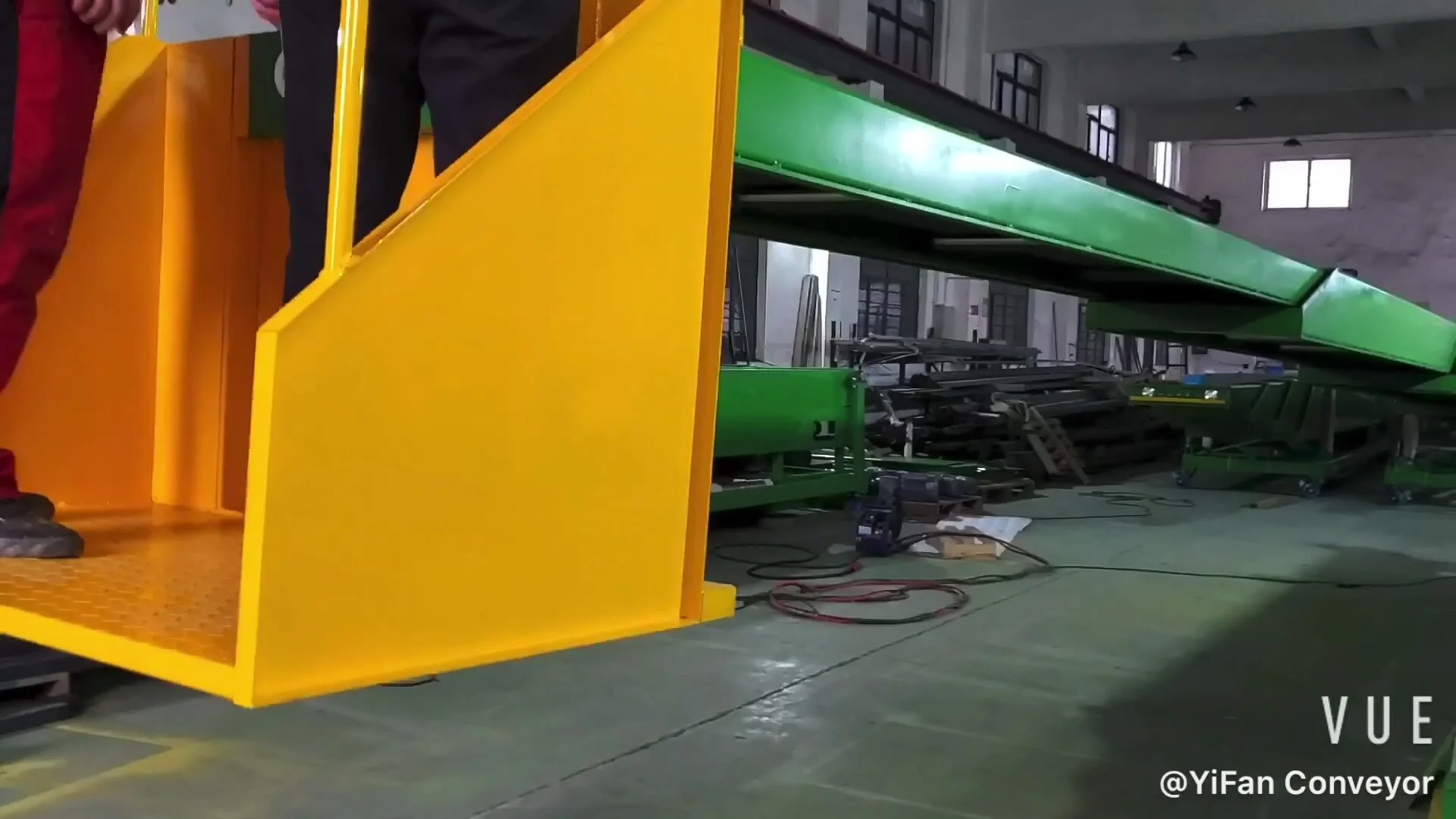

    Operator standing platform


    Telescopic belt conveyor systems with operator standing platform 22

    Robust structure and materials

    Successful Project
    Telescopic belt conveyor systems with operator standing platform 24
    Telescopic belt conveyor systems with operator standing platform 26
    Telescopic belt conveyor systems with operator standing platform 28
    Telescopic belt conveyor systems with operator standing platform 30
    Telescopic belt conveyor systems with operator standing platform 32
    Telescopic belt conveyor systems with operator standing platform 34
    Telescopic belt conveyor systems with operator standing platform 36
    Telescopic belt conveyor systems with operator standing platform 38
    Telescopic belt conveyor systems with operator standing platform 40
