Small Portable Mobile Belt Conveyor Machine for Boxes/Bags Loading Unloading Vehicle

这里可以自定义设置
Small Portable Mobile Belt Conveyor Machine for Boxes/Bags Loading Unloading Vehicle
B站不支持收货地址
B站不支持库存规格
Type
Vertical Conveyor
Load Capacity
50KG
Model Number
TLC-S600
shipping
Sea freight
Customization
Customized logo (Min. Order: 3 Sets),Customized packaging (Min. Order: 3 Sets),Graphic customization (Min. Order: 3 Sets)
Lead_Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V
Power:1.5KW
Dimension(L*W*H):L4600*W600*H800/2000 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:CE
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):600 kg
Belt Material:600mm anti-skiding green PVC belt
Front Tongue:2m powered roller
Adjustable Speed:10-20m/min
Discharge Height:800mm
Lifting Height:1800mm
Motor Power:1.5kw,2.2kw
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Caster:5" heavy duty swivel lockable PU casters
Packing Size:L3600*W1100*H1500mm,650KGS
After Warranty Service:Online support
Video Description
Product Overview

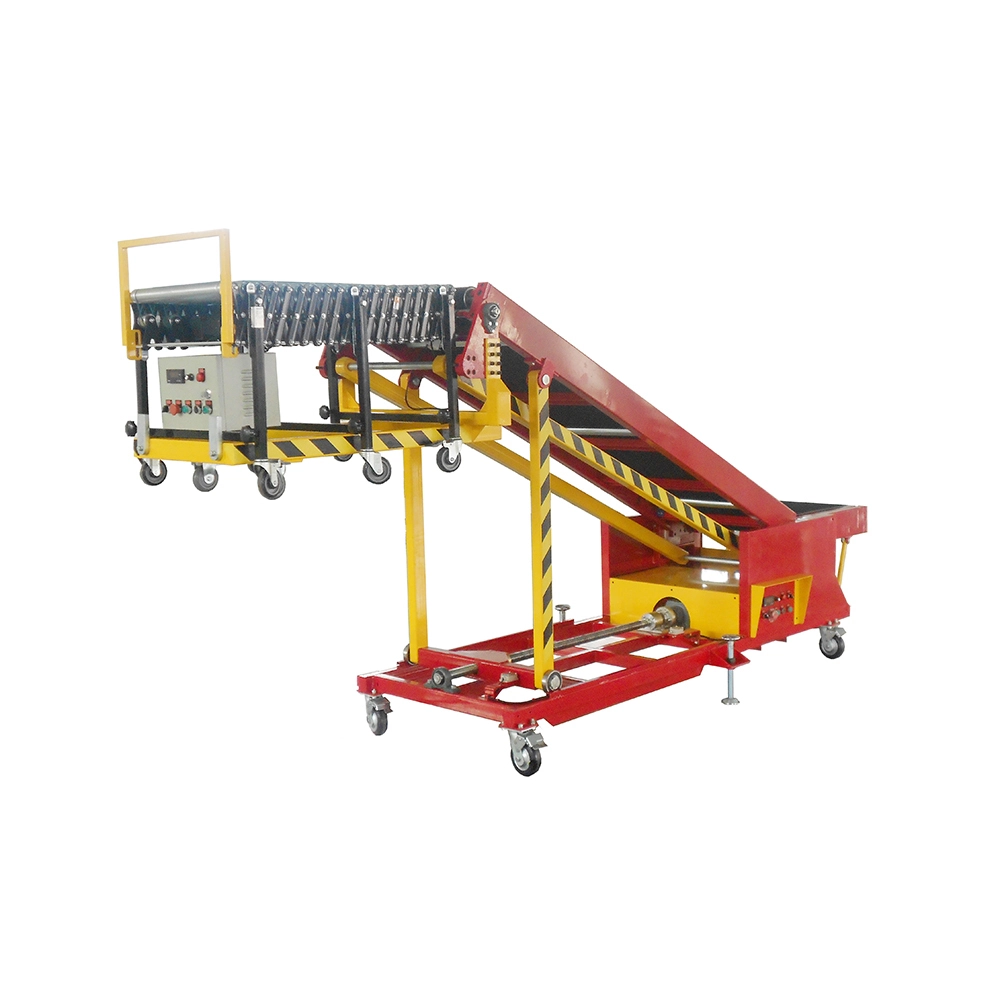

SMALL TRUCK LOADING CONVEYOR (TLC-S600)

Small truck loading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.
Part 1 2m extendable powered roller conveyor 700-1000mm adjustable height 10-18m/min adjustable speed independent control box two way operation Part 2 Inclined Belt Conveyor 800-2000mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity
Front Elevation
Left elevation
Right Elevation
Model List
Model
Belt Width
(mm)
L1(mm)
L2(mm)
L3(mm)
L(mm)
H1(mm)
H2(mm)
TLC-S600
600
700
2800
1000
2000
800
800-2000
TLC-S800
800
700
2800
1000
2000
800
800-2000
Details Images
With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
Control panel covered by a lockable door
Flexible conveyor bracket and main conveyor are joint by screws
Mobile on lockable swivel casters
Slave conveyor with adjustable height
With screw handle to fix the conveyor when lift up
With hole for add oil to the bearings
Front flexible conveyor with independent control box
With two side guide on the main body
