    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
    Power:2.2 KW
    Dimension(L*W*H):L5000*W600*H700/2500 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):600 kg
    Belt Width:600mm
    Belt Material:anti-skiding green PVC belt
    Front Tongue:no
    Adjustable Speed:10-20m/min
    Discharge Height:700mm
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:6" heavy duty swivel lockable PU casters
    Packing Size:L3000*W1200*H100mm
    Video Description
    Product Overview

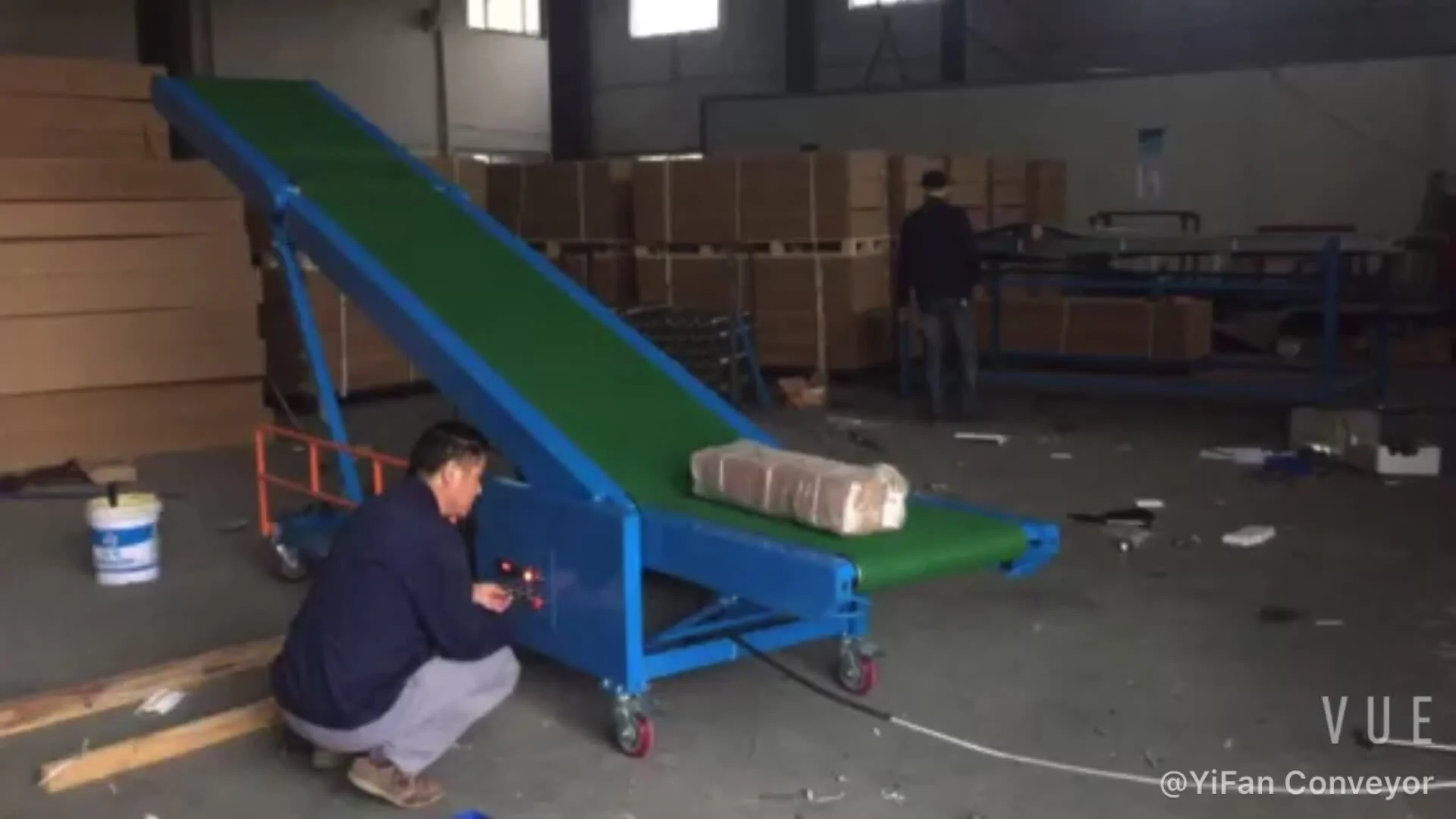

    FOLDABLE TRUCK LOADING CONVEYOR (TLC-F600)


    Small load conveyor belt truck loading lorry loading conveyor belt 7
    Small load conveyor belt truck loading lorry loading conveyor belt 9
    Front Elevation
    Small load conveyor belt truck loading lorry loading conveyor belt 11
    Left elevation
    Small load conveyor belt truck loading lorry loading conveyor belt 13
    Right Elevation
    Drawing
    Small load conveyor belt truck loading lorry loading conveyor belt 15
    Technical Parameters
    1.Belt Specs:W=600,T=5mm,rough top PVC belt 2.Adjustable Speed:10-20m/min,foward & reverse 3.Adjustable Height:700-2500mm 4.Load Capacity:50kg/m 5.Lift Motor:2.2kw;Belt Motor:1.5kw 6.Power Supply:380V,3-PH,50Hz or 220V,1-PH,50Hz 7.Packing Size:L3000*W1200*H1000,3.6CBM,G.W.:730KGS
    Packing and Shipping
    One 20ft container can load 2nos of TLC-F600
    One 40ft container can load 4nos of TLC-F600
    Small load conveyor belt truck loading lorry loading conveyor belt 17
    Small load conveyor belt truck loading lorry loading conveyor belt 19
    Small load conveyor belt truck loading lorry loading conveyor belt 21
    Small load conveyor belt truck loading lorry loading conveyor belt 23
    Small load conveyor belt truck loading lorry loading conveyor belt 25
    Successful Project

    2012 Project In Mombasa,Kenya

    Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
    Small load conveyor belt truck loading lorry loading conveyor belt 27
    Small load conveyor belt truck loading lorry loading conveyor belt 29
    Small load conveyor belt truck loading lorry loading conveyor belt 31
    Small load conveyor belt truck loading lorry loading conveyor belt 33

    2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

    We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
    Small load conveyor belt truck loading lorry loading conveyor belt 35
    Small load conveyor belt truck loading lorry loading conveyor belt 37
    Small load conveyor belt truck loading lorry loading conveyor belt 39
    Small load conveyor belt truck loading lorry loading conveyor belt 41

    2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

    Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
    Small load conveyor belt truck loading lorry loading conveyor belt 43
    Small load conveyor belt truck loading lorry loading conveyor belt 45
    Small load conveyor belt truck loading lorry loading conveyor belt 47
    Small load conveyor belt truck loading lorry loading conveyor belt 49

    2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

    Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
    Small load conveyor belt truck loading lorry loading conveyor belt 51
    Small load conveyor belt truck loading lorry loading conveyor belt 53
    Small load conveyor belt truck loading lorry loading conveyor belt 55
    Small load conveyor belt truck loading lorry loading conveyor belt 57

    2016 Project In Kenya Cartons loading unloading container/trucks/trailers

    Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
    Small load conveyor belt truck loading lorry loading conveyor belt 59
    Small load conveyor belt truck loading lorry loading conveyor belt 61
    Small load conveyor belt truck loading lorry loading conveyor belt 63
    Small load conveyor belt truck loading lorry loading conveyor belt 65

    2016 Project In Kenya Bags stacking mobile belt conveyor

    Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
    Small load conveyor belt truck loading lorry loading conveyor belt 67
    Small load conveyor belt truck loading lorry loading conveyor belt 69
    Small load conveyor belt truck loading lorry loading conveyor belt 71
    Small load conveyor belt truck loading lorry loading conveyor belt 73
    Company Profile
    Small load conveyor belt truck loading lorry loading conveyor belt 75
    Small load conveyor belt truck loading lorry loading conveyor belt 77
    Small load conveyor belt truck loading lorry loading conveyor belt 79
    Small load conveyor belt truck loading lorry loading conveyor belt 81
    Small load conveyor belt truck loading lorry loading conveyor belt 83
    Small load conveyor belt truck loading lorry loading conveyor belt 85
    This product fulfills consumer demands with competitive advantages. Its robust solid welded construction ensures its stability and safety when running. Ningbo YiFan Conveyor Equipment Co.,Ltd undertakes to ensure that its production complies with the quality assurance system. Its robust solid welded construction ensures its stability and safety when running.
