Shipping container loading and unloading telescopic conveyor belt
B站不支持收货地址
B站不支持库存规格
Model
Other
MOQ
50KG
Start Port
Sea freight
Certification
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
Lead_Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Load Capacity
ITBC-3S-5/7-800
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V
Power:Other
Warranty:1 Year
Width or Diameter:500mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):3500 kg
Belt Material:PVK
Control Panel:Load/Unload,Up/Down,Stop,Emergency Stop
Motor Power:0.75kw,2.2kw
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Adjustable Height:1800-2600mm
After Warranty Service:Video technical support
After-sales Service Provided:Free spare parts
Video Description
Product Overview


TELESCOPIC BELT CONVEYOR ( MODEL: ITBC-3S-5/7-800 )

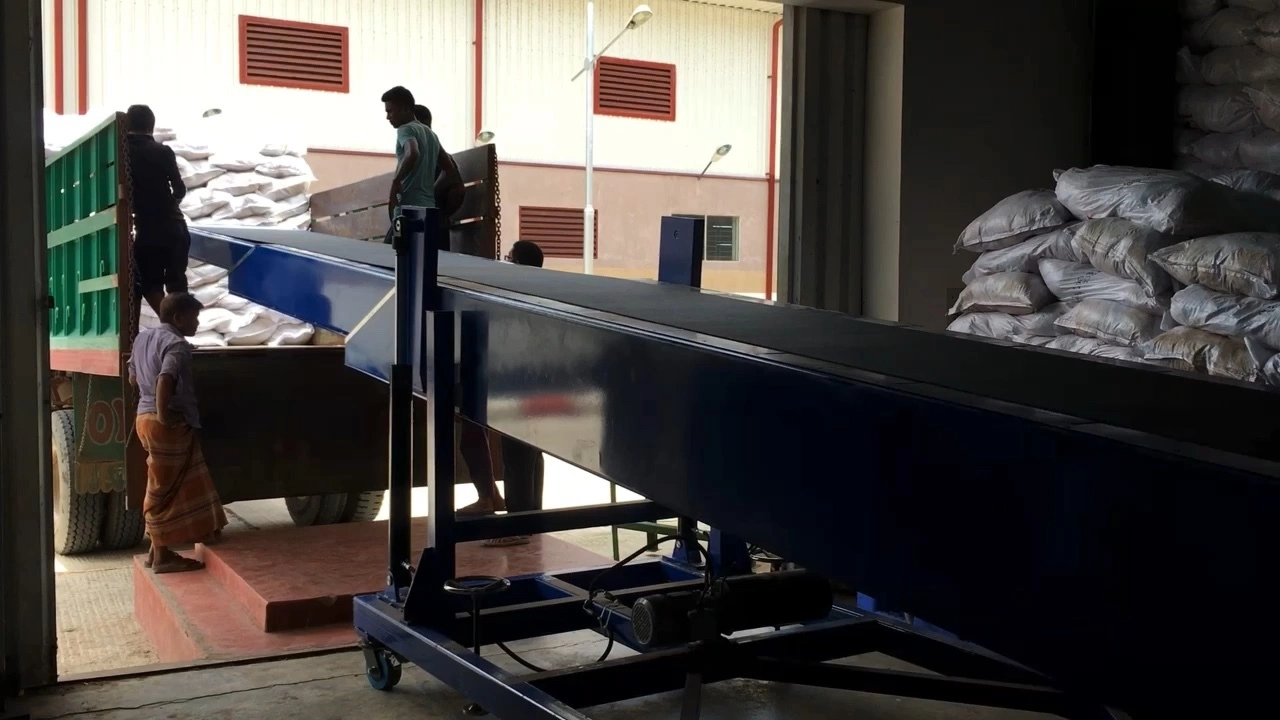

Telescopic Belt Conveyor is automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.

Features
1. In structure, the telescopic conveyor makes the common belt conveyor extendable and retractable freely. The length can be controlled at will by the buttons; and also height adjustment is available if needed.
2. The conveyor can combine other conveying equipment such as lifting conveyors, inflexible roller/belt conveyors and assembly line, in which way an automatic conveying system is complete for production, assembly, storage, loading and unloading of goods.
3. The conveyor can transmit items in both forward and reverse way; and some options in details: either constant or variable in conveying/telescoping speed, either fixed or movable type by adding universal wheels, and belt types of chemical fiber/PVC belt, oil-proof or cutting-proof
Details Image




Main control box

Load, stop, unload, Light ON/OFF, Emergency stop




Schneider VFD
With Schneider VFD for adjust speed



Hydraulic Lift
With hydraulic power unit for adjust height




Joint fleixble roller conveyor
Telescopic belt conveyor can combine with flexible roller conveyor to extend inside the warehouse




Mobile on wheels
With heavy duty movable castors
Reference Drawing
Model List
Sections
Model
A(m)
B(m)
C(m)
H(mm)
Belt Width(mm)





3
FTBC-3S-4/5.4
4
5.4
9.4
800
600/800

FTBC-3S-4.5/6
4.5
6
10.5
800
600/800
FTBC-3S-5/7
5
7
12
800
600/800
FTBC-3S-5.4/7.3
5.4
7.3
10.7
800
600/800
FTBC-3S-6/8.5
6
8.5
14.5
800
600/800
FTBC-3S-6.5/9.4
6.5
9.4
15.9
800
600/800
FTBC-3S-7/9.6
7
9.6
16.6
800
600/800




4
FTBC-4S-4/7
4
7
11
950
600/800
FTBC-4S-4.5/8.5
4.5
8.5
13
950
600/800
FTBC-4S-5/9.5
5
9.5
14.5
950
600/800
FTBC-4S-5.4/10.3
5.4
10.3
15.7
950
600/800
FTBC-4S-6/12
6
12
18
950
600/800
FTBC-4S-6.5/12.8
6.5
12.8
19.3
950
600/800
FTBC-4S-7/14
7
14
21
950
600/800
Sections
Model
A(m)
B(m)
C(m)
H(m)
Belt Width(mm)

3
MTBC-3S-4/5.4
4
5.4
9.4
1100
600/800
MTBC-3S-5/7
5
7
12
1100
600/800
MTBC-3S-6/8.5
6
8.5
14.5
1100
600/800

4
MTBC-4S-4/7
4
7
11
1200
600/800
MTBC-4S-5/9.5
5
9.5
14.5
1200
600/800
MTBC-4S-6/12
6
12
18
1200
600/800
Sections
Model
A(m)
B(m)
L(mm)
H(mm)
Belt Width(mm)
3
ITBC-3S-4/5
4
5
3000-4500
750/1500
600/800
ITBC-3S-6/8
6
8
3000-4500
750/1500
600/800
4
ITBC-4S-6/12
6
12
3000-4500
750/1500
600/800
ITBC-4S-7/14
7
14
3000-4500
750/1500
600/800
Company Profile
FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

Having passed the quality assurance, conveyor manufacturer is of high reliability. High-quality steel rollers ensure a smooth transfer. Extending in all directions, the sales network of YiFan Conveyor has been much more mature now. High-quality steel rollers ensure a smooth transfer.
