Removable Inclined Truck belt conveyor with walking system for loading and unloading
5.0
Start Port:
Sea freight
Payment:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Vertical Conveyor', 'sku_img': None, 'sku_id': '191284229:1875817511;'}, {'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'TLC-W800', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
After Warranty Service:Video technical support, Online support, Spare parts
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Inclining belt Conveyor
Place of Origin:China
Brand Name:YiFan
Voltage:220V/380V
Power:2.2kw
Dimension(L*W*H):L6800*W800*H2500 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:800mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2021
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):700 kg
Belt Width:800mm
Belt Material:5mm rough top black PVC belt
Adjustable Height:700-2500mm
Adjustable Speed:10-20m/min
Motor Power:0.75kw,2.2kw
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Caster:250mm diameter nylon reinforced wheels
Packing Size:L6800*W800*H2500 mm
Others:With head anti-collision bar and LED Lights
Video Description
Product Overview

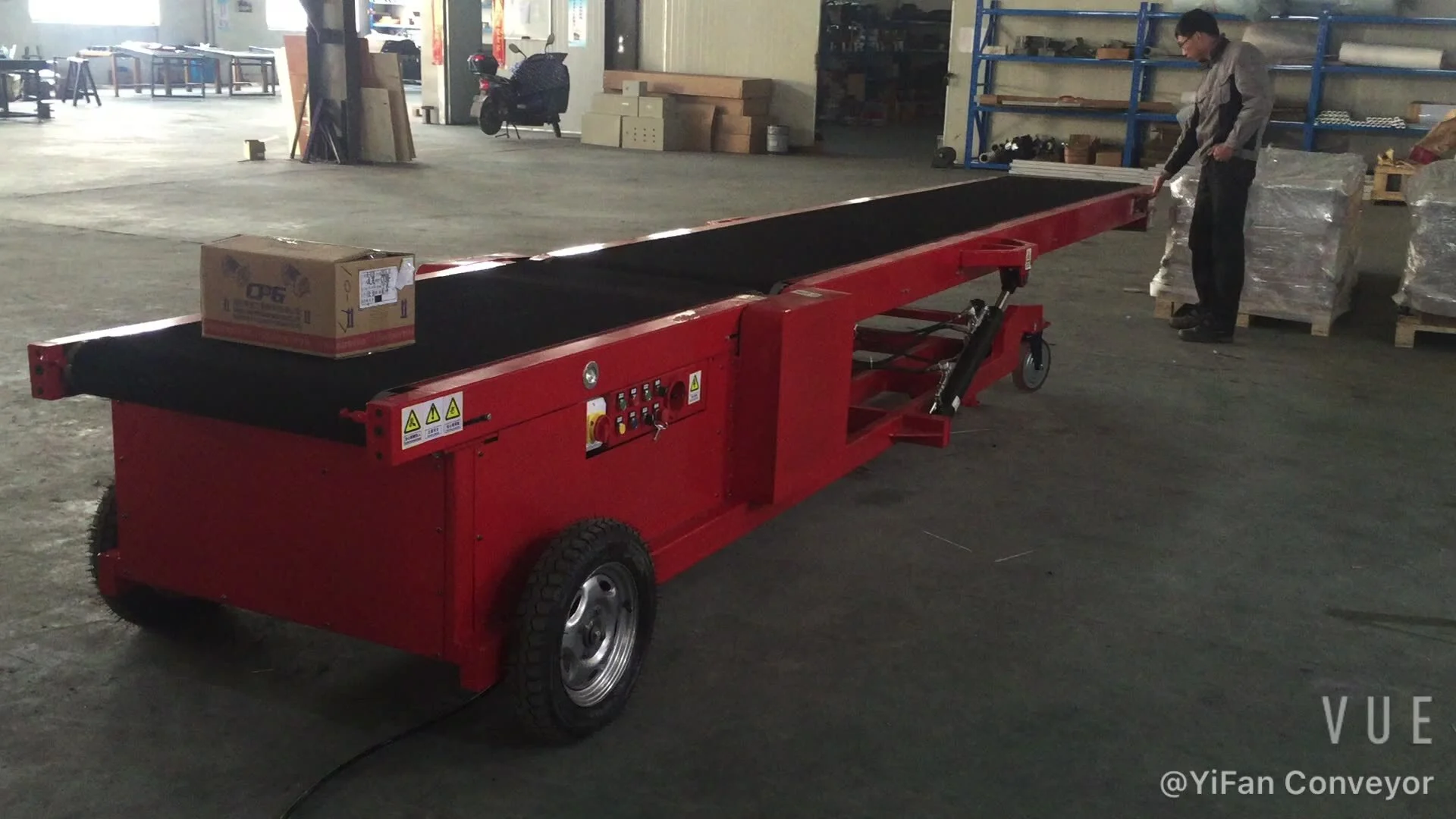

AUTO WALKING TRUCK LOADING CONVEYOR （TLC-W800）
YiFan loading conveyor manufacturer produces a number of different product series, including trailers/vans/trucks/containers unloading conveyor.Closely following the market trend, YiFan uses advanced production equipment and manufacturing technology to produce the truck loading and unloading conveyor.
YiFan's TLC-W800 truck loading conveyor is an AUTO-WALKING loading conveyor. It is very popular to automatically load/unload goods in and out containers in warehouse without loading docks.The mechanized operation largely increases work efficiency, relieves labor intensity and also reduces cost for modern enterprises in a wide range of applications. It facilitates goods handling work and also provides advantages to advanced production, modernized management and safe operation.
Technical Parameters
Belt:5mm thick rough top black PVC belt
Belt Driven Motor: 2.2kw, SEW
Auto Walk Motor: 0.75kw, SEW
Hydraulic Power Unit: 1.5kw
Frequency Inverter: Delta
Belt Running Speed: 10-20m/min
Walking Speed: 12m/min
Load Capacity: 50kg/m
Frame Construction: carbon steel, paint
Wheels: 250mm dia Nylon reinforced wheels
With head anti-collision bar and LED Lights
Details Image
With Load,Unload,Up,Down,Stop,Emergency Stop,Light ON/OFF
The main electric elements is installed in the control box
Load,Unload,Up,Down,Emergency Stop
The conveyor can auto move around in the warehouse
Successful Project
Customer Inspection
Company Profile
With the use of this product, the product can replace workers to finish harmful or dangerous work tasks, allowing them to enjoy a safe working environment. Its special design on the side prevents operators from falling into it.
This product can make the work environment safer as having it means having fewer employees who perform tasks that can be dangerous and prone to injury. Its special design on the side prevents operators from falling into it.
