Fixed Length: 6000mm
Extension: 8000mm
Total Length: 14000mm
Belt Width: 600mm
Base Height: 990mm
Rise Up Height: 1990mm
Load Capacity: 50kg/m
Belt Running: 10-30m/min
Extending Speed: 10m/min
Motor Brand: SEW
YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
Professional manufacture cheap system 3 stages mobile telescopic belt conveyor
5.0
Start Port:
Sea freight
Payment:
1 - 20(Sets):30(days),>20(Sets):Negotiable(days)
MOQ:
60kg/m
Model:
Gravity Conveyor
Load Capacity:
TBC-3S-6/8-600
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, E-business Warehouse, Distribution Center, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Plastic
Material Feature:Oil Resistant
Structure:Conveyor System
Place of Origin:NINGBO,China
Brand Name:YiFan
Power:other
Dimension(L*W*H):Variable
Certification:ISO,CE
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2019
Warranty of core components:1 Year
Core Components:Motor, Bearing
Weight (KG):50 kg
Product name:3 Stages Mobile Telescopic Belt Conveyor
Video Description
Product Overview
TELESCOPIC BELT CONVEYOR ( MTBC-3S-6/8-600 )

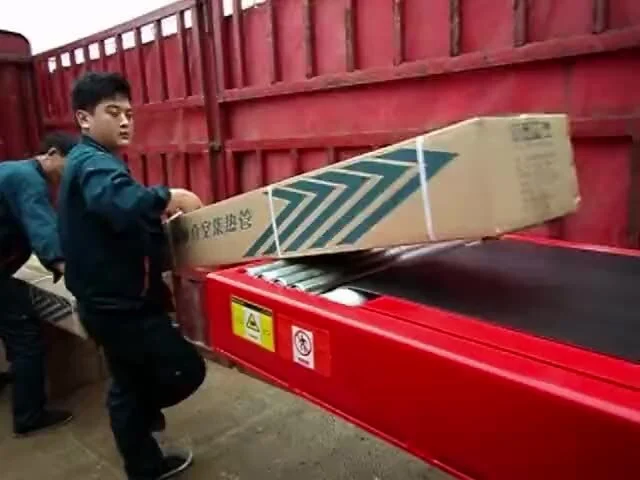

20ft Container Loading Unloading Movable Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.
Front Elevation
Left elevation
Right Elevation
Model List
Model | Belt Width (mm) | Fixed Length (mm) | Extended Length (mm) | Total Length (mm) | Base Height (mm) | Lift Height (mm) |
MTBC-3S-6/8-600 | 600 | 6000 | 8000 | 14000 | 990 | 1990 |
MTBC-3S-6/8-800 | 800 | 6000 | 8000 | 14000 | 990 | 1990 |
Details Images
With Load,Unload,Up,Down,Emergency Stop,Light OFF/ON buttons
Side control panel for conveyor rise up and down, extend out and retract
With hydraulic lift system
High quality control box
Main control box with start,stop,
extend,retract,up,down buttons
With Schnider frequency inverter
Successful Project
Project in Bangladesh Tea Products Factory
Vertical lifting 60KG tea bags from 2nd floor to first floor and load directly into trucks.
One of our customers said: 'Thanks to its fully advanced operation system, this product has greatly helped me reduces labor costs. Equipped with a PLC control, it ensures high efficiency.
The product effectively reduces the need for more workers and reduces the chances of accidents and injuries in a working environment. Equipped with a PLC control, it ensures high efficiency.
