Specification
Standard Width: 600mm
Close Length: 4700mm
Open Length: 13500mm
Length in vehicle: 10000mm
Vehcile Tailboard Height: 1250-1600mm
Load Height in vehilce: 700/900mm
Discharge height outside vehicle: 1500/1800mm
YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
Portable telescopic roller bed conveyor for truck unloading1
5.0
Start Port:
Sea freight
MOQ:
[{'sku_name': '50KG/m', 'sku_img': None, 'sku_id': '100005813:-2;'}]
Model:
[{'sku_name': 'roller conveyor', 'sku_img': None, 'sku_id': '191284229:-3;'}]
Load Capacity:
[{'sku_name': 'TBR-13.5', 'sku_img': None, 'sku_id': '3:-1;'}]
Lead_Time:
1 - 20(Sets):15(days),21 - 50(Sets):25(days),51 - 100(Sets):35(days),>100(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:NO POWER
Power:Other
Dimension(L*W*H):L6900*W600*H700/1000 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Other
Weight (KG):400 kg
Standard Width:600mm
Close Length:4700mm
Open Length:13500mm
Length in vehicle:10000mm
Vehicle Tailboard:1250-1600mm
Load height in vehicle:700/900mm
Discharge height outside vehicle:1500/1800mm
Rollers in transfer section:25mm galvanized steel rollers
Rollers in inpact section:50mm galvanized steel rollers
Rollers in middle section:50mm double PVC rollers
Product Overview
Robust Extendable Gravity Roller Conveyor for Unloading Container Vehicle of all size
Gravity feed telescopic roller conveyor is a simple arrangement of several sections of gravity roller tracks.It is the most
economic helpful solution for loading and unloading goods in warehouses.This gravity conveyor is a development of the highly successful telescopic mounted on a large robust box section chassis with an adjustable platform which suits most tailboard heights. Fully welded steel construction giving stability & strength. Low inertia 50mm dia PVC rollers set at 75mm centers allows transportation small & large parcels. Smooth transfer between decks is achieved by a series of 25mm dia steel rollers within a transfer slider section. Intended for off-loading only without the need of a loading dock, the telescopic can be used in conjunction with other conveyor from our extensive range to reach all areas of the warehouse.
economic helpful solution for loading and unloading goods in warehouses.This gravity conveyor is a development of the highly successful telescopic mounted on a large robust box section chassis with an adjustable platform which suits most tailboard heights. Fully welded steel construction giving stability & strength. Low inertia 50mm dia PVC rollers set at 75mm centers allows transportation small & large parcels. Smooth transfer between decks is achieved by a series of 25mm dia steel rollers within a transfer slider section. Intended for off-loading only without the need of a loading dock, the telescopic can be used in conjunction with other conveyor from our extensive range to reach all areas of the warehouse.
Left Elevation
Front Elevation
Right Elevation
Reference Drawing

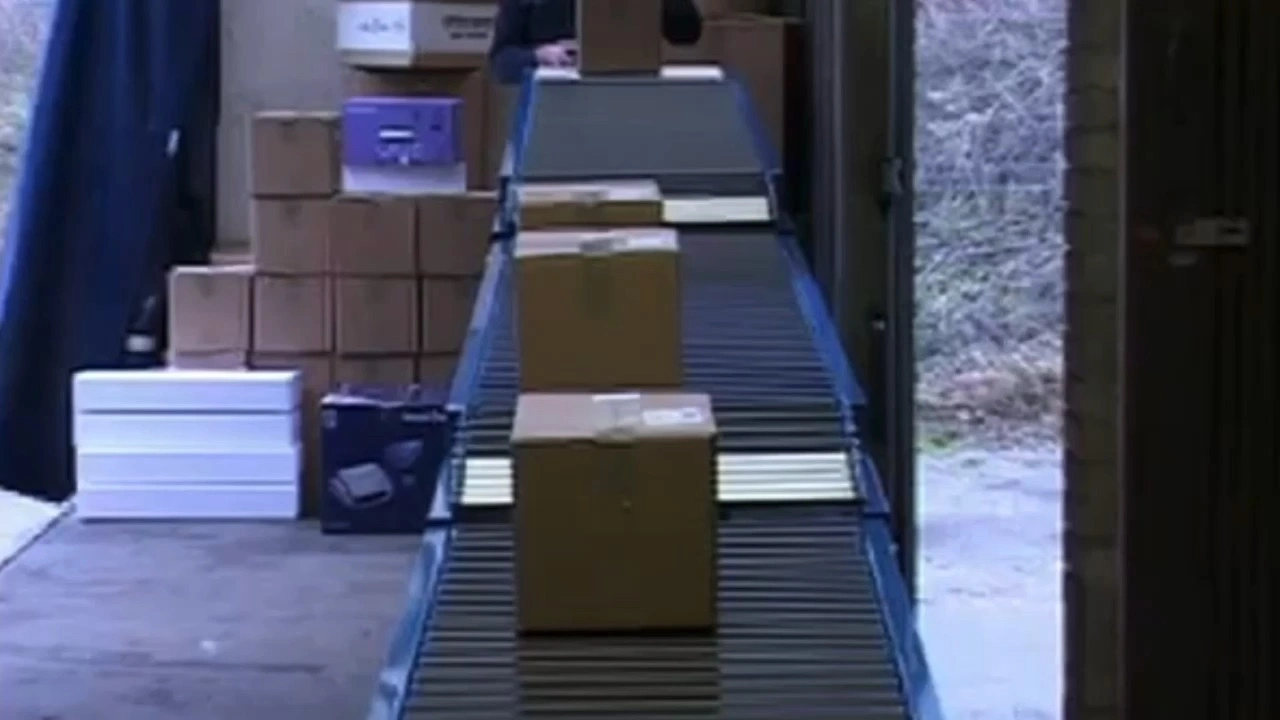

Application
Packing and Shipping
Lay the conveyor roller surface one by one on the pallet.
Wrap with buble film and fixed well by bandages.
Lay the conveyor one by one on the pallet.
Wrap with buble film and fixed well by bandages.
Company Profile
FAQ
Please feel free to contact us at sales@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
The development of this product deserves long-term attention. By using the product, the time for carrying goods back and forth can be saved a lot.
With advanced technology, perfect quality, and first-class service, Ningbo YiFan Conveyor Equipment Co.，Ltd has won unanimous praise from customers at home and abroad. By using the product, the time for carrying goods back and forth can be saved a lot.
