    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Heat Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V, 220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L4600*W600*H800/2000 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2021
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Gearbox, Frequency Inverter
    Weight (KG):600 kg
    Belt Width:600mm or 800mm
    Belt Material:anti-skiding black PVC belt
    Adjustable Speed:10-20m/min
    Adjustable Height:800-2000mm
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:6" heavy duty swivel lockable PU casters
    Packing Size:L3600*W1100*H1500mm
    Video Description
    Product Overview

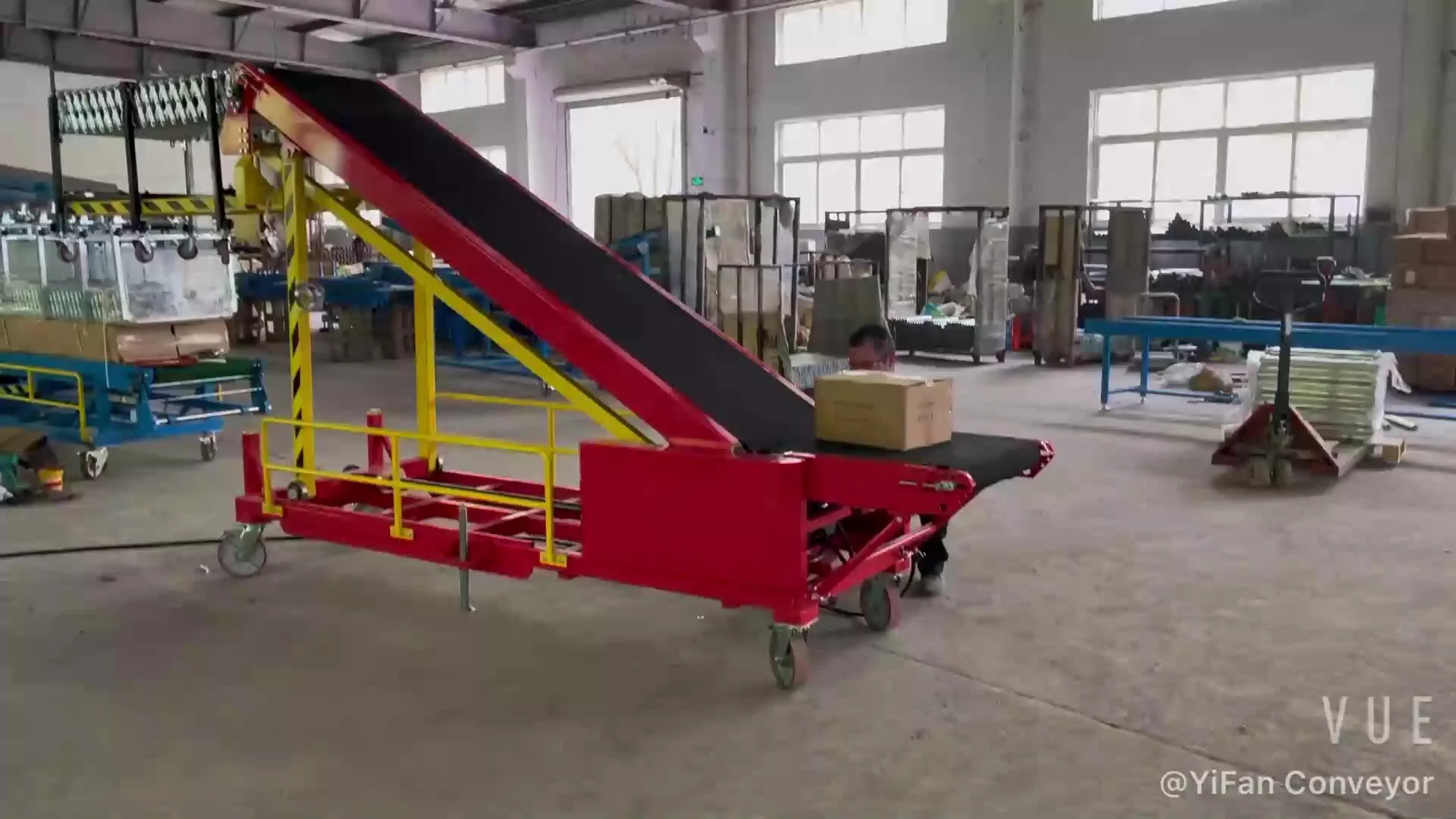

    SMALL TRUCK LOADING CONVEYOR (TLC-S600)

    Portable belt conveyor for loading portable mobile belt loading conveyor 6
    Portable belt conveyor for loading portable mobile belt loading conveyor 8
    Portable belt conveyor for loading portable mobile belt loading conveyor 10
    Portable belt conveyor for loading portable mobile belt loading conveyor 12
    Reference Drawing
    Portable belt conveyor for loading portable mobile belt loading conveyor 14
    Details Images
    Portable belt conveyor for loading portable mobile belt loading conveyor 16





    Control Panel
    Up,Down,Belt Forward,Stop,Belt Reverse,Emergency Stop,Speed Kob buttons
    Portable belt conveyor for loading portable mobile belt loading conveyor 18



    Lockable control box
    The conveyor control panle with shield cover
    Portable belt conveyor for loading portable mobile belt loading conveyor 20




    Anti-skiding PVC belt
    With 5mm thick anti-skiding black pvc belt
    Portable belt conveyor for loading portable mobile belt loading conveyor 22




    Air plug power supply
    The front flexible conveyor get power by air plug connection.
    Portable belt conveyor for loading portable mobile belt loading conveyor 24





    Removable Tongue
    The front tongue conveyor can be removed when not needed.
    Successful Project

    2012 Project In Mombasa,Kenya

    Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
    Portable belt conveyor for loading portable mobile belt loading conveyor 26
    Portable belt conveyor for loading portable mobile belt loading conveyor 28
    Portable belt conveyor for loading portable mobile belt loading conveyor 30
    Portable belt conveyor for loading portable mobile belt loading conveyor 32

    2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

    We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
    Portable belt conveyor for loading portable mobile belt loading conveyor 34
    Portable belt conveyor for loading portable mobile belt loading conveyor 36
    Portable belt conveyor for loading portable mobile belt loading conveyor 38
    Portable belt conveyor for loading portable mobile belt loading conveyor 40

    2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

    Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
    Portable belt conveyor for loading portable mobile belt loading conveyor 42
    Portable belt conveyor for loading portable mobile belt loading conveyor 44
    Portable belt conveyor for loading portable mobile belt loading conveyor 46
    Portable belt conveyor for loading portable mobile belt loading conveyor 48

    2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

    Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
    Portable belt conveyor for loading portable mobile belt loading conveyor 50
    Portable belt conveyor for loading portable mobile belt loading conveyor 52
    Portable belt conveyor for loading portable mobile belt loading conveyor 54
    Portable belt conveyor for loading portable mobile belt loading conveyor 56

    2016 Project In Kenya Cartons loading unloading container/trucks/trailers

    Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
    Portable belt conveyor for loading portable mobile belt loading conveyor 58
    Portable belt conveyor for loading portable mobile belt loading conveyor 60
    Portable belt conveyor for loading portable mobile belt loading conveyor 62
    Portable belt conveyor for loading portable mobile belt loading conveyor 64

    2016 Project In Kenya Bags stacking mobile belt conveyor

    Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
    Portable belt conveyor for loading portable mobile belt loading conveyor 66
    Portable belt conveyor for loading portable mobile belt loading conveyor 68
    Portable belt conveyor for loading portable mobile belt loading conveyor 70
    Portable belt conveyor for loading portable mobile belt loading conveyor 72
    Company Profile
    Portable belt conveyor for loading portable mobile belt loading conveyor 74
    Portable belt conveyor for loading portable mobile belt loading conveyor 76
    Portable belt conveyor for loading portable mobile belt loading conveyor 78
    Portable belt conveyor for loading portable mobile belt loading conveyor 80
    Portable belt conveyor for loading portable mobile belt loading conveyor 82
    Portable belt conveyor for loading portable mobile belt loading conveyor 84
    Over the years, Ningbo YiFan Conveyor Equipment Co.,Ltd has formed a strong R&D strength and a sound sales and service system. The specifications, load capacity, and other special functions can be customized. Ningbo YiFan Conveyor Equipment Co.,Ltd provides high-qualified conveyor manufacturer products, competitive price and excellent service to all our customers. The specifications, load capacity, and other special functions can be customized.
