YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
Online shop hot selling mobile roller conveyor machine with high quality
5.0
Start Port:
Sea freight
Payment:
1 - 1(Sets):2300(days),2 - 3(Sets):2200(days),4 - 10(Sets):2000(days),>10(Sets):Negotiable(days)
MOQ:
[{'sku_name': '100KG/m', 'sku_img': None, 'sku_id': '100005813:-2;'}]
Model:
[{'sku_name': 'motorized conveyor', 'sku_img': None, 'sku_id': '191284229:-4;'}]
Load Capacity:
[{'sku_name': 'FPR-V6-600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail
After Warranty Service:Online support, Video technical support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:1.5 KW
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Video technical support
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Gear, Motor
Weight (KG):50 kg
Extendable Length:2550-6000mm
Adjustable Height:700-1000mm
Roller:600*50mm galvanized steel roller
Roller Center Gap:Max.140mm
Motor:90W,Zhongda brand
Side Links:5mm thickness galvanized curved join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Video Description
Product Overview

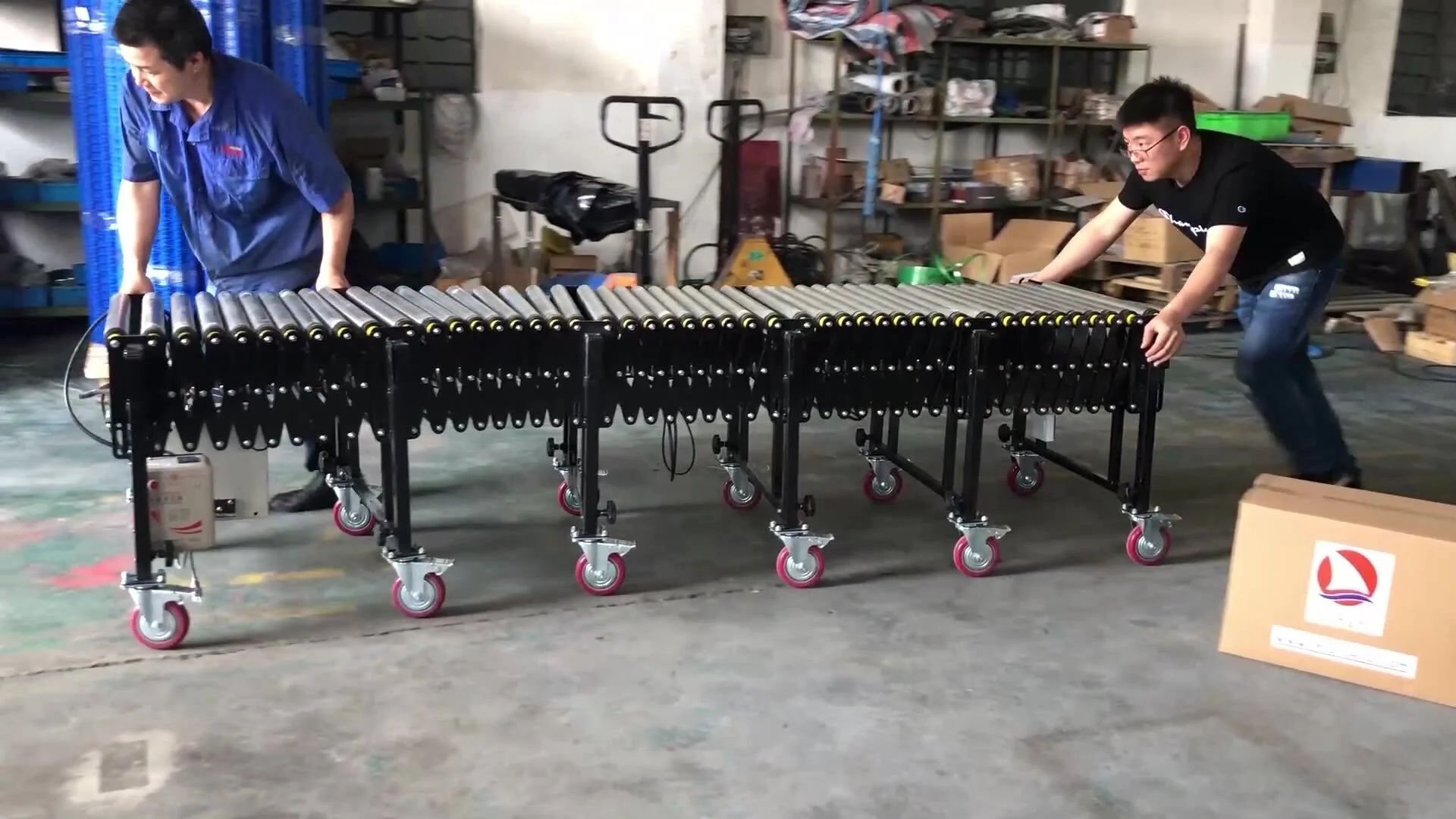

100KG LOAD V-BELT FLEXIBLE POWERED ROLLER CONVEYOR
100KG LOAD V-Belt Flexible Powered Roller Conveyor is absolutely an durable & expandable motorized roller conveyor with Max. load capacity of 100kg/m.It can be operation in two directions with adjustable speed and working height. Having enough power supply by one mini motor per meter, it is well qualified to intensively transport goods especially with flat bottom in the warehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.
Specification
Roller Width: 600mm or 800mm
Adjustable Height: 700-1000mm
Extendable Length: 2550-6000mm
Load Capacity: 100kg/m
Control Box: Forward/Stop/Reverse,Emergency Stop
Voltage: 220V,1-Phase or 380V, 3-Phase
Motor: 90W, Zhongda brand
Caster: 5" swivel lockable casters
Side Links: 5mm thickness galvanized joint plates
Close Condition
180 degree bend
90 degree bend
Model List
Model | Open Length (mm) | Close Length (mm) | Adjustable Height (mm) | Roller Width (mm) | Motor Power (w) | |||||
FPR-V6 | 6000 | 2550 | 700-1000 | 600,800 | 540 | |||||
FPR-V7.2 | 7200 | 3060 | 700-1000 | 600,800 | 630 | |||||
FPR-V8.4 | 8400 | 3570 | 700-1000 | 600,800 | 720 | |||||
FPR-V9.6 | 9600 | 4080 | 700-1000 | 600,800 | 810 | |||||
FPR-V10.8 | 10800 | 4590 | 700-1000 | 600,800 | 900 | |||||
FPR-V12 | 12000 | 5100 | 700-1000 | 600,800 | 990 | |||||
FPR-V13.2 | 13200 | 5610 | 700-1000 | 600-800 | 1080 | |||||
FPR-V14.4 | 14400 | 6120 | 700-1000 | 600-800 | 1170 | |||||
FPR-V15.6 | 15600 | 6630 | 700-1000 | 600-800 | 1260 | |||||
FPR-V16.8 | 16800 | 7140 | 700-1000 | 600-800 | 1350 | |||||
FPR-V18 | 18000 | 7650 | 700-1000 | 600-800 | 1440 | |||||
FPR-V19.2 | 19200 | 8160 | 700-1000 | 600-800 | 1530 | |||||
FPR-V20.4 | 20400 | 8670 | 700-1000 | 600-800 | 1620 | |||||
PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug. | ||||||||||
Details Images
50mm rollers driven by V belt
Control box with Fwd/Stop/Rev switch
Mobile on swivel casters with brake
Reinforced side links
Easy to take curve in warehouse
Control box with Fwd/Stop/Rev switch
Packing and Shipping
FAQ
Please feel free to contact us at sales@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
