Ningbo China Flexible Extendable Truck Loading Conveyor

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
    Power:2.2 KW
    Dimension(L*W*H):L4700*W600*H700/2500 mm
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):800 kg
    Belt Material:600mm anti-skiding green PVC belt
    Caster:6" heavy duty swivel lockable PU casters
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Packing Size:L4900*W1240*H1625mm,850KGS
    Motor Power:1.5kw,2.2kw
    Table Width:800mm
    Adjustable Speed:10-20m/min
    Loading Height:2500mm
    Discharge Height:700mm

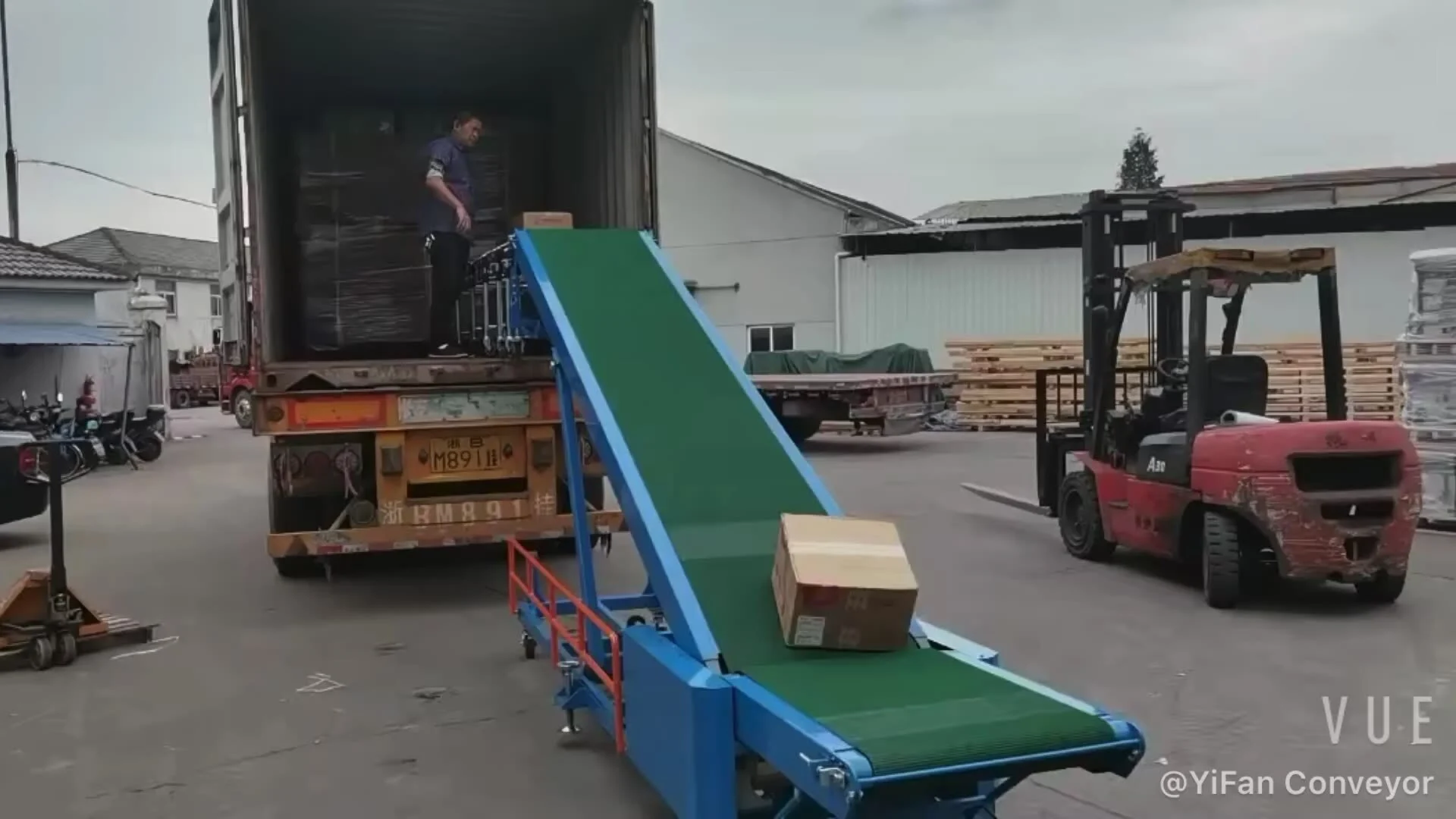

    Video Description
    Product Overview

    TLC-G600 TRUCK LOADING CONVEYOR

    Automatic trailer,van,truck,container loading and unloading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.The Truck Loading Conveyor is consist of two parts: Front Flexible Tongue and Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.
    Part 1 Inclined Belt Conveyor 700-2500mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity Part 2 6.9m extendable skate wheel conveyor 700-1000mm adjustable height 600mm effective width 40kg/m load capacity
    Ningbo China Flexible Extendable Truck Loading Conveyor 8
    Ningbo China Flexible Extendable Truck Loading Conveyor 10
    Ningbo China Flexible Extendable Truck Loading Conveyor 12
    Model List
    Model
    Belt Width
    (mm)
    L1(mm)
    L2(mm)
    L3(mm)
    L(mm)
    H1(mm)
    H2(mm)
    TLC-G600
    600
    900
    3700
    2200
    6900
    700
    700-2500
    TLC-G800
    800
    900
    3700
    2200
    6900
    700
    700-2500
    Ningbo China Flexible Extendable Truck Loading Conveyor 14
    Ningbo China Flexible Extendable Truck Loading Conveyor 16
    Details Images
    Ningbo China Flexible Extendable Truck Loading Conveyor 18
    With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
    Ningbo China Flexible Extendable Truck Loading Conveyor 20
    Control panel covered by a lockable door
    Ningbo China Flexible Extendable Truck Loading Conveyor 22
    Flexible conveyor bracket and main conveyor are joint by screws
    Ningbo China Flexible Extendable Truck Loading Conveyor 24
    Mobile on lockable swivel casters
    Ningbo China Flexible Extendable Truck Loading Conveyor 26
    Screw lift system
    Ningbo China Flexible Extendable Truck Loading Conveyor 28
    With two side guards
    Ningbo China Flexible Extendable Truck Loading Conveyor 30
    Belt tighten system
    Ningbo China Flexible Extendable Truck Loading Conveyor 32
    PVC anti-skiding belt
    Ningbo China Flexible Extendable Truck Loading Conveyor 34
    Lock the foot to be more stable when rise up
    Successful Project

    2012 Project In Mombasa,Kenya

    Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
    Ningbo China Flexible Extendable Truck Loading Conveyor 36
    Ningbo China Flexible Extendable Truck Loading Conveyor 38
    Ningbo China Flexible Extendable Truck Loading Conveyor 40
    Ningbo China Flexible Extendable Truck Loading Conveyor 42

    2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

    We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
    Ningbo China Flexible Extendable Truck Loading Conveyor 44
    Ningbo China Flexible Extendable Truck Loading Conveyor 46
    Ningbo China Flexible Extendable Truck Loading Conveyor 48
    Ningbo China Flexible Extendable Truck Loading Conveyor 50

    2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

    Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
    Ningbo China Flexible Extendable Truck Loading Conveyor 52
    Ningbo China Flexible Extendable Truck Loading Conveyor 54
    Ningbo China Flexible Extendable Truck Loading Conveyor 56
    Ningbo China Flexible Extendable Truck Loading Conveyor 58

    2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

    Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
    Ningbo China Flexible Extendable Truck Loading Conveyor 60
    Ningbo China Flexible Extendable Truck Loading Conveyor 62
    Ningbo China Flexible Extendable Truck Loading Conveyor 64
    Ningbo China Flexible Extendable Truck Loading Conveyor 66

    2016 Project In Kenya Cartons loading unloading container/trucks/trailers

    Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
    Ningbo China Flexible Extendable Truck Loading Conveyor 68
    Ningbo China Flexible Extendable Truck Loading Conveyor 70
    Ningbo China Flexible Extendable Truck Loading Conveyor 72
    Ningbo China Flexible Extendable Truck Loading Conveyor 74

    2016 Project In Kenya Bags stacking mobile belt conveyor

    Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
    Ningbo China Flexible Extendable Truck Loading Conveyor 76
    Ningbo China Flexible Extendable Truck Loading Conveyor 78
    Ningbo China Flexible Extendable Truck Loading Conveyor 80
    Ningbo China Flexible Extendable Truck Loading Conveyor 82
    Packing and Shipping
    One 20ft container can load 2nos of TLC-G600
    One 40ft container can load 4nos of TLC-G600
    Ningbo China Flexible Extendable Truck Loading Conveyor 84
    Ningbo China Flexible Extendable Truck Loading Conveyor 86
    Ningbo China Flexible Extendable Truck Loading Conveyor 88
    Ningbo China Flexible Extendable Truck Loading Conveyor 90
    Ningbo China Flexible Extendable Truck Loading Conveyor 92
    Installation Instructions
    Ningbo China Flexible Extendable Truck Loading Conveyor 94
    Ningbo China Flexible Extendable Truck Loading Conveyor 96
    Ningbo China Flexible Extendable Truck Loading Conveyor 98
    Ningbo China Flexible Extendable Truck Loading Conveyor 100
    Ningbo China Flexible Extendable Truck Loading Conveyor 102
    Ningbo China Flexible Extendable Truck Loading Conveyor 104
    Ningbo China Flexible Extendable Truck Loading Conveyor 106
    Ningbo China Flexible Extendable Truck Loading Conveyor 108
    Similar Products
    Ningbo China Flexible Extendable Truck Loading Conveyor 110
    TLC-G600
    Ningbo China Flexible Extendable Truck Loading Conveyor 112
    TLC-S600
    Ningbo China Flexible Extendable Truck Loading Conveyor 114
    TLC-F600
    Ningbo China Flexible Extendable Truck Loading Conveyor 116
    TLC-600
    Ningbo China Flexible Extendable Truck Loading Conveyor 118
    TLC-W800
    Ningbo China Flexible Extendable Truck Loading Conveyor 120
    TLC-L600
    Ningbo China Flexible Extendable Truck Loading Conveyor 122
    TLC-E600
    Ningbo China Flexible Extendable Truck Loading Conveyor 124
    TLC-600
    Ningbo China Flexible Extendable Truck Loading Conveyor 126
    CBLC-600
    Company Profile
    Ningbo China Flexible Extendable Truck Loading Conveyor 128
    Ningbo China Flexible Extendable Truck Loading Conveyor 130
    Ningbo China Flexible Extendable Truck Loading Conveyor 132
    Ningbo China Flexible Extendable Truck Loading Conveyor 134
    Ningbo China Flexible Extendable Truck Loading Conveyor 136
    FAQ

    Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

    How long is the production time?
    YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

    What is the MOQ?
    YIFAN: 1 unit

    Can your company provide OEM & ODM service
    YIFAN: yes

    Can you do customized conveyors?
    YIFAN: yes

    Do you offer installation service abroad?
    YIFAN: yes

    What is the payment terms?
    YIFAN: T/T,LC,

    What is the delivery port?
    YIFAN: Ningbo/Shanghai

    How many years have you been in this industry?
    YIFAN: 10 years

    What is the HS code?
    YIFAN: 84283300,84283920,84283990

    Is YIFAN a trading company or factory?
    YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

    Which industry can your conveyors be applied to?
    YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
    YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

    This product will finally contribute to bringing profits for manufacturers. It helps cut expenditures both in labor and energy consumption. Equipped with a PLC control, it ensures high efficiency. The product has revolutionized the method of production, increase productivity, and cut production costs, which eventually promotes economic growth. Equipped with a PLC control, it ensures high efficiency.
