New type powered conveyor flexible roller power for big loading and unloading

这里可以自定义设置
New type powered conveyor flexible roller power for big loading and unloading
B站不支持收货地址
B站不支持库存规格
Type
motorized conveyor
Load Capacity
100KG/m
Model Number
FPR-V6-600
Lead Time
1 - 1(Sets):2300(days),2 - 3(Sets):2200(days),4 - 10(Sets):2000(days),>10(Sets):Negotiable(days)
shipping
Sea freight
Customization
Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail
After Warranty Service:Online support, Video technical support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:1.5 KW
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Online support
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Gear, Motor
Weight (KG):400 kg
Extendable Length:2550-6000mm
Adjustable Height:700-1000mm
Roller:600*50mm galvanized steel roller
Roller Center Gap:Max.140mm
Motor:90W,Zhongda brand
Side Links:5mm thickness galvanized curved join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Product Overview

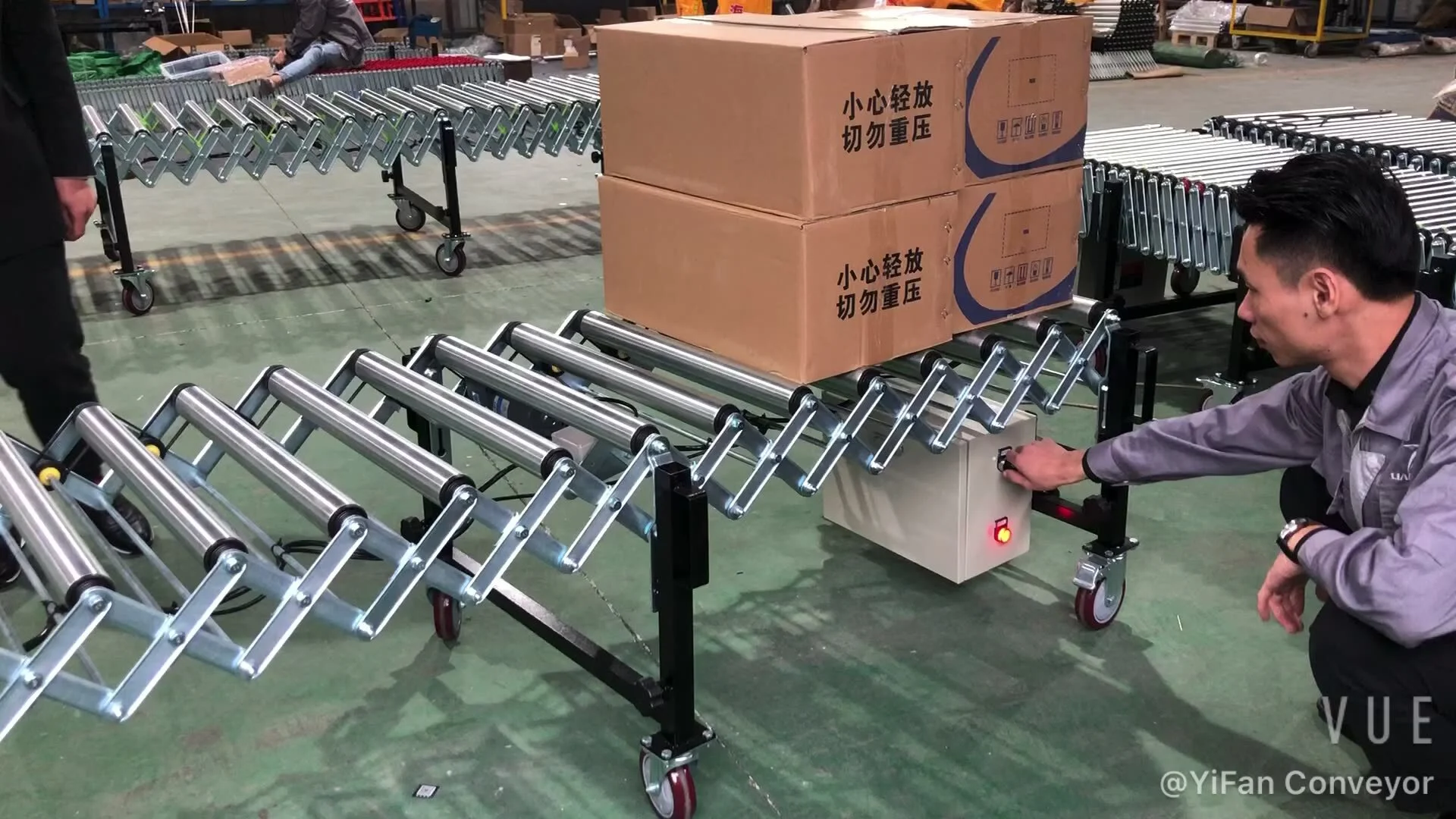

FPR-V6-600 Powered Roller Conveyor

Expandable Powered Roller Conveyor, Motorized Flexible Roller Conveyor is an popular automatic roller conveyor with adjustable speed,height & direction.It is well qualified to intensively transport cartons,cases,boxes in the warehouse , workshop,factory,harbor,dock,etc.It can also be applied as packing line,temporary conveying line and goods distribution
line.
Technical Parameters
Extendable Length
2550-6000mm
Adjustable Height
700-1000mm
Roller
600*50mm galvanized steel roller
Roller Center Gap
Max.140mm
Motor
90W,Zhongda brand
Side Links
5mm thickness galvanized curved join plates
Adjustable Legs
32*32 outer tube with 30*30 inner tube
Control Box
Forward/Stop/Reverse,Emergency Stop
Caster
5'' swivel lockable caster
Model
Open Length
(mm)
Close Length
(mm)
Width
(mm)
AdjustableHeight
(mm)
VariableSpeed
(m/min)
Max.Load
(kg/㎡)
Motor Power (w)
FPR-V4
4800
2040
600,700,800
700-1000
10-20
95
450
FPR-V6
6000
2550
600,700,800
700-1000
10-20
95
540
FPR-V7
7200
3060
600,700,800
700-1000
10-20
95
630
FPR-V8
8400
3570
600,700,800
700-1000
10-20
95
720
FPR-V9
9600
4080
600,700,800
700-1000
10-20
95
810
FPR-V10
10800
4590
600,700,800
700-1000
10-20
95
900
FPR-V12
12000
5100
600,700,800
700-1000
10-20
95
990
FPR-V13
13200
5610
600,700,800
700-1000
10-20
95
1080
FPR-V14
14400
6120
600,700,800
700-1000
10-20
95
1170
FPR-V15
15600
6630
600,700,800
700-1000
10-20
95
1260
FPR-V16
16800
7140
600,700,800
700-1000
10-20
95
1350
FPR-V18
18000
7650
600,700,800
700-1000
10-20
95
1440
FPR-V19
19200
8160
600,700,800
700-1000
10-20
95
1530
FPR-V20
20400
8670
600,700,800
700-1000
10-20
95
1620
Details Image
Control Box
Side Links
Motor

Roller

transfer bags


adjustable height

Successful Project



Company Profile
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service?
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

conveyor manufacturer are designed with high accuracy in order to meet the international quality standards. It can be widely seen in logistics, ports, docks, stations, airports, etc. Ningbo YiFan Conveyor Equipment Co.,Ltd's competitive advantage is bound up with its history and has matched to conveyor manufacturer market opportunity. It can be widely seen in logistics, ports, docks, stations, airports, etc.
