    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L6800*W800*H2500 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:800mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):700 kg
    Belt Width:800mm
    Belt Material:5mm rough top black PVC belt
    Adjustable Height:700-2500mm
    Adjustable Speed:10-20m/min
    Motor Power:0.75kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:250mm diameter nylon reinforced wheels
    Packing Size:L6800*W800*H2500 mm
    Others:With head anti-collision bar and LED Lights
    Video Description
    Product Overview

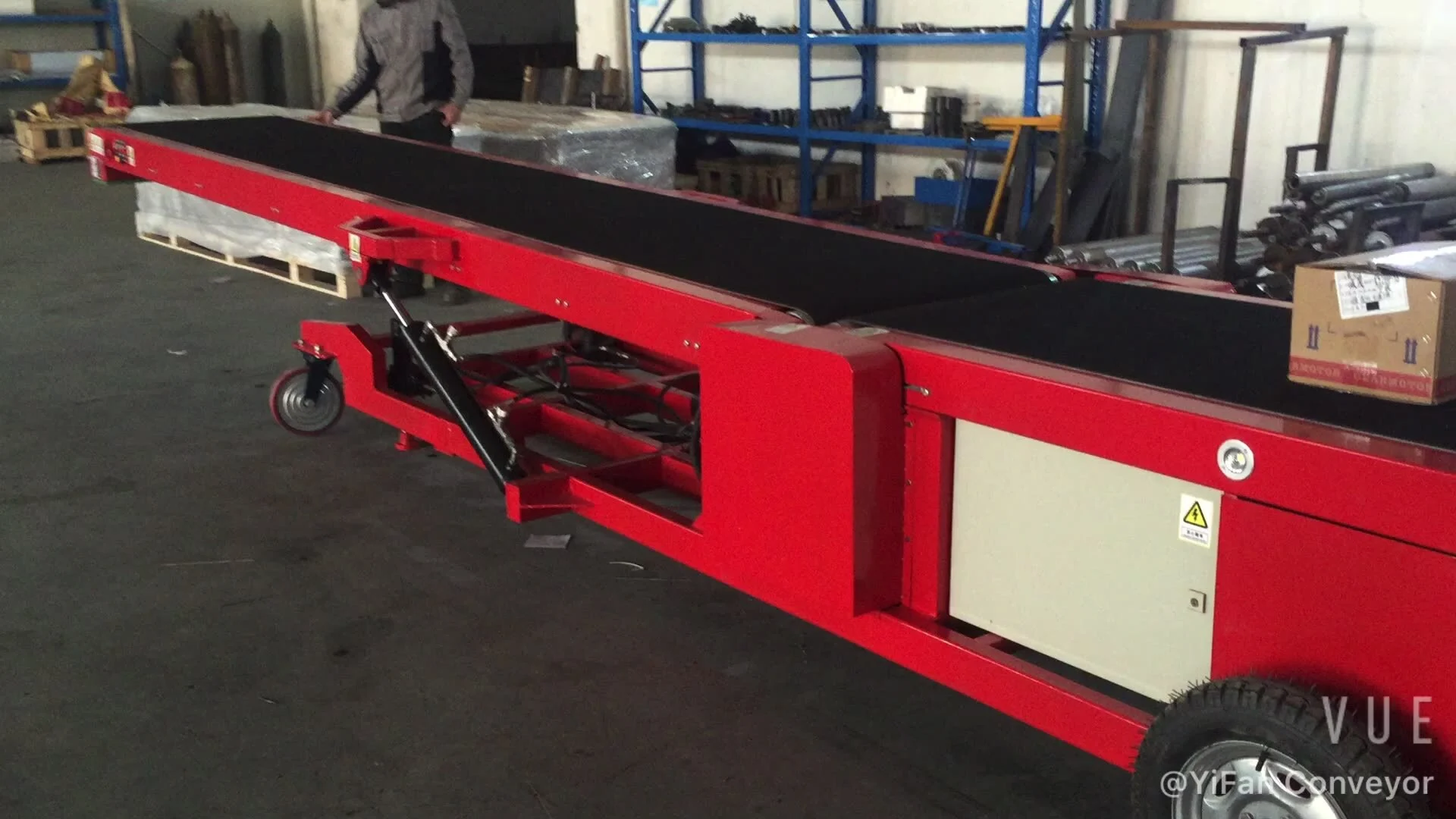

    AUTO WALKING TRUCK LOADING CONVEYOR (TLC-W800)

    YiFan loading conveyor manufacturer produces a number of different product series, including trailers/vans/trucks/containers unloading conveyor.Closely following the market trend, YiFan uses advanced production equipment and manufacturing technology to produce the truck loading and unloading conveyor. YiFan's TLC-W800 truck loading conveyor is an AUTO-WALKING loading conveyor. It is very popular to automatically load/unload goods in and out containers in warehouse without loading docks.The mechanized operation largely increases work efficiency, relieves labor intensity and also reduces cost for modern enterprises in a wide range of applications. It facilitates goods handling work and also provides advantages to advanced production, modernized management and safe operation.
    New product auto walking inclined belt conveyor system 8
    Technical Parameters
    Belt:5mm thick rough top black PVC belt Belt Driven Motor: 2.2kw, SEW Auto Walk Motor: 0.75kw, SEW Hydraulic Power Unit: 1.5kw Frequency Inverter: Delta Belt Running Speed: 10-20m/min Walking Speed: 12m/min Load Capacity: 50kg/m Frame Construction: carbon steel, paint Wheels: 250mm dia Nylon reinforced wheels With head anti-collision bar and LED Lights
    Details Image
    New product auto walking inclined belt conveyor system 10




    Main control panel
    With Load,Unload,Up,Down,Stop,Emergency Stop,Light ON/OFF
    New product auto walking inclined belt conveyor system 12





    Electric Box
    The main electric elements is installed in the control box
    New product auto walking inclined belt conveyor system 14






    Front head control panel
    Load,Unload,Up,Down,Emergency Stop
    New product auto walking inclined belt conveyor system 16





    Mobile on pneumatic tyre
    The conveyor can auto move around in the warehouse
    Successful Project
    New product auto walking inclined belt conveyor system 18
    New product auto walking inclined belt conveyor system 20
    New product auto walking inclined belt conveyor system 22
    New product auto walking inclined belt conveyor system 24
    New product auto walking inclined belt conveyor system 26
    New product auto walking inclined belt conveyor system 28
    New product auto walking inclined belt conveyor system 30
    New product auto walking inclined belt conveyor system 32
    New product auto walking inclined belt conveyor system 34
    New product auto walking inclined belt conveyor system 36
    Customer Inspection
    New product auto walking inclined belt conveyor system 38
    New product auto walking inclined belt conveyor system 40
    New product auto walking inclined belt conveyor system 42
    New product auto walking inclined belt conveyor system 44
    New product auto walking inclined belt conveyor system 46
    Company Profile
    New product auto walking inclined belt conveyor system 48
    New product auto walking inclined belt conveyor system 50
    New product auto walking inclined belt conveyor system 52
    New product auto walking inclined belt conveyor system 54
    New product auto walking inclined belt conveyor system 56
    New product auto walking inclined belt conveyor system 58
    This product can bring great relief to laborers owing to its ability to lessen pain and strain on human muscles. High-quality steel rollers ensure a smooth transfer. The chief advantage in the use of this product is the shorter period of production because of its quick-yielding power. High-quality steel rollers ensure a smooth transfer.
