    Overview
    Quick Details
    Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
    After Warranty Service:Video technical support, Online support, Spare parts
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Inclining belt Conveyor
    Place of Origin:China
    Brand Name:YiFan
    Voltage:220V/380V
    Power:2.2kw
    Dimension(L*W*H):L6800*W800*H2500 mm
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:800mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2021
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):700 kg
    Belt Width:800mm
    Belt Material:5mm rough top black PVC belt
    Adjustable Height:700-2500mm
    Adjustable Speed:10-20m/min
    Motor Power:0.75kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:250mm diameter nylon reinforced wheels
    Packing Size:L6800*W800*H2500 mm
    Others:With head anti-collision bar and LED Lights
    Video Description
    Product Overview

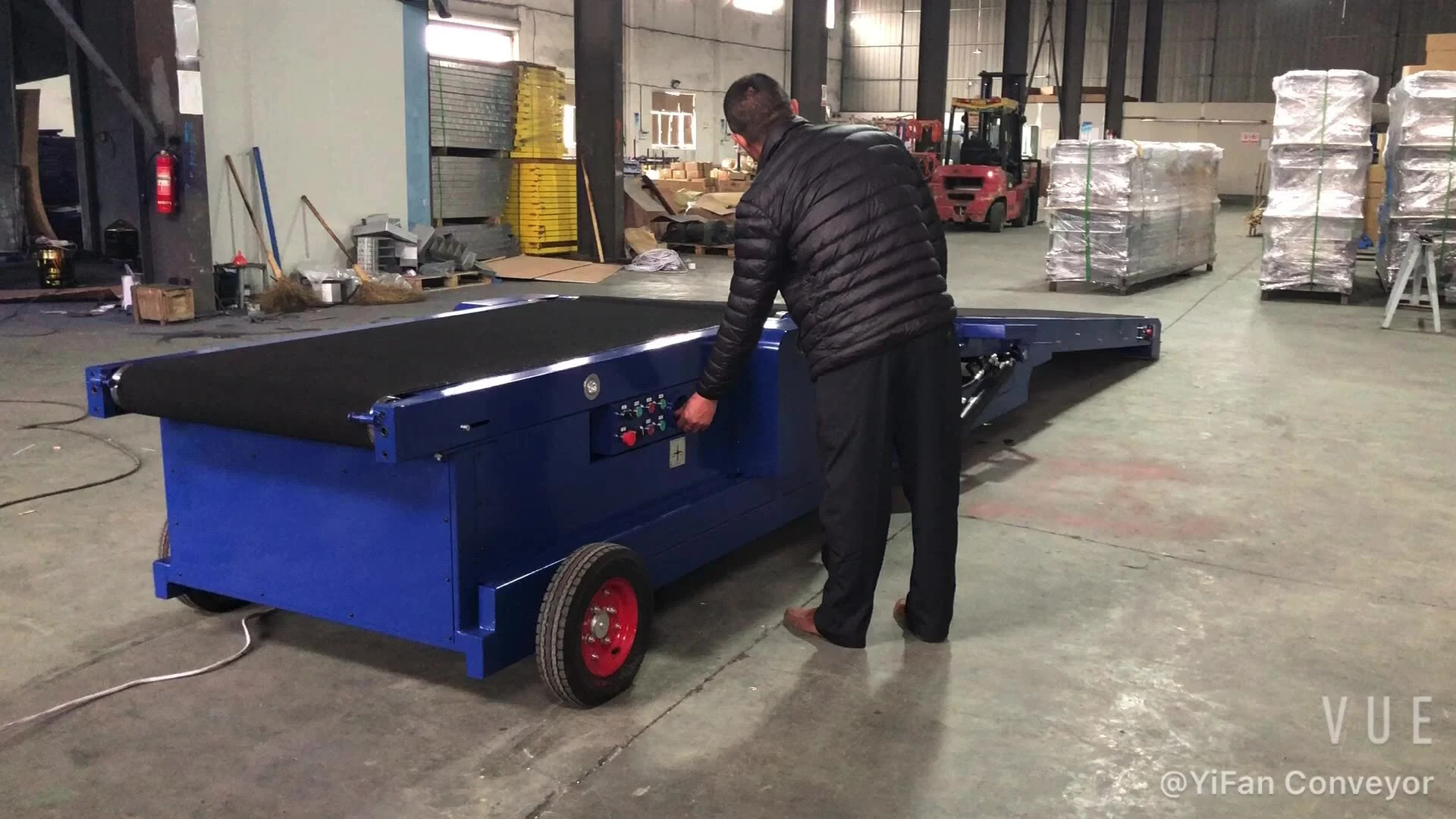

    AUTO WALKING TRUCK LOADING CONVEYOR (TLC-W800)

    YiFan loading conveyor manufacturer produces a number of different product series, including trailers/vans/trucks/containers unloading conveyor.Closely following the market trend, YiFan uses advanced production equipment and manufacturing technology to produce the truck loading and unloading conveyor. YiFan's TLC-W800 truck loading conveyor is an AUTO-WALKING loading conveyor. It is very popular to automatically load/unload goods in and out containers in warehouse without loading docks.The mechanized operation largely increases work efficiency, relieves labor intensity and also reduces cost for modern enterprises in a wide range of applications. It facilitates goods handling work and also provides advantages to advanced production, modernized management and safe operation.
    New design electric flexible extendable conveyor used for loading truck 7
    Technical Parameters
    Belt:5mm thick rough top black PVC belt Belt Driven Motor: 2.2kw, SEW Auto Walk Motor: 0.75kw, SEW Hydraulic Power Unit: 1.5kw Frequency Inverter: Delta Belt Running Speed: 10-20m/min Walking Speed: 12m/min Load Capacity: 50kg/m Frame Construction: carbon steel, paint Wheels: 250mm dia Nylon reinforced wheels With head anti-collision bar and LED Lights
    Details Image
    New design electric flexible extendable conveyor used for loading truck 9




    Main control panel
    With Load,Unload,Up,Down,Stop,Emergency Stop,Light ON/OFF
    New design electric flexible extendable conveyor used for loading truck 11






    Front head control panel
    Load,Unload,Up,Down,Emergency Stop
    New design electric flexible extendable conveyor used for loading truck 13





    Front auto stop safe bar
    The conveyor will auto stop when touch some object
    New design electric flexible extendable conveyor used for loading truck 15





    Mobile on pneumatic tyre
    The conveyor can auto move around in the warehouse
