    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Heat Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V, 220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L4700*W600*H700/2500 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2021
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Gearbox, Frequency Inverter
    Weight (KG):600 kg
    Belt Width:600mm or 800mm
    Belt Material:anti-skiding black PVC belt
    Adjustable Speed:10-20m/min
    Adjustable Height:800-1800mm
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:6" heavy duty swivel lockable PU casters
    Packing Size:L4700*W1240*H700mm

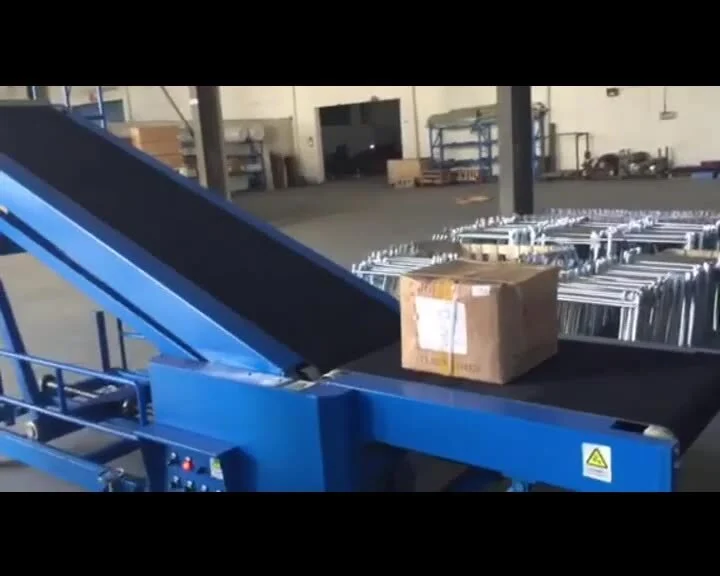

    Video Description
    Product Overview


    TRUCK LOADING CONVEYOR (TLC-L600)

    with operator standing platform
    New design bag loading conveyor for truck loading with operator standing platform 7
    New design bag loading conveyor for truck loading with operator standing platform 9
    New design bag loading conveyor for truck loading with operator standing platform 11
    New design bag loading conveyor for truck loading with operator standing platform 13
    New design bag loading conveyor for truck loading with operator standing platform 15
    Reference Drawing
    New design bag loading conveyor for truck loading with operator standing platform 17
    Details Images
    New design bag loading conveyor for truck loading with operator standing platform 19





    Control Panel
    Up,Down,Belt Forward,Stop,Belt Reverse,Emergency Stop,Speed Kob buttons
    New design bag loading conveyor for truck loading with operator standing platform 21




    Screw Lifting System
    The belt conveyor is lift up by mechnical screw lifting system.
    New design bag loading conveyor for truck loading with operator standing platform 23




    Adjustable Height
    The slave conveyor height is adjustable by hand.
    New design bag loading conveyor for truck loading with operator standing platform 25




    Auxiliary supporting foot
    Can lock the supporting foot before lifting conveyor to keep stable
    New design bag loading conveyor for truck loading with operator standing platform 27





    Mobile on wheels
    The conveyor is easy to move around.
    Successful Project

    2012 Project In Mombasa,Kenya

    Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
    New design bag loading conveyor for truck loading with operator standing platform 29
    New design bag loading conveyor for truck loading with operator standing platform 31
    New design bag loading conveyor for truck loading with operator standing platform 33
    New design bag loading conveyor for truck loading with operator standing platform 35

    2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

    We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
    New design bag loading conveyor for truck loading with operator standing platform 37
    New design bag loading conveyor for truck loading with operator standing platform 39
    New design bag loading conveyor for truck loading with operator standing platform 41
    New design bag loading conveyor for truck loading with operator standing platform 43

    2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

    Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
    New design bag loading conveyor for truck loading with operator standing platform 45
    New design bag loading conveyor for truck loading with operator standing platform 47
    New design bag loading conveyor for truck loading with operator standing platform 49
    New design bag loading conveyor for truck loading with operator standing platform 51

    2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

    Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
    New design bag loading conveyor for truck loading with operator standing platform 53
    New design bag loading conveyor for truck loading with operator standing platform 55
    New design bag loading conveyor for truck loading with operator standing platform 57
    New design bag loading conveyor for truck loading with operator standing platform 59

    2016 Project In Kenya Cartons loading unloading container/trucks/trailers

    Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
    New design bag loading conveyor for truck loading with operator standing platform 61
    New design bag loading conveyor for truck loading with operator standing platform 63
    New design bag loading conveyor for truck loading with operator standing platform 65
    New design bag loading conveyor for truck loading with operator standing platform 67

    2016 Project In Kenya Bags stacking mobile belt conveyor

    Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
    New design bag loading conveyor for truck loading with operator standing platform 69
    New design bag loading conveyor for truck loading with operator standing platform 71
    New design bag loading conveyor for truck loading with operator standing platform 73
    New design bag loading conveyor for truck loading with operator standing platform 75
