    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L6800*W800*H2500 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:800mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):50 kg
    Belt Width:800mm
    Belt Material:5mm rough top black PVC belt
    Adjustable Height:700-2500mm
    Adjustable Speed:10-20m/min
    Motor Power:0.75kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:250mm diameter nylon reinforced wheels
    Packing Size:L6800*W800*H2500 mm
    Others:With head anti-collision bar and LED Lights
    Video Description
    Product Overview

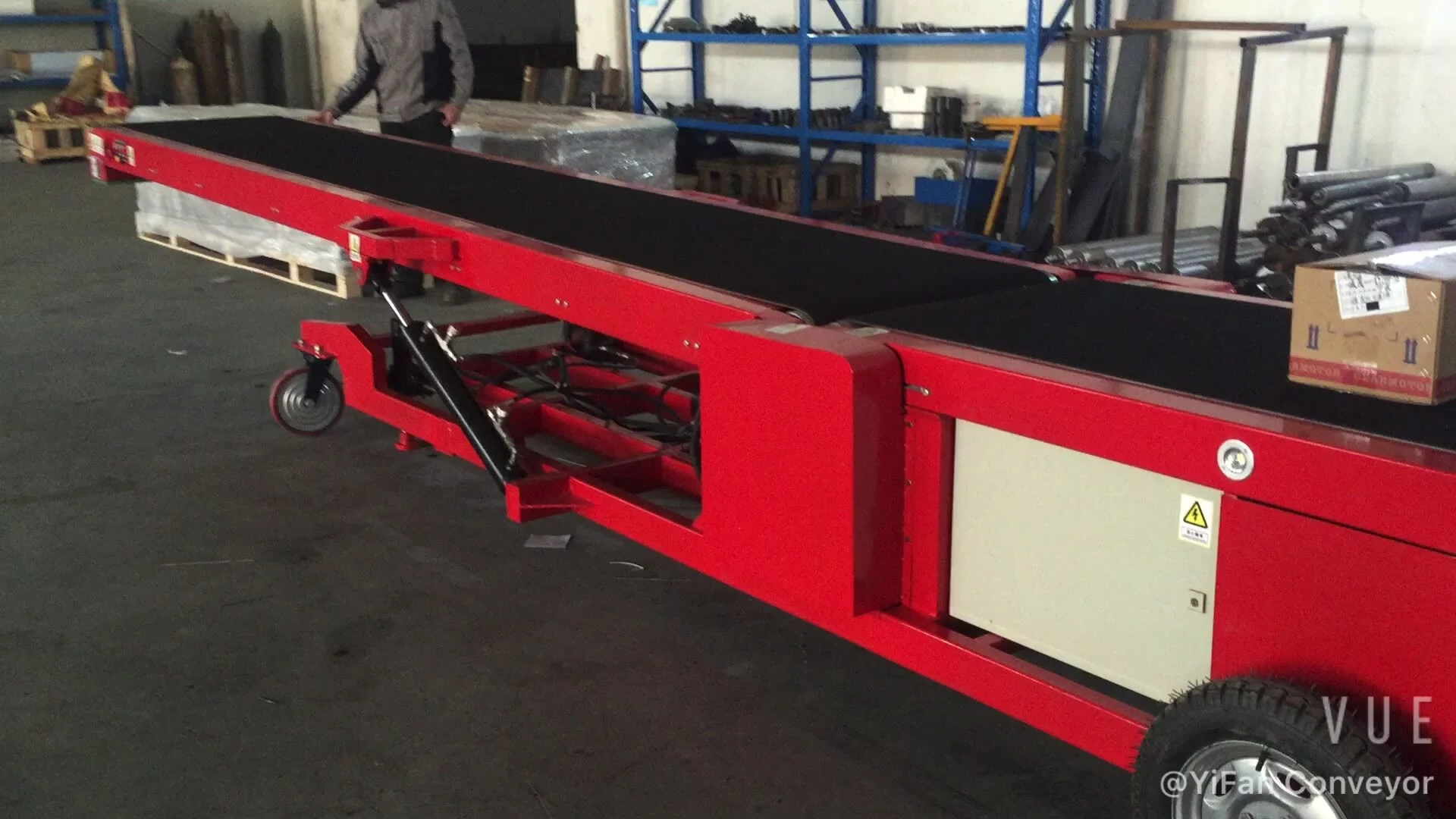

    AUTO WALKING TRUCK LOADING CONVEYOR (TLC-W800)

    YiFan loading conveyor manufacturer produces a number of different product series, including trailers/vans/trucks/containers unloading conveyor.Closely following the market trend, YiFan uses advanced production equipment and manufacturing technology to produce the truck loading and unloading conveyor. YiFan's TLC-W800 truck loading conveyor is an AUTO-WALKING loading conveyor. It is very popular to automatically load/unload goods in and out containers in warehouse without loading docks.The mechanized operation largely increases work efficiency, relieves labor intensity and also reduces cost for modern enterprises in a wide range of applications. It facilitates goods handling work and also provides advantages to advanced production, modernized management and safe operation.
    New arrival vehicle loading conveyor belt machine price 8
    Technical Parameters
    Belt:5mm thick rough top black PVC belt Belt Driven Motor: 2.2kw, SEW Auto Walk Motor: 0.75kw, SEW Hydraulic Power Unit: 1.5kw Frequency Inverter: Delta Belt Running Speed: 10-20m/min Walking Speed: 12m/min Load Capacity: 50kg/m Frame Construction: carbon steel, paint Wheels: 250mm dia Nylon reinforced wheels With head anti-collision bar and LED Lights
    Details Image
    New arrival vehicle loading conveyor belt machine price 10




    Main control panel
    With Load,Unload,Up,Down,Stop,Emergency Stop,Light ON/OFF
    New arrival vehicle loading conveyor belt machine price 12





    Electric Box
    The main electric elements is installed in the control box
    New arrival vehicle loading conveyor belt machine price 14






    Front head control panel
    Load,Unload,Up,Down,Emergency Stop
    New arrival vehicle loading conveyor belt machine price 16





    Mobile on pneumatic tyre
    The conveyor can auto move around in the warehouse
    Successful Project
    New arrival vehicle loading conveyor belt machine price 18
    New arrival vehicle loading conveyor belt machine price 20
    New arrival vehicle loading conveyor belt machine price 22
    New arrival vehicle loading conveyor belt machine price 24
    New arrival vehicle loading conveyor belt machine price 26
    New arrival vehicle loading conveyor belt machine price 28
    New arrival vehicle loading conveyor belt machine price 30
    New arrival vehicle loading conveyor belt machine price 32
    New arrival vehicle loading conveyor belt machine price 34
    New arrival vehicle loading conveyor belt machine price 36
    Customer Inspection
    New arrival vehicle loading conveyor belt machine price 38
    New arrival vehicle loading conveyor belt machine price 40
    New arrival vehicle loading conveyor belt machine price 42
    New arrival vehicle loading conveyor belt machine price 44
    New arrival vehicle loading conveyor belt machine price 46
    Company Profile
    New arrival vehicle loading conveyor belt machine price 48
    New arrival vehicle loading conveyor belt machine price 50
    New arrival vehicle loading conveyor belt machine price 52
    New arrival vehicle loading conveyor belt machine price 54
    New arrival vehicle loading conveyor belt machine price 56
    New arrival vehicle loading conveyor belt machine price 58
    This product can effectively reduce monotony. It is good at creating a healthy environment, reducing boredom and monotony for people. The product is characterized by low energy consumption. Tasks that are too heavy or too delicate for human muscles to do can be done easily by this product. The product is characterized by low energy consumption.
