Movable straight flexible gravity roller conveyor production line-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company

Showroom Location:None

Condition:New

Material:Carbon steel

Material Feature:Heat Resistant

Structure:Roller Conveyor

Place of Origin:China

Power:no power

Dimension(L*W*H):L4800*W600*H650/900 mm

Warranty:1 Year

Width or Diameter:600mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Roller

Weight (KG):200 kg

Extendable Length:1840-4800mm

Effective Width:600mm

Adjustable Height:650-900mm

Load Capacity:50kg/m

Roller Diameter:50mm

Roller Material:Galvanized Steel Rollers

Roller Center Gap:Max.125mm

Side Frame:3.5mm thickness steel plates

Supporting Legs:powder coated steel tubes

Caster:4'' swivel lockable caster

Product Overview

50KG Load Medium Duty Flexible Gravity Steel Roller Conveyor

YiFan's Medium Duty Flexible Gravity Steel Roller Conveyor is widely used in assembly or transport line,physical distribution,container stuffing,etc.It is designed especially to convey flat-bottom items like cartons.It is all-steel joint structure makes sure that it holds its integrity when extended or curved.It helps to increase work efficiency and decrease labor intensity in material handling.

Specification Effective Width: 600mm Overall Width: 800mm Adjustable Height: 650-900mm Extendable Length: 1840-4800mm Load Capacity: 50kg/m Caster: 4" swivel lockable casters Side Links: 4mm thickness powder coated join plates

Optional Side Guide Wheels

Model List

Model	Open Length (mm)	Close Length (mm)	Adjustable Height (mm)	Roller Width (mm)	Roller Dia (mm)
FGR-LZ2.4	2400	920	650-900	600/800	50
FGR-LZ3.6	3600	1380	650-900	600/800	50
FGR-LZ4.8	4800	1840	650-900	600/800	50
FGR-LZ6	6000	2300	650-900	600/800	50
FGR-LZ7.2	7200	2760	650-900	600/800	50
FGR-LZ8.4	8400	3220	650-900	600/800	50
FGR-LZ9.6	9600	3680	650-900	600/800	50
FGR-LZ10.8	10800	4140	650-900	600/800	50
FGR-LZ12	12000	4600	650-900	600/800	50
FGR-LZ13.2	13200	5060	650-900	600/800	50
FGR-LZ14.4	14400	5520	650-900	600/800	50
FGR-LZ15.6	15600	5980	650-900	600/800	50
FGR-LZ16.8	16800	6900	650-900	600/800	50
FGR-LZ18	18000	7360	650-900	600/800	50
FGR-LZ19.2	19200	7820	650-900	600/800	50
FGR-LZ20.4	20400	8280	650-900	600/800	50
PS: for conveyor length more than 8m, we will take the conveyor into two or more parts for packing.This way is more safe for shipment and also help save spaces.

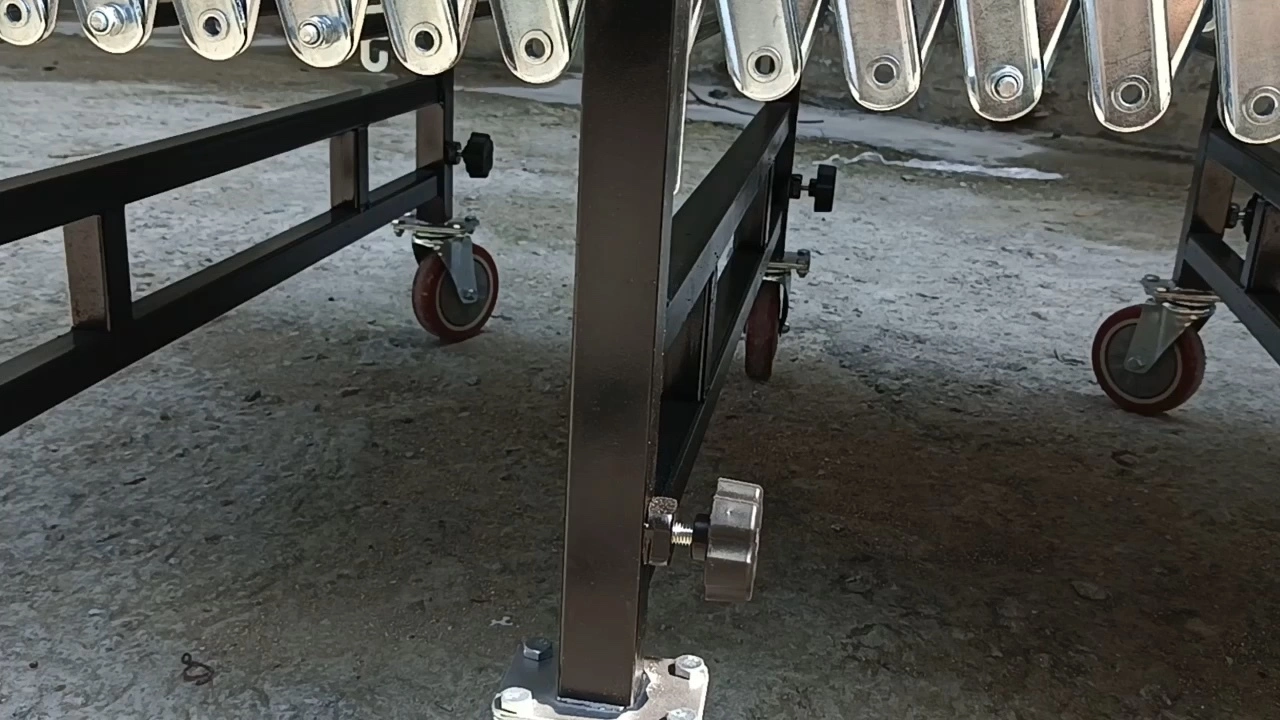

Details Images

Packing and Shipping

Take off the supporting legs first

Pack the leg kits in a separately cartons

Put the screws, spacers and handles in a small hardware cartons

Lay the conveyor roller surface one by one on the pallet.

Wrap with buble film and fixed well by bandages.

How to choose flexible conveyor model?

● The flexible roller conveyors have a bigger load capacity than the standard flexible skate wheel conveyor.
● Withthe same length,width,height,the standard flexible skate wheel conveyor is more economical than gravity roller units and makes the goods moves smoother.
● Double roller conveyor type makes the goods move smoother and more fluent than the single roller type.
● Any items with an uneven or open buttom,or with a rim on the bottom should be transported on rollers.
● Conveyed items can be wider than the conveyor.Extra wide items like plywood or sheet materials can be moved if carefully centered.
● Typically,3 rollers or 3 skate wheel lines must be beneath the load at any particular time for easy rolling.

Flexible Powered Roller Conveyor-V belt

Flexible Gravity Steel Roller Conveyor

Flexible Steel Skate Wheel Conveyor

Flexible Powered Roller Conveyor-O belt

Flexible Double PVC Roller Conveyor

Flexible Plastic Skate Wheel Conveyor

Company Profile

FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
