YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.

portable expandable gravity roller conveyor with side guide wheels1 1

portable expandable gravity roller conveyor with side guide wheels1 2

portable expandable gravity roller conveyor with side guide wheels1 3

portable expandable gravity roller conveyor with side guide wheels1 4

portable expandable gravity roller conveyor with side guide wheels1 5

portable expandable gravity roller conveyor with side guide wheels1

Start Port:

Sea freight

MOQ:

[{'sku_name': '100KG/m', 'sku_img': None, 'sku_id': '100005813:-2;'}]

Model:

[{'sku_name': 'Gravity Conveyor', 'sku_img': None, 'sku_id': '191284229:1875817515;'}, {'sku_name': 'Roller Conveyor', 'sku_img': None, 'sku_id': '191284229:-3;'}]

Load Capacity:

[{'sku_name': 'FGR-H6-600', 'sku_img': None, 'sku_id': '3:-1;'}]

Lead_Time:

1 - 10(Sets):15(days),>10(Sets):Negotiable(days)

Certification:

Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)

Inquiry

Write a Review

Overview

Quick Details

Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Manufacturing Plant, Other, Retail, Hotels, Building Material Shops, Machinery Repair Shops, Farms, Restaurant, Home Use, Printing Shops, Construction works , Energy & Mining

Showroom Location:None

Condition:New

Material:Carbon steel

Material Feature:Fire Resistant

Structure:Roller Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Voltage:no power

Power:Other

Dimension(L*W*H):L6000*W600*H700/1000 mm

Warranty:1 Year

Width or Diameter:600mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Ordinary Product

Warranty of core components:1 Year

Core Components:Other

Weight (KG):300 kg

Extendable Length:2550-6000mm

Roller Width:600mm

Adjustable Height:700-1000mm

Roller Diameter:50mm

Roller Center Gap:Max.140mm

Load Capacity:100kg/m

Roller Material:galvanized steel roller

Side Links:5mm thickness galvanized curved join plates

Supporting Legs:32*32 outer tube with 30*30 inner tube

Caster:5'' swivel lockable caster

After Warranty Service:Online support, Video technical support

Local Service Location:None

After-sales Service Provided:Free spare parts

Product Overview

Extendable Gravity Unloading Roller Conveyor with side guide wheels

YiFan's Heavy Duty Flexible Gravity Steel Roller Conveyor is an robust type with load capacity of 100KG per meter.It can be expanded if you require a longer system or bent into curves or even compacted for better storage when not in use.Whats more,this conveyor is very easy to quick manoeuvre in or out of trucks for faster,safer,easier loading and unloading materials.

Specification Roller Width: 600mm,800mm,1000mm Adjustable Height: 700-1000mm Extendable Length: 2550-6000mm Load Capacity: 100kg/m Roller Diameter: 50mm Caster: 5" swivel lockable casters Side Links: 5mm thickness galvanized joint plates

Model List

Model	Open Length (mm)	Close Length (mm)	Adjustable Height (mm)	Roller Width (mm)
FGR-H2.4	2400	1020	700-1000	600,800,1000
FGR-H3.6	3600	1530	700-1000	600,800,1000
FGR-H4.8	4800	2040	700-1000	600,800,1000
FGR-H6	6000	2550	700-1000	600,800,1000
FGR-H7.2	7200	3060	700-1000	600,800,1000
FGR-H8.4	8400	3570	700-1000	600,800,1000
FGR-H9.6	9600	4080	700-1000	600,800,1000
FGR-H10.8	10800	4590	700-1000	600,800,1000
FGR-H12	12000	5100	700-1000	600,800,1000

Details Images

50mm galvanized steel rollers

Double H shape reinforced legs

Mobile on swivel casters with brake

With handle to help move the conveyor around

Optional two side guide wheels

Side guide wheels can be removed when not need

Conveyor in close condition

Close the conveyor to save space

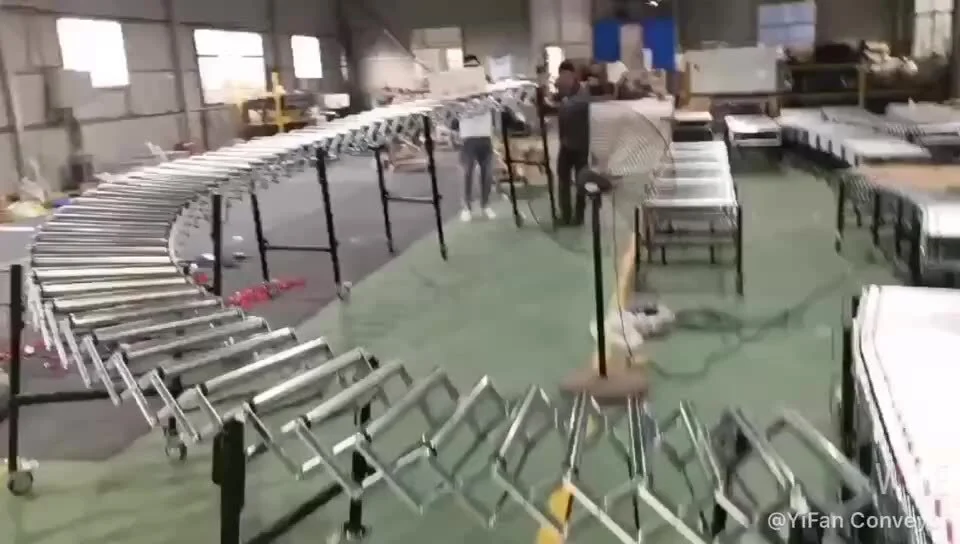

Easy to take curve

Company Profile

FAQ

Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
