    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Heat Resistant
    Structure:Roller Conveyor
    Place of Origin:China
    Power:no power
    Dimension(L*W*H):L4800*W600*H650/900 mm
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Roller
    Extendable Length:1840-4800mm
    Effective Width:600mm
    Adjustable Height:650-900mm
    Load Capacity:50kg/m
    Roller Diameter:50mm
    Roller Material:Galvanized Steel Rollers
    Roller Center Gap:Max.125mm
    Side Frame:3.5mm thickness steel plates
    Supporting Legs:powder coated steel tubes
    Caster:4'' swivel lockable caster
    Product Overview

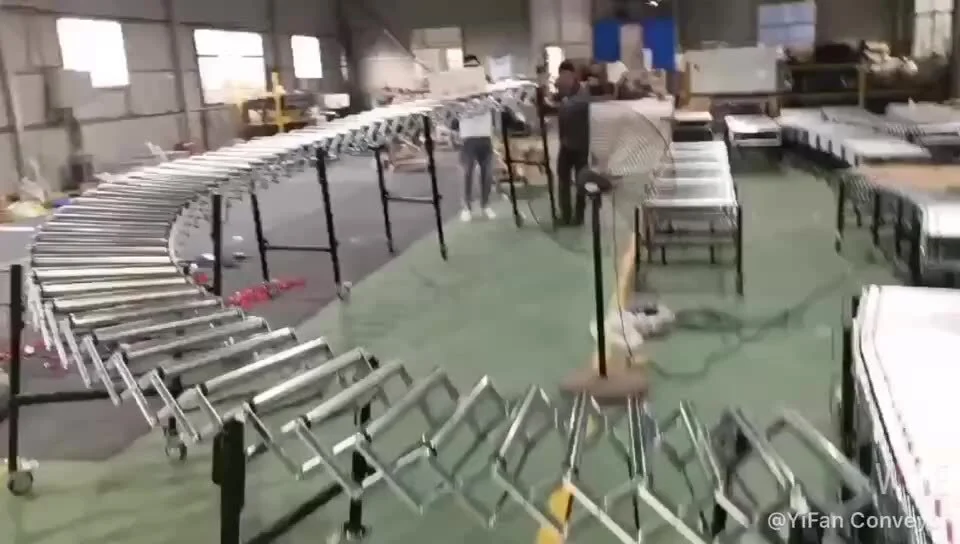

    50KG Load Medium Duty Flexible Gravity Steel Roller Conveyor

    YiFan's Medium Duty Flexible Gravity Steel Roller Conveyor is widely used in assembly or transport line,physical distribution,container stuffing,etc.It is designed especially to convey flat-bottom items like cartons.It is all-steel joint structure makes sure that it holds its integrity when extended or curved.It helps to increase work efficiency and decrease labor intensity in material handling.
    Movable straight flexible gravity roller conveyor production line 7
    Specification Effective Width: 600mm Overall Width: 800mm Adjustable Height: 650-900mm Extendable Length: 1840-4800mm Load Capacity: 50kg/m Caster: 4" swivel lockable casters Side Links: 4mm thickness powder coated join plates
    Model List
    Model
    Open Length
    (mm)
    Close Length
    (mm)
    Adjustable Height
    (mm)
    Roller Width
    (mm)
    Roller Dia
    (mm)
    FGR-LZ2.4
    2400
    920
    650-900
    600/800
    50
    FGR-LZ3.6
    3600
    1380
    650-900
    600/800
    50
    FGR-M4.8
    4800
    1840
    650-900
    600/800
    50
    FGR-LZ6
    6000
    2300
    650-900
    600/800
    50
    FGR-LZ7.2
    7200
    2760
    650-900
    600/800
    50
    FGR-LZ8.4
    8400
    3220
    650-900
    600/800
    50
    FGR-LZ9.6
    9600
    3680
    650-900
    600/800
    50
    FGR-LZ10.8
    10800
    4140
    650-900
    600/800
    50
    FGR-LZ12
    12000
    4600
    650-900
    600/800
    50
    FGR-LZ13.2
    13200
    5060
    650-900
    600/800
    50
    FGR-LZ14.4
    14400
    5520
    650-900
    600/800
    50
    FGR-LZ15.6
    15600
    5980
    650-900
    600/800
    50
    FGR-LZ16.8
    16800
    6900
    650-900
    600/800
    50
    FGR-LZ18
    18000
    7360
    650-900
    600/800
    50
    FGR-LZ19.2
    19200
    7820
    650-900
    600/800
    50
    FGR-LZ20.4
    20400
    8280
    650-900
    600/800
    50
    PS: for conveyor length more than 8m, we will take the conveyor into two or more parts for packing.This way is more safe for shipment and also help save spaces.
    Details Images
    Movable straight flexible gravity roller conveyor production line 9
    Movable straight flexible gravity roller conveyor production line 11
    Movable straight flexible gravity roller conveyor production line 13
    Movable straight flexible gravity roller conveyor production line 17
    Flexible Gravity Steel Roller Conveyor
    Movable straight flexible gravity roller conveyor production line 19
    Flexible Steel Skate Wheel Conveyor
    Movable straight flexible gravity roller conveyor production line 21
    Flexible Powered Roller Conveyor-O belt
    Movable straight flexible gravity roller conveyor production line 23
    Flexible Double PVC Roller Conveyor
    Movable straight flexible gravity roller conveyor production line 25
    Flexible Plastic Skate Wheel Conveyor
    Packing and Shipping
    Movable straight flexible gravity roller conveyor production line 27
    Take off the supporting legs first
    Movable straight flexible gravity roller conveyor production line 29
    Pack the leg kits in a separately cartons
    Movable straight flexible gravity roller conveyor production line 31
    Put the screws, spacers and handles in a small hardware cartons
    Movable straight flexible gravity roller conveyor production line 33
    Lay the conveyor roller surface one by one on the pallet.
    Movable straight flexible gravity roller conveyor production line 35
    Wrap with buble film and fixed well by bandages.
    FAQ

    Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

    How long is the production time?
    YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

    What is the MOQ?
    YIFAN: 1 unit

    Can your company provide OEM & ODM service
    YIFAN: yes

    Can you do customized conveyors?
    YIFAN: yes

    Do you offer installation service abroad?
    YIFAN: yes

    What is the payment terms?
    YIFAN: T/T,LC,

    What is the delivery port?
    YIFAN: Ningbo/Shanghai

    How many years have you been in this industry?
    YIFAN: 10 years

    What is the HS code?
    YIFAN: 84283300,84283920,84283990

    Is YIFAN a trading company or factory?
    YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

    Which industry can your conveyors be applied to?
    YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
    YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

    Movable straight flexible gravity roller conveyor production line 37
    Movable straight flexible gravity roller conveyor production line 39
    Movable straight flexible gravity roller conveyor production line 41
    Movable straight flexible gravity roller conveyor production line 43
    The products are available in different grades and qualities to meet a variety of uses and requirements. With a high-quality powder coat finish, the product won't fade easily. The product is highly welcomed by customers for its huge profits and benefits. With a high-quality powder coat finish, the product won't fade easily.
