Motorised Expandable Roller Conveyors for conveying drums, cartons, fibre drums and sacks
5.0
Start Port:
Sea freight
Payment:
1 - 20(Sets):15(days),>20(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG/m', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'FPR-O', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 5 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:750W
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Frequency Inverter
Roller:600*50mm galvanized steel roller
Roller Center Gap:Max.130mm
Motor:90W,Zhongda brand
Side Links:3.5mm thickness galvanized curved join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Adjustable Height:700-1000mm
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Extendable Length:2300-6000mm
Video Description
Product Overview

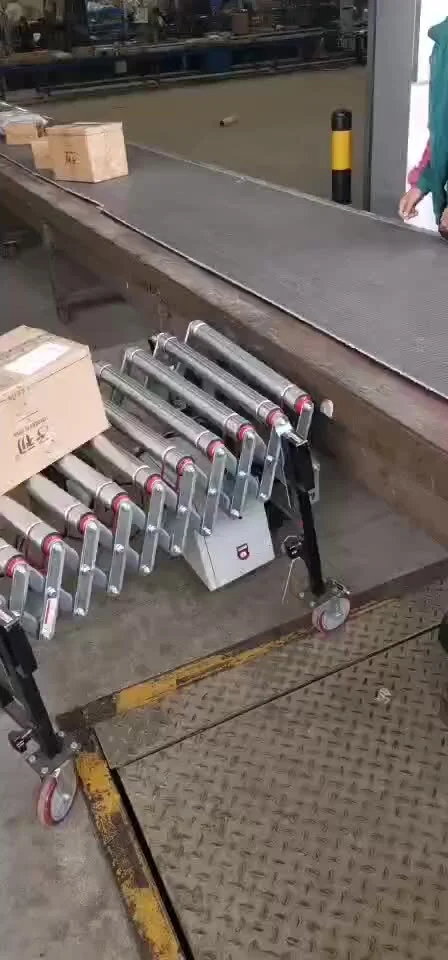

50KG LOAD O-BELT FLEXIBLE POWERED ROLLER CONVEYOR
50KG Load O-belt Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height.Having enough power supply by one mini motor per section, it is well qualified to internsively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,docks,etc.
Specification
Roller Width: 600mm or 800mm
Adjustable Height: 700-1000mm
Extendable Length: 2300-6000mm
Load Capacity: 50kg/m
Control Box: Forward/Stop/Reverse,Emergency Stop
Voltage: 220V,1-Phase or 380V, 3-Phase
Motor: 90W, Zhongda brand
Caster: 5" swivel lockable casters
Side Links: 3.5mm thickness galvanized curved join plates
Close Condition
Combine with belt conveyor
Connect to loading conveyor
Model List
Model | Open Length (mm) | Close Length (mm) | Adjustable Height (mm) | Roller Width (mm) | Motor Power (w) | |||||
FPR-O6 | 6000 | 2300 | 700-1000 | 600,800 | 450 | |||||
FPR-O7.2 | 7200 | 2760 | 700-1000 | 600,800 | 540 | |||||
FPR-O8.4 | 8400 | 3220 | 700-1000 | 600,800 | 630 | |||||
FPR-O9.6 | 9600 | 3680 | 700-1000 | 600,800 | 720 | |||||
FPR-O10.8 | 10800 | 4140 | 700-1000 | 600,800 | 810 | |||||
FPR-O12 | 12000 | 4600 | 700-1000 | 600,800 | 900 | |||||
FPR-O13.2 | 13200 | 5060 | 700-1000 | 600,800 | 990 | |||||
FPR-O14.4 | 14400 | 5520 | 700-1000 | 600,800 | 1080 | |||||
FPR-O15.6 | 15600 | 5980 | 700-1000 | 600,800 | 1170 | |||||
FPR-O16.8 | 16800 | 6440 | 700-1000 | 600,800 | 1260 | |||||
FPR-O18 | 18000 | 6500 | 700-1000 | 600,800 | 1350 | |||||
FPR-O19.2 | 19200 | 6960 | 700-1000 | 600,800 | 1440 | |||||
FPR-O20.4 | 20400 | 7420 | 700-1000 | 600,800 | 1530 | |||||
PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug. | ||||||||||
Details Images
90W Zhongda motor
Control box with Fwd/Stop/Rev switch
Speed is adjustable by frequency inverter
Mobile on 5" swivel casters
50mm galvanized steel rollers driven by O belt
Conveyor height adjustable from 700mm to 1000mm
Easy to take a 180 degree curve
3.5mm thick reinforced side links
With handle on the legs to help move the conveyor around
Application
Packing and Shipping
How to choose YiFan's FPR ?
Other Options
We can provide various kinds of flexible powered roller conveyor with different rollers material and structure
FPR-O with rubber coated rollers
FPR-O with PU coated rollers
FPR-RV with rubber coated rollers
FPR-O with side guide wheels
FPR-O with side stainless steel 201 rollers
FPR-O with stainless steel 304 rollers
How to joint 2 or more units together
Two or more YiFan's flexible powered roller conveyor can joint together quickly and easily by hoos and air plug
Company Profile
FAQ
Please feel free to contact us at sales@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
The product enjoys a good reputation in the international market and a broad application prospect in industry. Equipped with a PLC control, it ensures high efficiency.
Our quality products have a large reputation in the market. Equipped with a PLC control, it ensures high efficiency.
